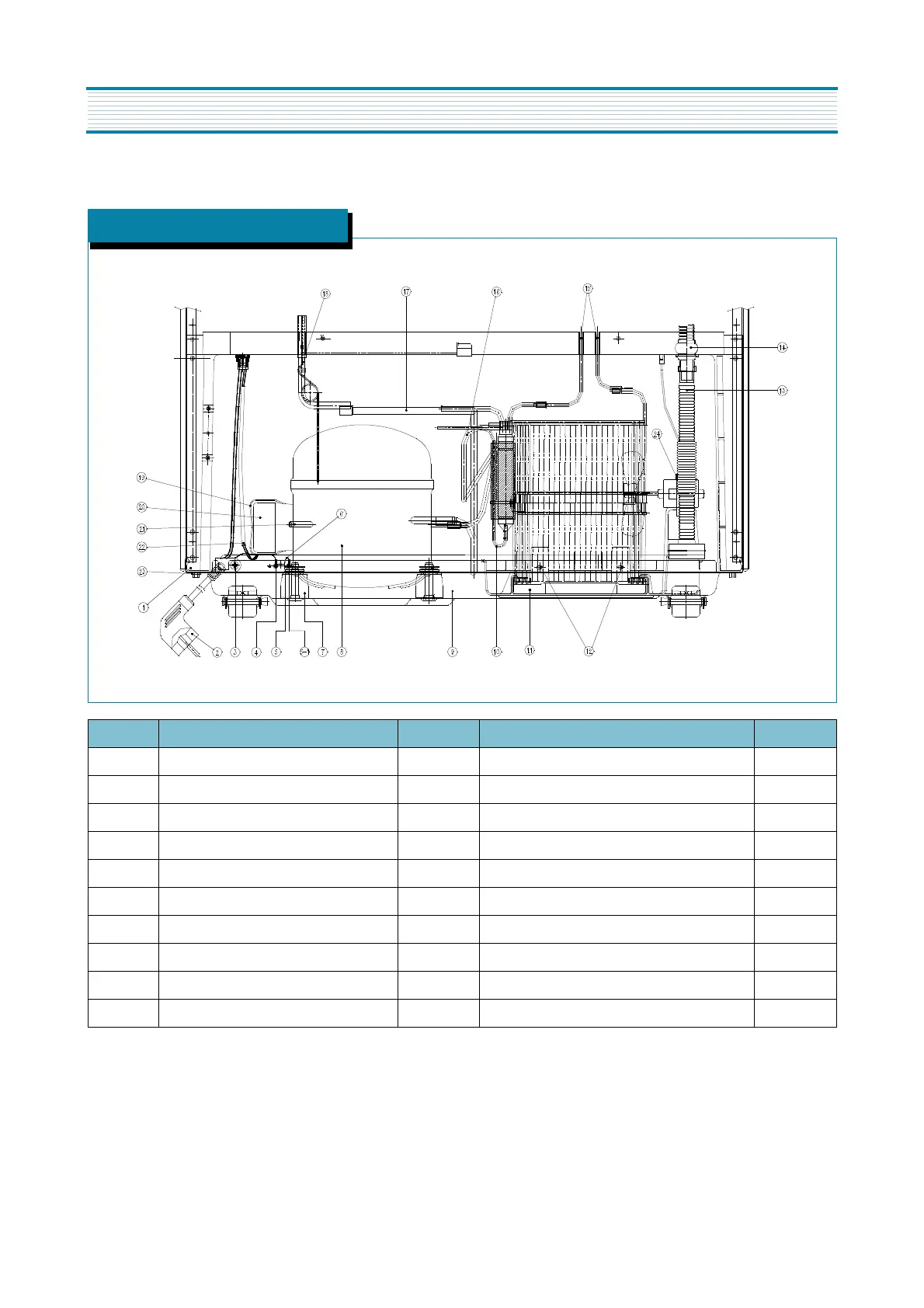

3. MACHINE ROOM EXPLODED VIEW AND PARTS LIST
NO PART NAME NO PART NAME NO
1 BASE CAB 10 DRYER AS 20
2 CORD POWER 11 CASE VAPORI AS 21
3 SCREW TAPPING 12 SCREW TAPPING 22
4 SCREW MACHINE 13 HOSE DRN A 23
5 WASHER TOOTH 14 HOSE DRN B
5-1 SCREW MACHINE 15 PIPE HOT
6 HARNESS EARTH 16 PIPE CONN A
7 ABSORBER COMP 17 PIPE SUC CONN
8 COMPRESSOR 18 PIPE SUCTION AS
9 BASE COMP 19 BAND RELAY
FOR FR-4501N, FR-4502N, FR-4503N
EXPLODED VIEW AND PARTS LIST
