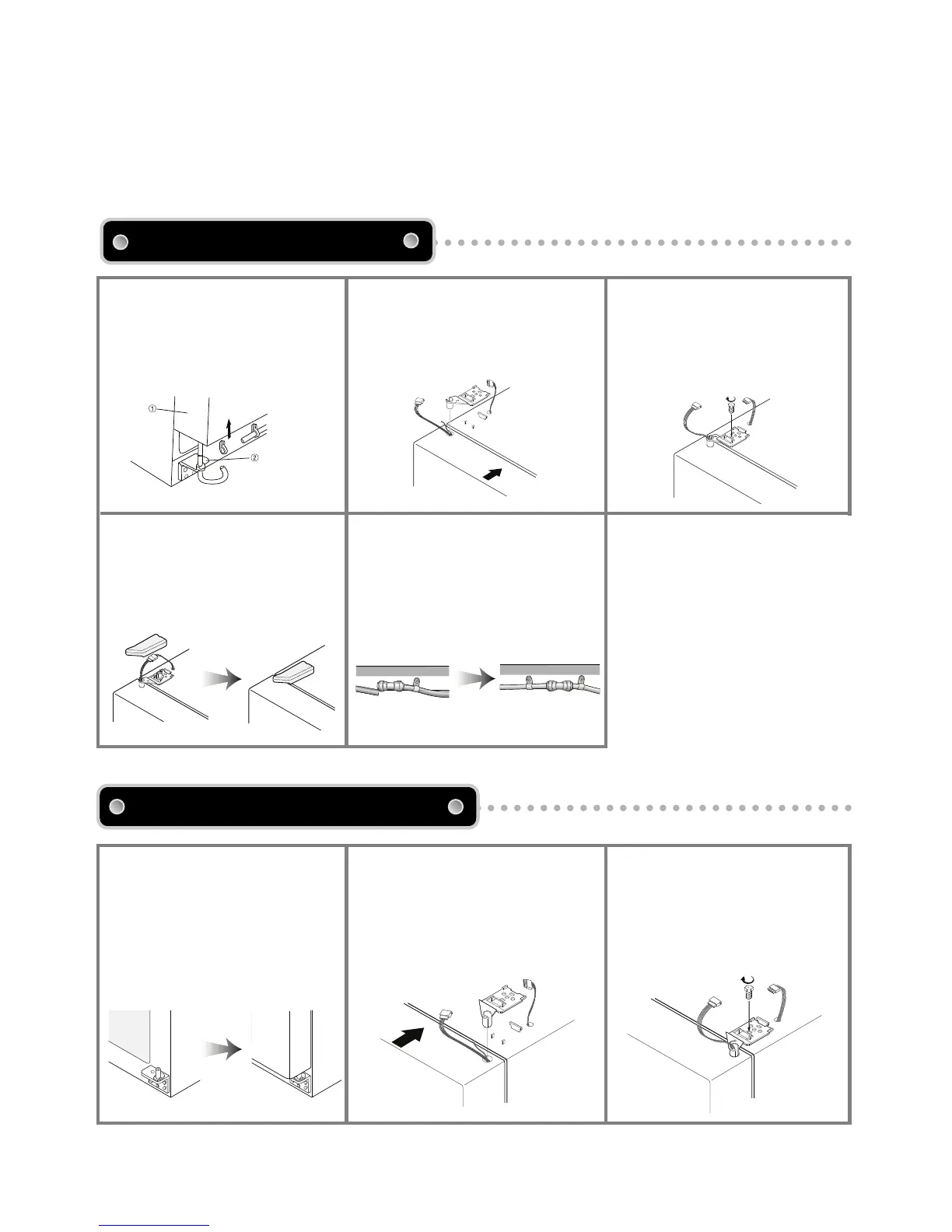

Replacing Freezer Door
2
Insert the bottom hole of freezer door
straight to the bottom hinge pin.
1
Insert the water tube into the hole of the
bottom hinge pin first (Dispenser
Models Only). Insert the bottom of
freezer door into the bottom hinge pin.
3
Let the top of door close to the
cabinet and insert the top hinge pin
to the top hole of freezer door.
( Insert the back of hinge to the
groove of protrusion first, then front
to the top hole of door.)
4
Turn the hinge fastener tightly to the
end.
Connect harness wirings and screw
ground wire.
5
Insert the water tube far into the
coupling.
(Dispenser Models Only)
2
Let the top of door close to the
cabinet and insert the top hinge pin to
the top hole of freezer door.
( Insert the back of hinge to the
groove of protrusion first, then front
to the top hole of door.)
1
Insert the bottom hole of refrigerator
door straight to the bottom hinge pin
3
Turn the hinge fastener tightly to the
end.
Connect harness wirings and screw
ground wire.
Click and screw the top hinge cover.
Replacing Refrigerator Door
!
!
@
!
!
@
