G424 Service Manual Base Engine Service Procedure151
6EN0746
6EN0747
6EN0564
6EN0565

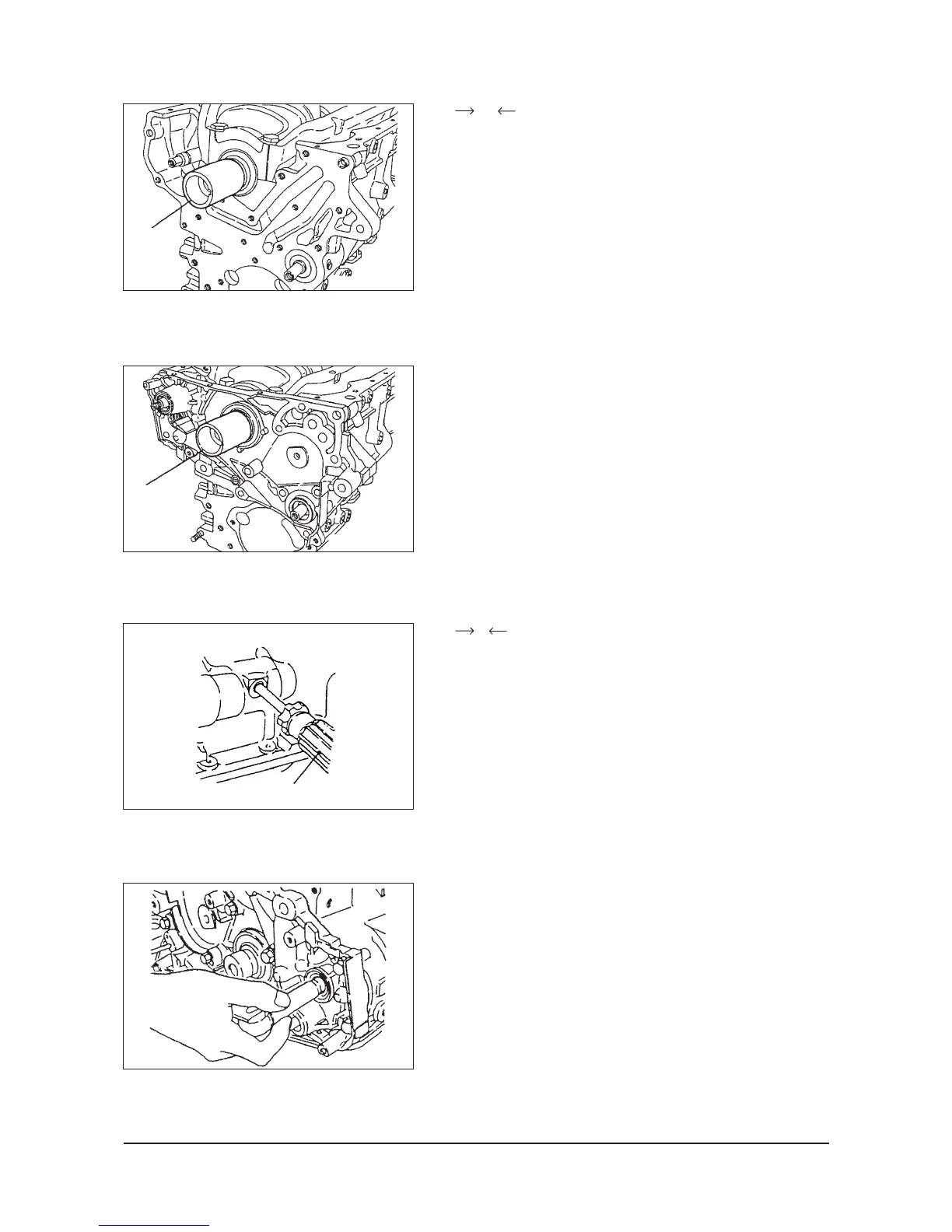

H Front case installation
(1) Set the special tool on the front end of the crankshaft
and apply a thin coat of engine oil to the outer
circumference of the special tool to install the front case.
(2) Install the front case assembly through a new front case
gasket and temporarily tighten the flange bolts(other
than those for tightening the filter bracket).
I Flange bolt installation
(1) Insert a Phillips screwdriver into a hole in the left side of
the cylinder block to lock the counterbalance shaft.
(2) Secure the oil pump driven gear onto the left
counterbalance shaft by tightening the flange bolt to
specified torque.
MD998285
MD998285
Screw driver
To Next Page
