G424 Service Manual Base Engine Service Procedure152
6EN0909
6EN0213
6EN0449
7EN0179

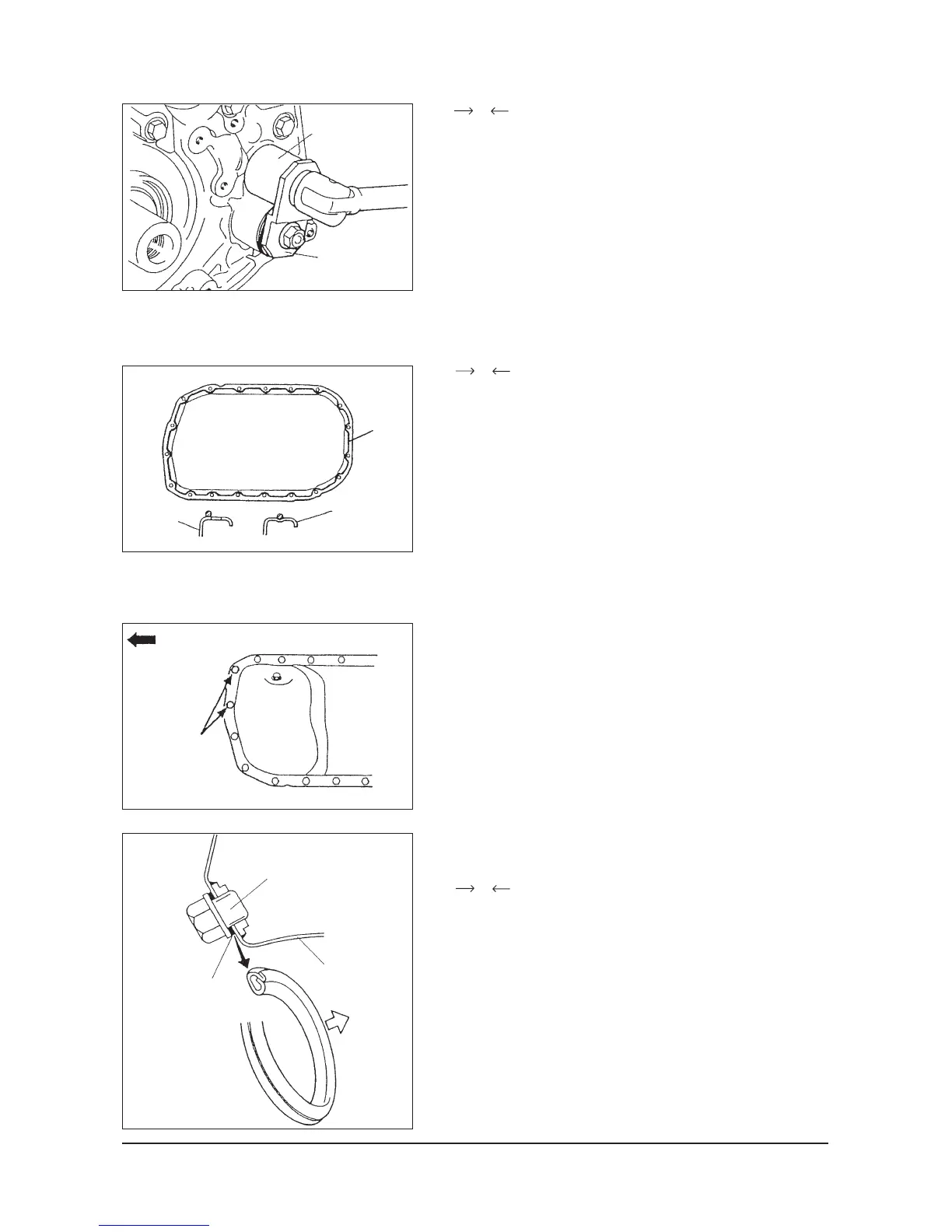

J Plug installation
(1) Install a new o-ring to the groove of the front case.
(2) Install a plug to the front case.
(3) Fit the special tool MD998162 on the plug, and then
hold in position with special tool MD998783.
(4) Tighten the plug to the special tool MD998783.
(5) Remove the special tools MD998783 and MD998162.
K Oil pan installation
(1) Clean both mating surface of the oil pan and cylinder
block.
(2) Apply a 4 mm (0.16 in.) wide bead of FIPG to the entire
circumference of the oil pan flange. The oil pan should
be installed in 15 minutes after the application of FIPG.
Specified FIPG: 3M
TM
AAD Part No.8672 or equivalent
(3) Note the difference in bolt lengths at the location shown.
L Drain plug gasket installation
(1) Install the drain plug gasket in the direction shown.
Caution: Fitting the gasket in a wrong way will result in oil
leakage.
MD998162
MD998783
FIPG
Groove
portion
Crank pulley side
8mm bolts
Oil pan viewed from lower side
Oil pan side
Oil seal
Drain plug
Gasket
Bolt hole
portion
