Daewoo KOC-9Q4T Service Manual

26

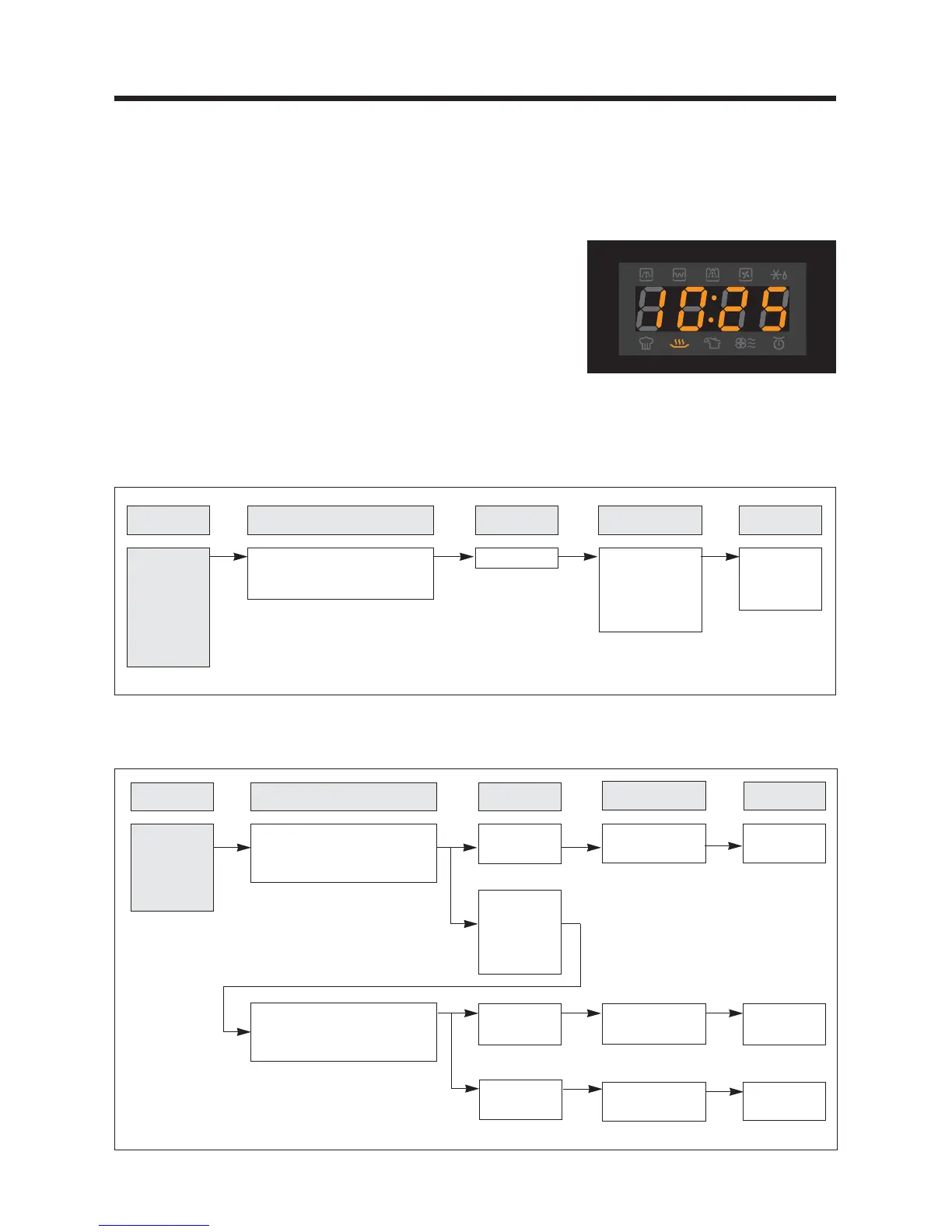

CONDITION CHECK
Check each button for
continuity of the button
Malfunction of
touch control
circuit of control
box sub-assembly
RESULT
Normal
CAUSE REMEDY
Replace
control box
sub-assembly
Display does
not show
programming
at all, even if
keyboard is
touched.
(TROUBLE 6)
The following visual conditions indicate a probable defective touch control Circuit or button P.C.B. assembly
1. Incomplete segments.
1) segment missing
2) partial segments missing
3) digit flickering other than normal fluorescent slight flickering
2. A distinct change in the brightness of one or more numbers exists in the
display.
3. One or more digits in the display are not on when they should be.
4. Display does not count down or up with time cooking or clock operation.
5. Oven is programmable and cooks normally but no display shows.
6. Display obviously jumps in time while counting down.
7. Display counts down noticeably too fast while cooking.
8. Display does not show the time of day when clear button is touched.
9. Oven lamp and turn table motor do not stop although cooking is finished.
Check if the RELAY(RY2) contacts close and if they are close, replace touch control circuit.
CAUSE
REMEDY
(TROUBLE 7)
When “ERROR 2 ERROR 3” come on display.
CONDITION CHECK
Check continuity of thermistor
(resistance of thermistor)
Replace
RESULT
0Ω or infinite
Replace
“ERROR 2 &
ERROR 3”
come on
display
Check continuity of heater
(main, sub)
Defective touch
control circuit
Replace
Approx
200k~300kΩ
(room
temperature)
Defective
heater
No
continuity
continuity
Replace

Daewoo KOC-9Q4T Specifications

General

Turntable	-
Control type	Buttons, Rotary
Display type	LED
Product color	Silver
Microwave power	1400 W
Built-in display	Yes
Appliance placement	Countertop
Number of power levels	10
Connected load	900 W
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	383 mm
Width	513 mm
Height	311 mm
Weight	16600 g
Interior dimensions (W x D x H)	354 x 341 x 231 mm
