11. DOOR HOOK
Hook automatically locks and holds the door when the door shuts. If the door opens while the oven is operating,
the oven will stop operating immediately.
12. DOOR SEAL
Door seal prevents the microwave leakage from the oven cavity.
13. DOOR VIEWING SCREEN
Food, inside of oven, can be observed through the door viewing screen. It is designed that the microwave cannot
pass through the screen.
14. TOP HEATER
Top heater turns on if any of heater related mode operates.
15. OVEN FRONT PLATE
16. CONVECTION INLET
17. OVEN LAMP
Oven lamp turns on anytime the door opens and oven operates.
18. SAFETY INTERLOCK SYSTEM
19. CONTROL PANEL
10. METAL RACK
11. COUPLER
Coupler located at the center of the oven cavity and it couples between the motor and the glass tray.
12. ROLLER GUIDE
Roller guide must be used anytime with the glass tray.
13. GLASS TRAY
Glass tray is made of special heat resistant glass material. It must be always properly fitted with the coupler and
the roller guide.

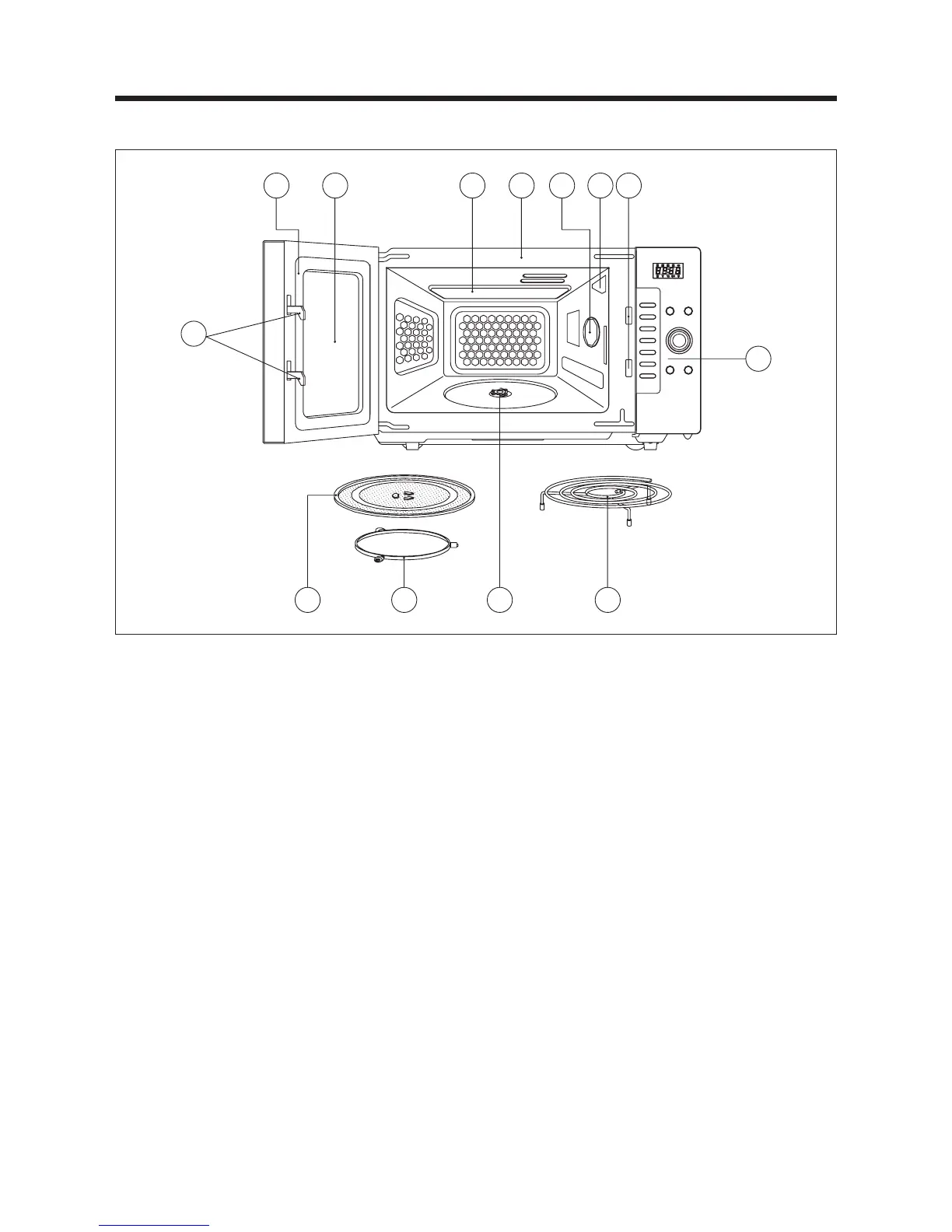

2. FEATURE DIAGRAM

Daewoo KOC-9Q4T Specifications

General

Turntable	-
Control type	Buttons, Rotary
Display type	LED
Product color	Silver
Microwave power	1400 W
Built-in display	Yes
Appliance placement	Countertop
Number of power levels	10
Connected load	900 W
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	383 mm
Width	513 mm
Height	311 mm
Weight	16600 g
Interior dimensions (W x D x H)	354 x 341 x 231 mm
