Daewoo KOC-9Q4T Service Manual

8
11

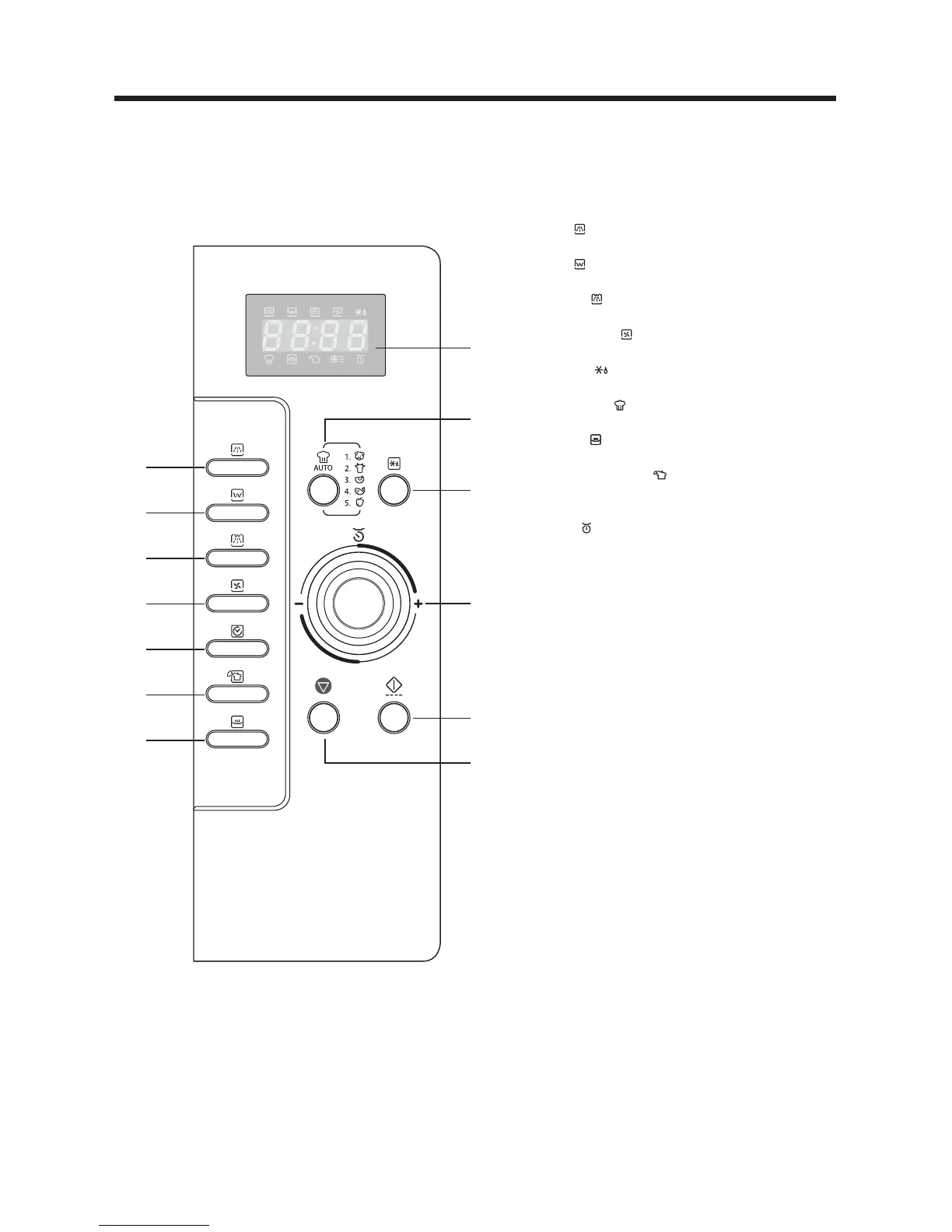

Display : Cooking time, power level, program
indicators and present time are displayed.
MW ( ): When blinking, the oven is
operating in MICROWAVE COOK mode.
Grill ( ): When blinking, the oven is
operating in GRILL mode.
Combi ( ): When blinking, the oven is
operating in COMBI mode.
Convection ( ): When blinking, the oven is
operating in CONVECTION mode.
Defrost ( ): When blinking, the oven is
operating in DEFROST mode.
Auto-cook ( ): When blinking, the oven is
operating in AUTO COOK mode.
Warm ( ): When blinking, the oven is
operating in WARM mode.
Steam Cleaning ( ): When blinking, the
oven is operating in STEAM CLEANING
mode.
gram ( ): When blinking, the oven is
operating in weight input mode.
22
Auto cook : Used to cook or reheat.
33
Defrost : Used to defrost foods.
44
MW : Used to set power level of the
microwave.
55
Grill : Used to select grill mode.
66
Combi : Used to select combi mode.
77
Convection : Used to select convection
mode and selected temp.
88
Clock : Used to set clock.
99
STEAM CLEANING : Used to clean the
inside of the oven.
00
Warm or Dish Warm : Used to keep the food
or dish warm.
qq
Dial knob : Used to set time, weight and
quantity.
ww
START/SPEEDY COOK : Used to start a
program or a speedy start(each press adds
30 seconds of microwave cooking time).
ee
STOP/CLEAR : Used to stop the oven
operation or to delete the cooking data.
1
2
e
3
w
q
4
5
6
7
8
9
0
2) KOC-9Q4T

Daewoo KOC-9Q4T Specifications

General

Turntable	-
Control type	Buttons, Rotary
Display type	LED
Product color	Silver
Microwave power	1400 W
Built-in display	Yes
Appliance placement	Countertop
Number of power levels	10
Connected load	900 W
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	383 mm
Width	513 mm
Height	311 mm
Weight	16600 g
Interior dimensions (W x D x H)	354 x 341 x 231 mm
