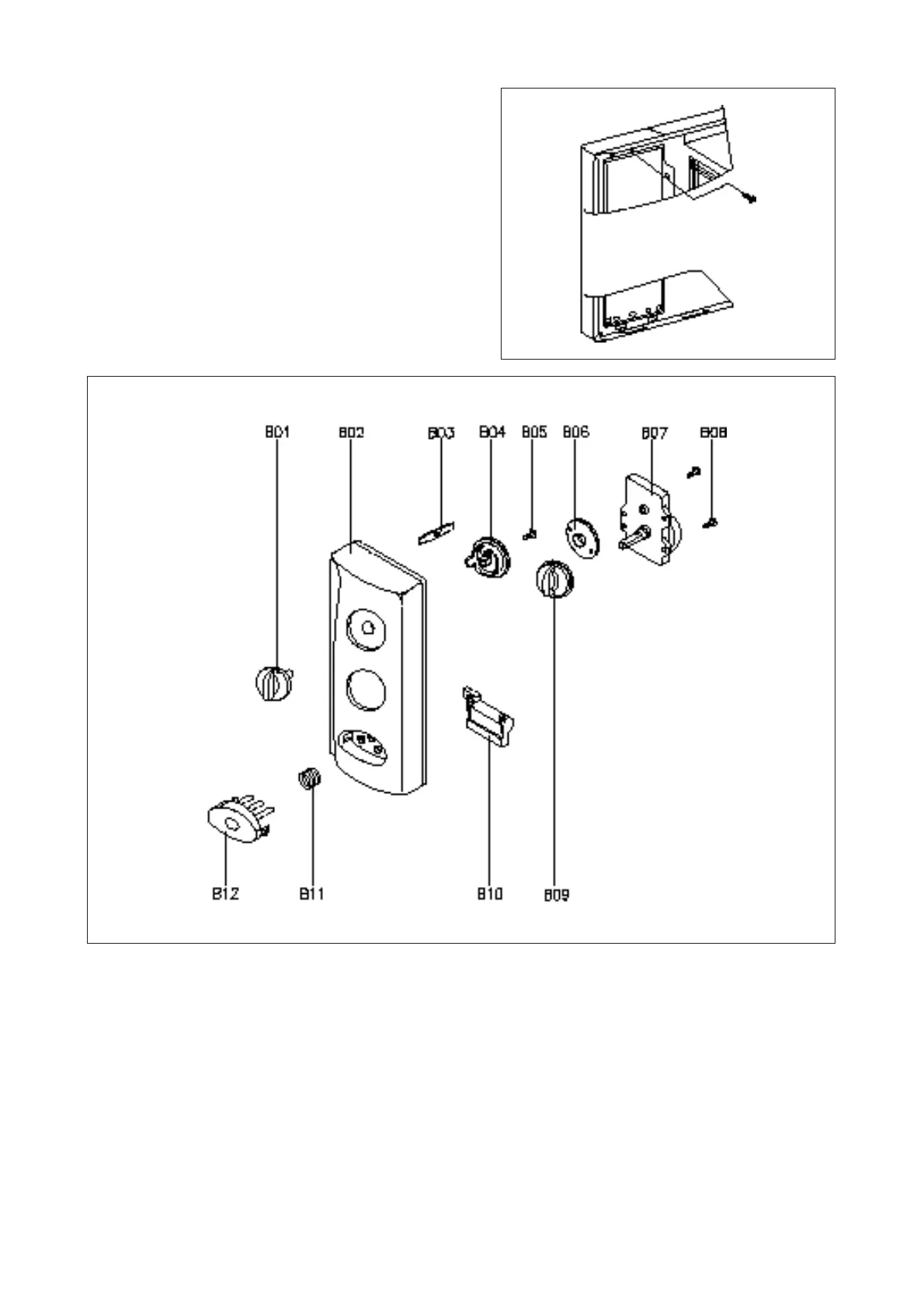

5. To remove control panel parts.
(1) Remove the screw which secure the control panel
push up two snap fits and draw forward the control
panel assembly.
(2) Remove the screw (B05) which secure the VPC coupler(B04).
(3) Pull out the VPC coupler(B04), VPC knob(B01) and the flat spring (B03) from the control panel(B02).
(4) Remove two screws(B08) which secure the timer ass’y(B07).
(5) Pull out the knob(B09) from the timer ass’y(B07).
(6) Remove the timer ass’y(B07).
(7) Pull out the timer coupler(B06) from the timer ass’y(B07).
(8) Remove the door open button(B12) and button spring(B11) from the control panel(B02).
(9) Remove the door open lever(B10) from the control panel(B02).
(10) Reverse the above steps for Reassembly.
