INTERLOCK MECHANISM FUNCTIONS AND ADJUSTMENTS
The door lock mechanism is a device which has been specially designed to completely eliminate micreowave
radiation when the door is opened during operation, and thus to perfectly prevent the danger resulting from the
leakage of microwave.

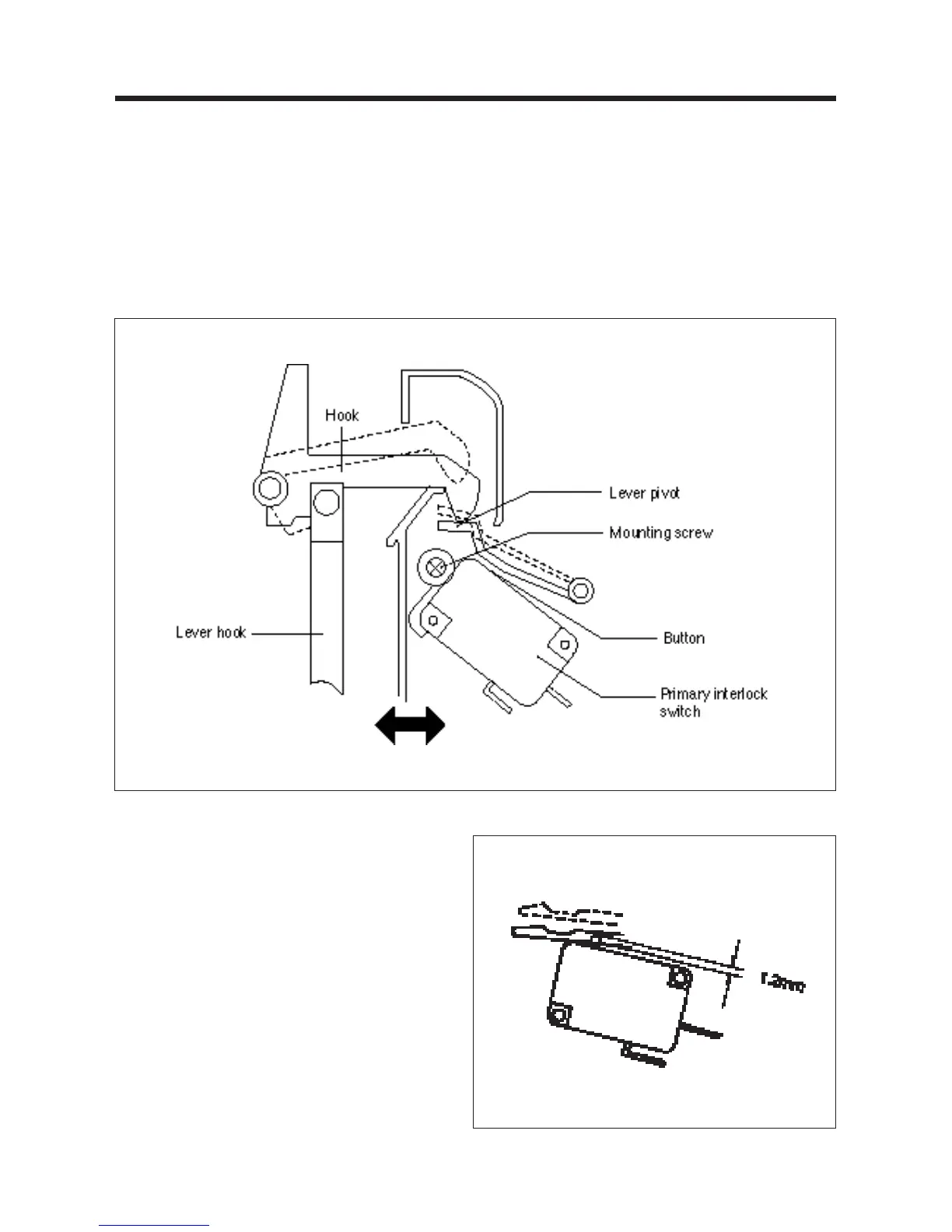

(1) Primary interlock switch
When the door is closed, the hook will lock the oven door.
If the door is not closed properly, the oven will not operate.
When the door is closed, the hook pushes the lever downward.
The lever presses the button of the primary interlock switch to bring it under ‘ON’ condition.
Adjustment 1
When the door is closed, the switch button is pushed
by the hook.
The movement of the switch button should exceed 1.2
mm measured at the top of the button.
