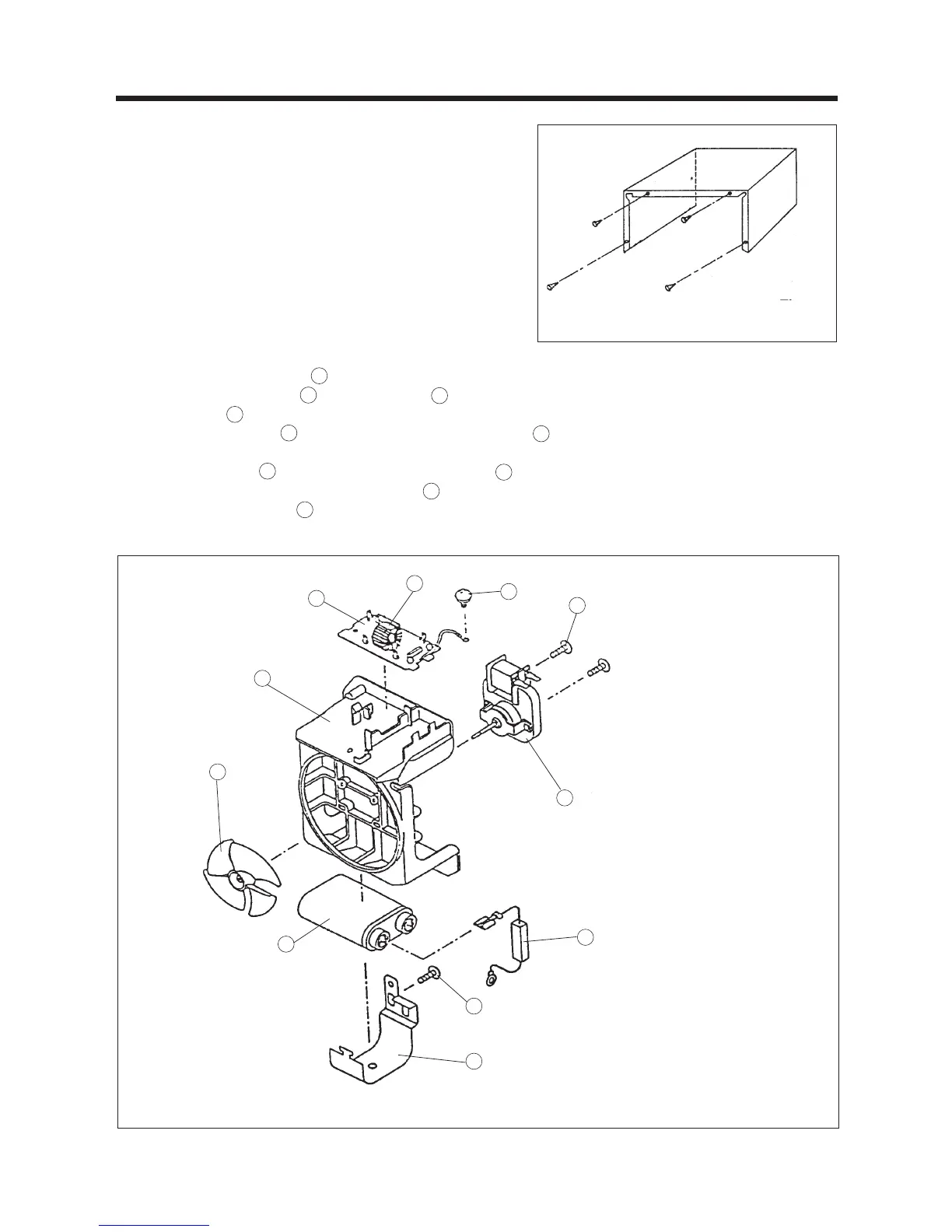

DISASSEMBLY AND ASSEMBLY
1. To remove cabinet (Refer to Fig. 2)
1) Remove four screws on cabinet back.
2) Push the cabinet backward.
2. To remove parts of guide wind assembly
(Refer to Fig.3)
1) Release the earth screw .
2) Remove the noise-filter to the guide wind .
3) Pull the fan to the motor shaft.
4) Release two screws which secure the motor shaded pole .
5) Remove the motor shaded pole.
6) Release a screw which secure the holder capacitor .
7) Remove the holder capacitor and capacitor to the guide wind.
8) Remove the diode H.V .
9) Reverse the above steps for reassembly.
Fig. 2
Fig. 3
F57
F53
F57
F52
F42
F45
F44
F43
F47
F48
F46
F49
F42
F52
F44
F49
F43
F47
F48
F45
F46
