6

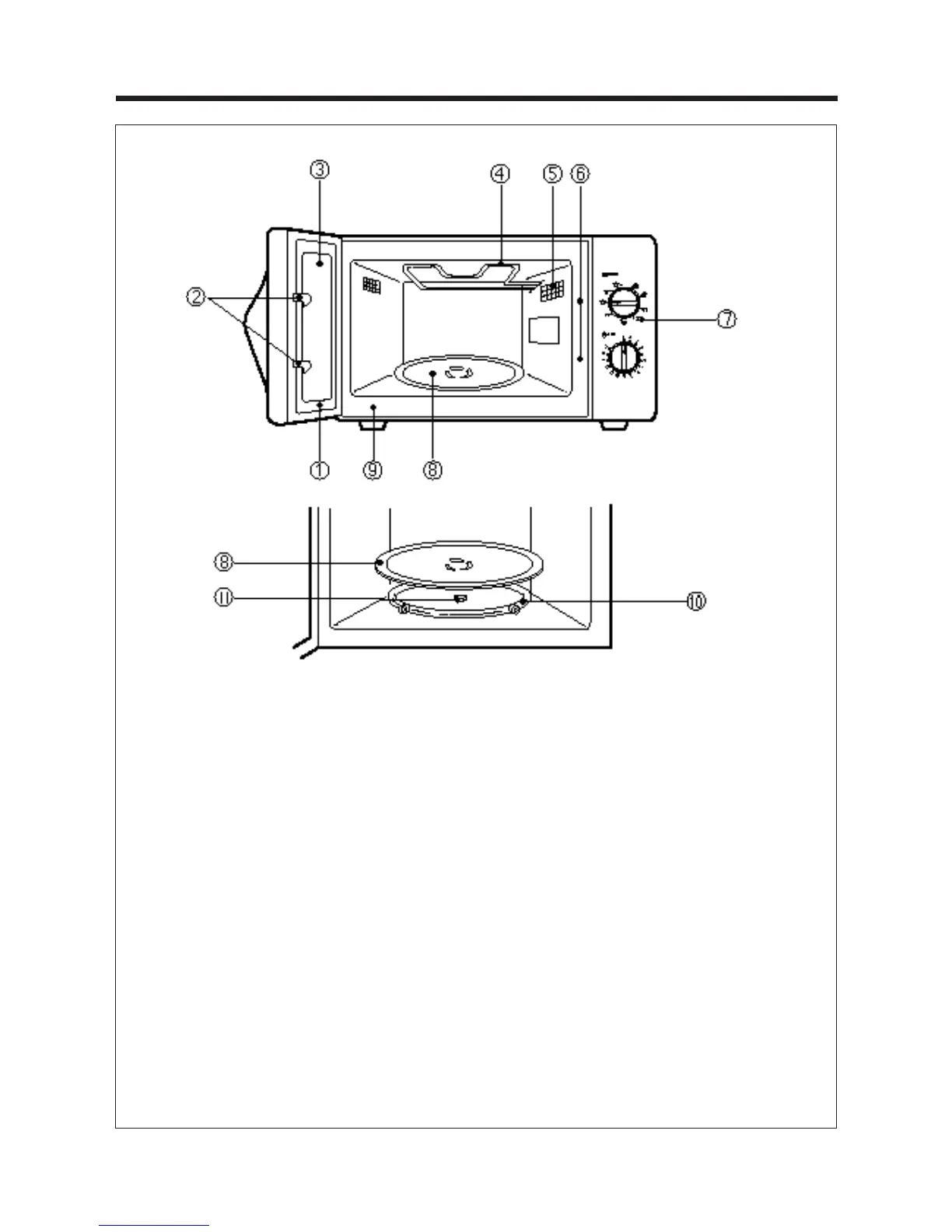

NAMES AND FUNCTION OF PARTS
¤ DOOR SEAL
Door seal maintains the microwave within the
oven cavity and prevents microwave leakage.
¤ŁDOOR HOOK
When door is closed, it will autoamtically lock shut.
If door is opened while oven is operating,
magnetron tube will immediately stop operating.
¤ØDOOR SCREEN
Allows viewing of food. Microwave cannot pass
through perforations in screen.
¤ŒGRILL HEATER
Turns on when grill and simultaneous cooking is
selected.
¤ºOVEN LAMP
Automatically turns on during oven operating.
¤ SAFETY INTERLOCK SYSTEM
¤ CONTROL PANEL
¤ GLASS TURN -TABLE TRAY
Rotates during cooking and ensure even
distribution of Microwaves. It can also be used as
a cooking utensil.
¤ OVEN FRONT PLATE
¤ ROLLER GUIDE
This must be always used for cooking together
with the glass turn-table tray. Use a mild
detergent, water and a soft cloth to clean the
roller guide.
¤æCOUPLER
This fits over the shaft in the center of the oven’s
cavity floor.
This is to remain in the oven for all cooking.
