15

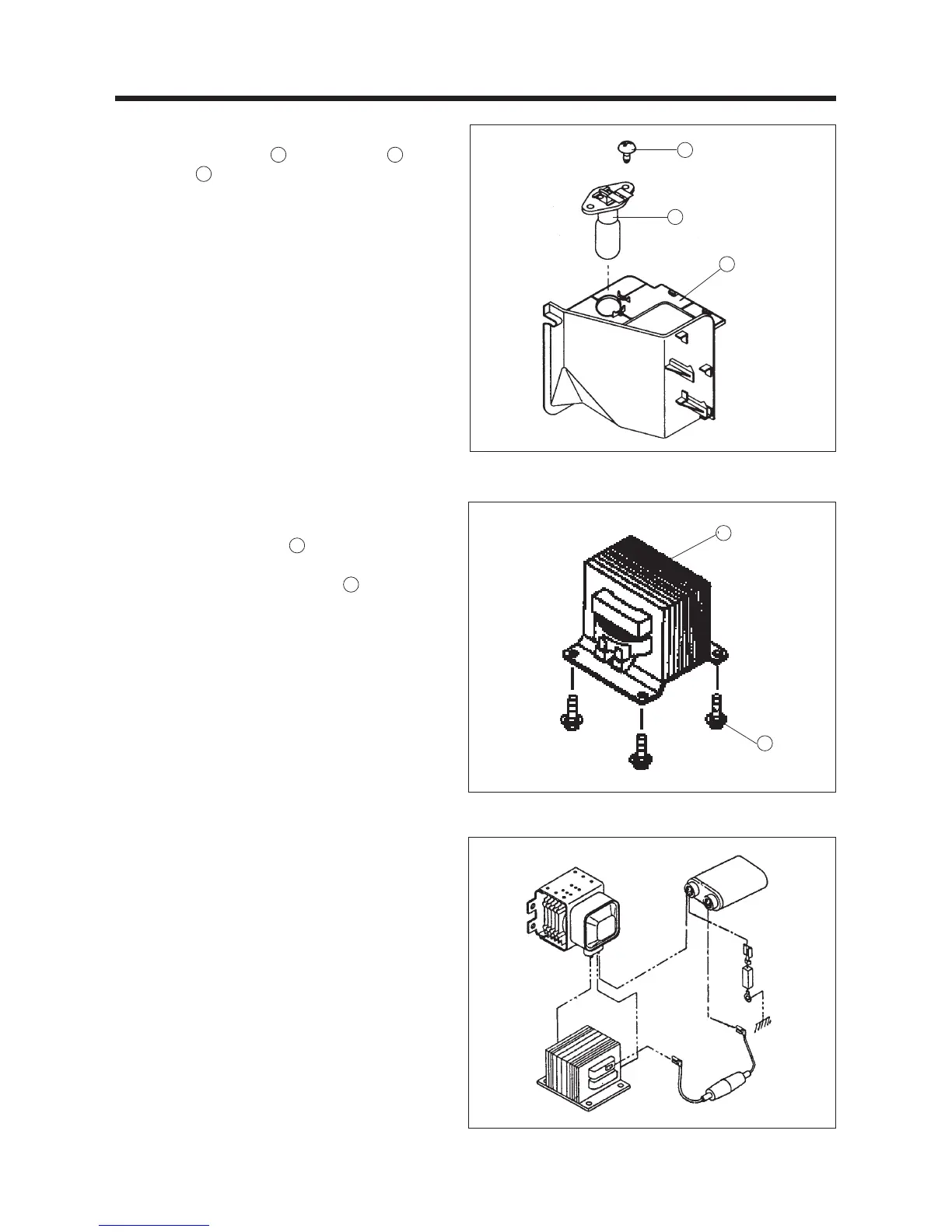

3. To remove lamp. (Refer to Fig. 4)
1) Remove a screw holding lamp to the
guide air .
2) Remove the lamp.
3) Reverse the above steps for reassembly.
4. To remove H.V. Transformer
(Refer to Fig. 5)
1) Remove four screws which secure the H.V.
Transformer bracket to the base plate.
2) Remove the H.V. Transformer .
HIgh voltage circuit wiring
H.V. Capacitor
H.V. Diode
H.V. Fuse
H.V. Trans
Magnetron
F36
F21
F22
F34
F37
F37 F36
F34
F22
F21
Fig. 4
Fig. 5
