17
REF.NO.
PART CODE PART NAME DESCRIPTION Q’TY REMARK
B1 3516705830 CONTROL-PANEL ABS 1
B2 3513403900 KNOB VPC ABS 1
B3 3513401220 KNOB ABS 1
B4 4415A66600 SW MICRO VP-532A-OF SPNC #187 1
B5 7121301611 SCREW TAPPING T2S PAN 3X16 MFZN 1
B6 3515101600 SPRING FLAT SUS-301 T0.5 1
B7 3517401200 COUPLER VPC KNOB POM 1
B8 7S312X40A1 SCREW SPECIAL T1 TRS 4X10 SE MFZN 1
B9 3517401100 COUPLER TIMER POM 1
B10 3518204900 TIMER KN60MKD11E-P 1
B11 7S341W40B1 SCREW SPECIAL
T2S PAN 4X12 PW SE MFZN
2
B12 4415A17352 SW MICRO VP-533A-OF SPNO #187 1
B13 7121301611 SCREW TAPPING T2S PAN 3X16 MFZN 1

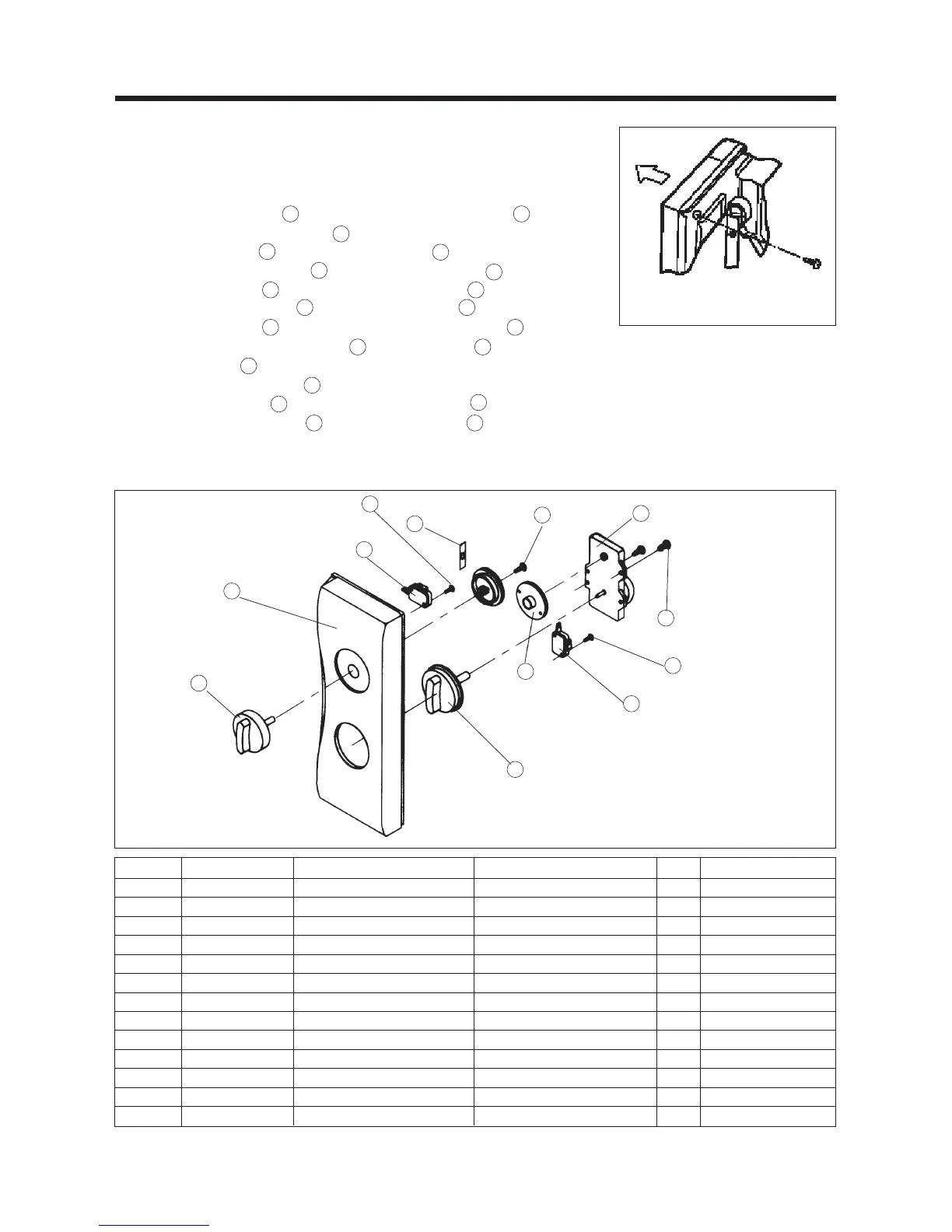

Fig. 7
CONTROL PANEL AS : 3516710620
Fig. 8
B5
B4
B1
B2
B6
B8
B10
B11
B13
B12
B3
B9
6. To remove parts of control panel assembly (Refer to Fig. 7.8)
1) Remove a screw holding control panel assembly to the oven
front plate. At the same time, draw forward the control panel
assembly from oven front plate.
2) Remove two screws which secure the timer assembly .
3) Remove the timer assmebly .
4) Pull out the knob from the timer assembly .
5) Pull out the coupler timer from the timer assembly .
6) Remove a screw which secure the sw MICRO .
7) Pull out the sw MICRO from the control panel .
8) Remove a screw which secure the coupler VPC knob .
9) Pull out the coupler VPC knob and knob VPC from the
control panel .
10) Remove the spring flat .
11) Remove a screw which secure the sw MICRO .
12) Pull out the sw MICRO from the control panel .
13) Reverse the above steps for reassembly.
B11 B10
B10
B3
B9
B13 B12
B12
B8
B7 B2
B1
B6
B5
B4
B1B4
B7
B1
B10
B10
