Daewoo KOR-804M - Page 32

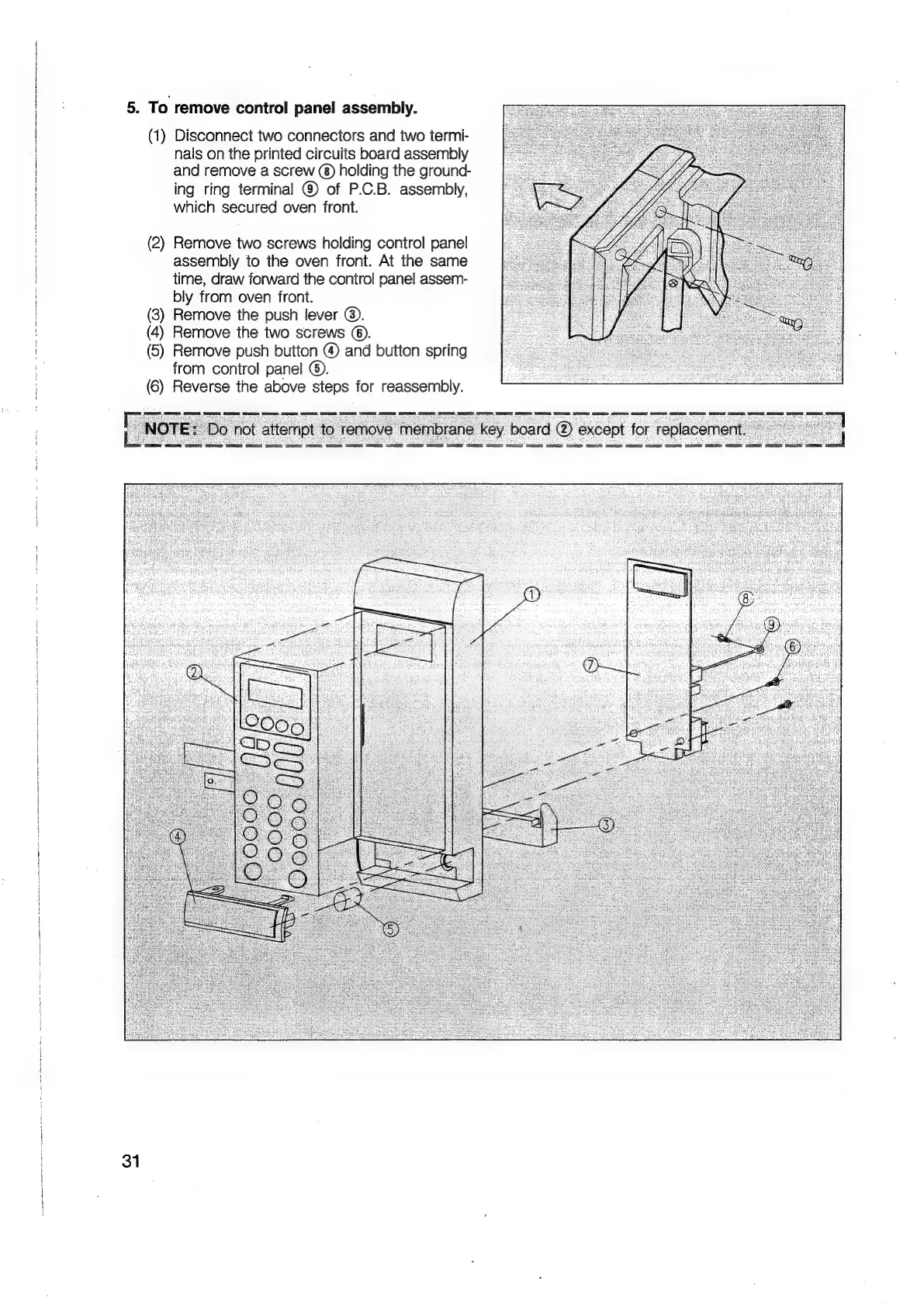

5. To remove control panel assembly.
(1) Disconnect two connectors and two termi-
nals on the printed circuits board assembly
and remove a screw (8) holding the ground-
ing ring terminal © of P.C.B. assembly,
which secured oven front.
(2) Remove two screws holding control panel
assembly to the oven front. At the same
time, draw forward the contro! panel assem-
bly from oven front.
(3) Remove the push lever @).
(4) Remove the two screws ©).
(5) Remove push button @ and button spring
1 from control panel ®.
(6) Reverse the above steps for reassembly.
