8.
9. To remove transformer.
33

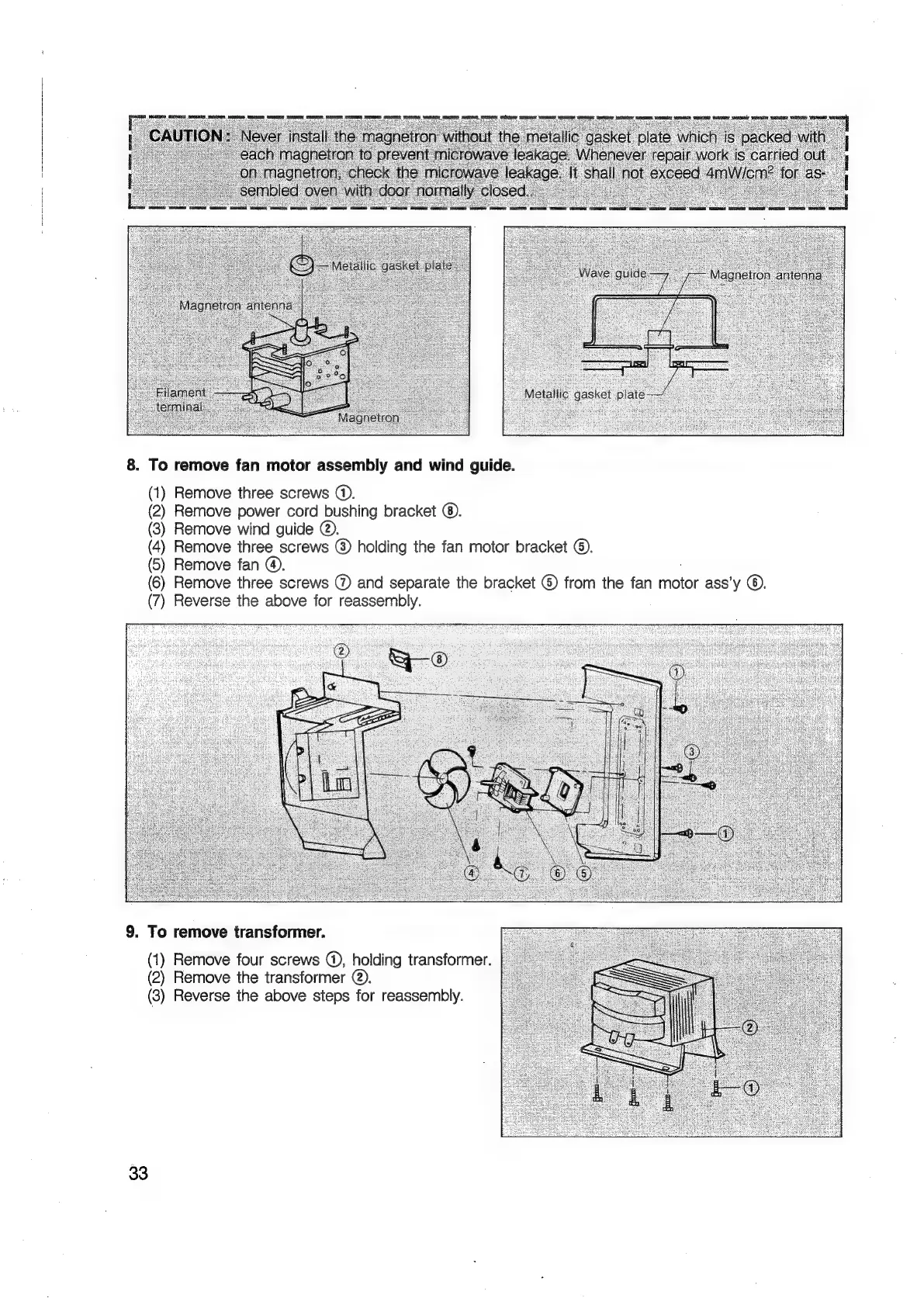

To remove fan motor assembly and wind guide.
(1) Remove three screws @.
(2) Remove power cord bushing bracket ®.
(3) Remove wind guide @.
(4) Remove three screws @ holding the fan motor bracket ©.
(5) Remove fan @.
(6) Remove three screws @ and separate the bracket © from the fan motor ass’y ©,
(7) Reverse the above for reassembly.
baer Se
ear
(1) Remove four screws @, holding transformer.
(2) Remove the transformer @).
(3) Reverse the above steps for reassembly.
