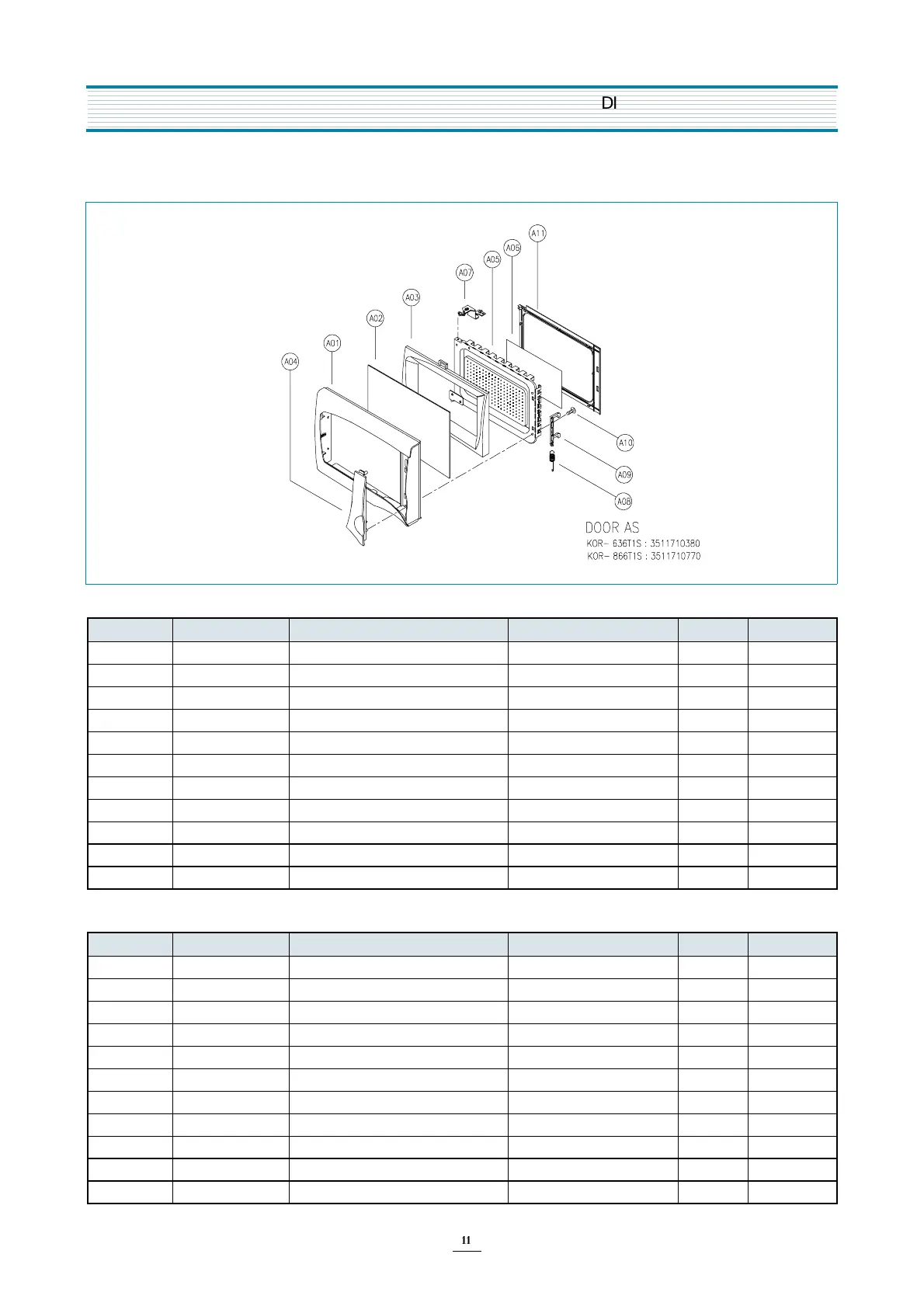

DISASSEMBLY AND ASSEMBLY

3. To remove door parts.

(1) KOR-636T1S

(2) KOR-866T1S

REF. NO PART CODE PART NAME DESCRIPTION QTY REMARK

A01 3512203830 FRAME DOOR ABS 1

A02 3517005610 BARRIER-SCREEN *0 PMMA 1.5t 1

A03 3515306500 SUPPOTER BARR-S *0 ABS 1

A04 3511603800 DECORATOR DOOR ABS 1

A05 3511706100 DOOR PAINTING AS KOR-61150S 1

A06 3517002800 BARRIER-SCREEN *1 KOR-61150S PE 0.1t 1

A07 3515204110 STOPPER HINGE *T AS KOR-636T1S SCP T2.6 1

A08 3515101310 SPRING HOOK HSW-3 1

A09 3513100730 HOOK KOR-6325 POM 1

A10 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 1

A11 3512300200 GASKET DOOR KOR-61150S PP 1

REF. NO PART CODE PART NAME DESCRIPTION QTY REMARK

A01 3512204130 FRAME DOOR ABS 1

A02 3517005710 BARRIER-SCREEN *0 PMMA 1.5t 1

A03 3515306600 SUPPOTER BARR-S *0 ABS 1

A04 3511604000 DECORATOR DOOR ABS 1

A05 3511711800 DOOR PAINTING AS KOR-866T1S 1

A06 3517006000 BARRIER-SCREEN *I KOR-866T1S PE 0.1t 1

A07 3515204110 STOPPER HINGE *T AS KOR-636T1S SCP T2.6 1

A08 3515101310 SPRING HOOK HSW-3 1

A09 3513100730 HOOK KOR-6325 POM 1

A10 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 1

A11 3512302000 GASKET DOOR KOR--86671S PP 1
