DISASSEMBLY AND ASSEMBLY

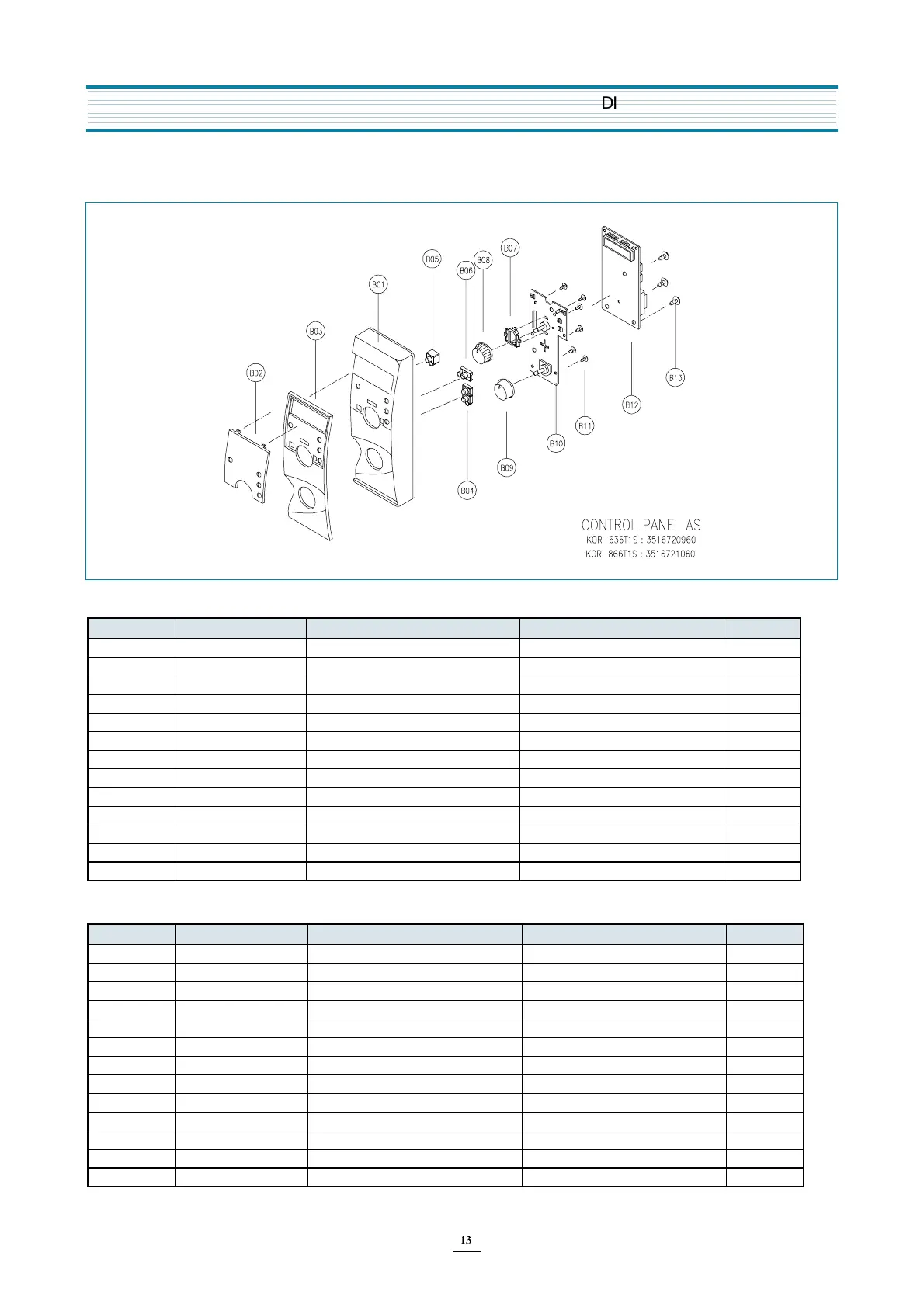

5. To remove control panel parts.

(1) KOR-636T1S

(2)KOR-866T1S

REF. NO PART CODE PART NAME DESCRIPTION QTY

B01 3516719440 CONTROL-PANEL ABS 1

B02 3515501510 WINDOW DISPLAY PMMA 1

B03 3511603900 DECORATOR C-PANEL ABS 1

B04 3516907410 BUTTON FUNCTION ABS 1

B05 3516907510 BUTTON FUNCTION ABS 1

B06 3516907610 BUTTON START ABS 1

B07 3517401700 COUPLER VPC KNOB POM 1

B08 3513405530 KNOB VPC ABS 1

B09 3513405220 KNOB VOLUME ABS 1

B10 3514321410 PCB SUB AS KOR-636T1S 1

B11 7621301011 SCREW TAPPING T2 PAN 3*10 PW MFZN 6

B12 3514321310 PCB MAIN AS KOR-636T1S 1

B13 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN 3

REF. NO PART CODE PART NAME DESCRIPTION QTY

B01 3516720240 CONTROL-PANEL ABS 1
