Door latch - When the door is closed, it will
automatically shut off. If the door is opened while
the oven is operating, the magnetron will
automatically shut off.
22
Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
33
Oven cavity
44
Control panel
55
Coupler - This fits over the shaft in the center of the
oven cavity floor.
This is to remain in the oven for all cooking.
66
Roller guide - This must always be used for
cooking together with the glass cooking tray.
77
Glass cooking tray - Made of special heat resistant
glass. The tray must always be in proper position
before operating. Do not cook food directly on the
tray.
88
Viewing screen - Allows viewing of food.
The screen is designed so that light can pass
through, but not the microwave.
99
Waveguide cover - Protects the microwave outlet
from splashes of cooking foods.
00
Safety interlock system
qq
Oven lamp - Automatically turns on during oven
operating.

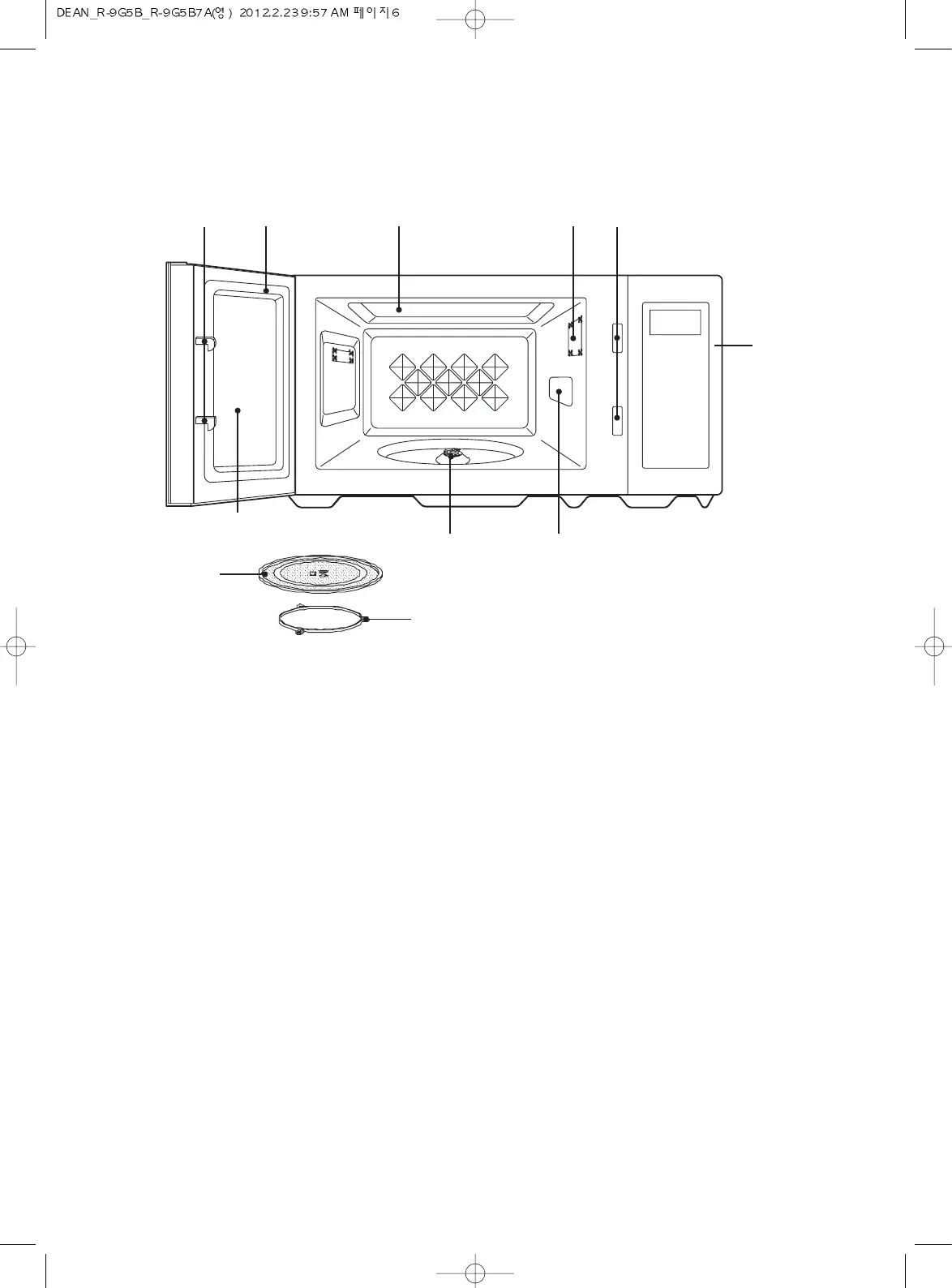

FEATURES DIAGRAM
