Daewoo Mega 250-V - Page 149

S0602170K
Page 44
Axle (ZF AP 420R)

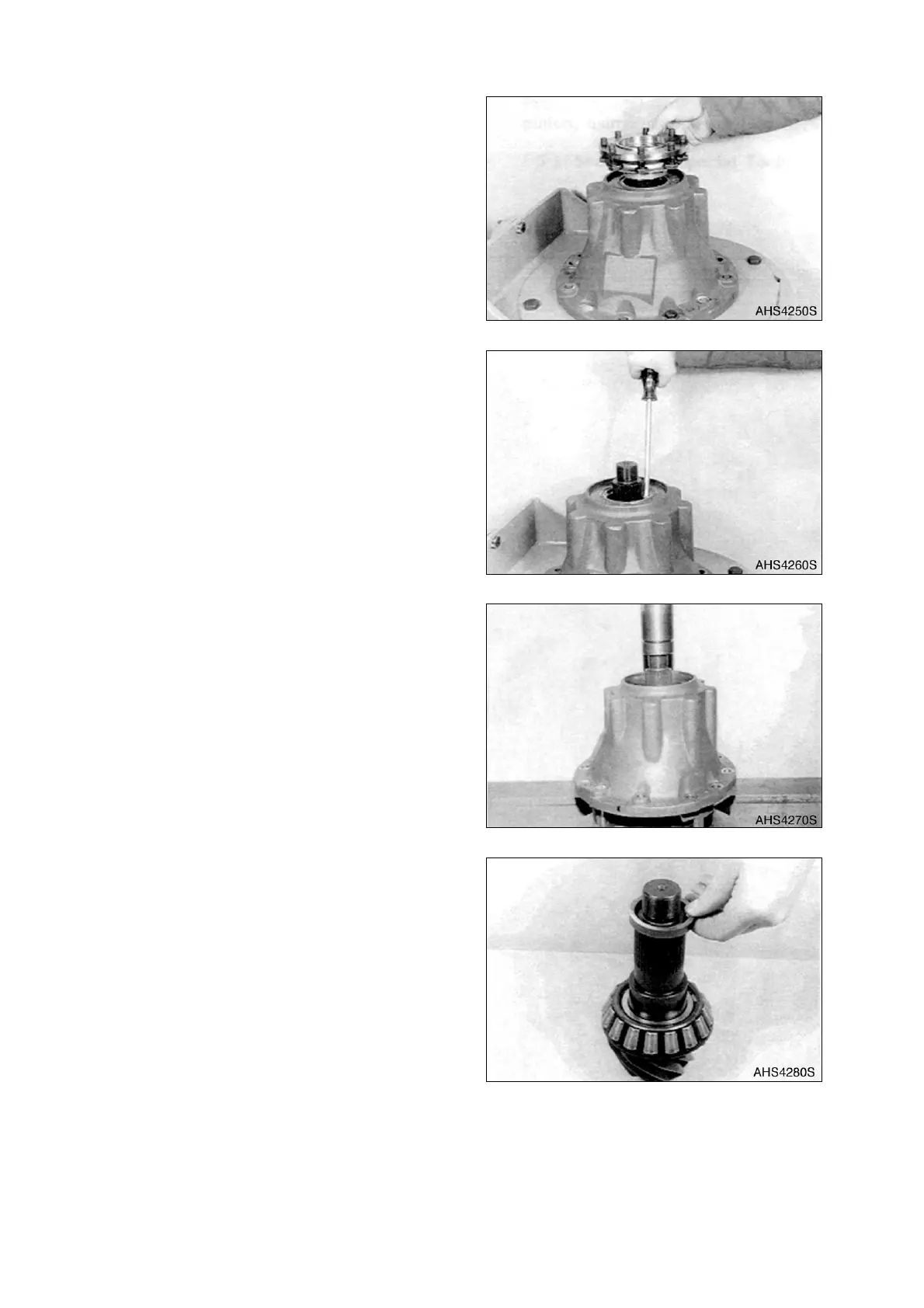

3. Pull off the drive flange.
4. Pry out the shaft seal.
5. Press drive pinion out of the axle carrier.
NOTE: Pay attention to the released
tapered roller bearing.
6. Remove spacer from the drive pinion end.
Figure 54
Figure 55
Figure 56
Figure 57
