Daewoo Mega 250-V - Parts List

S0705010
Page 5
Cylinders
Return to Master Table of Contents
PARTS LIST
Boom Hydraulic Cylinder

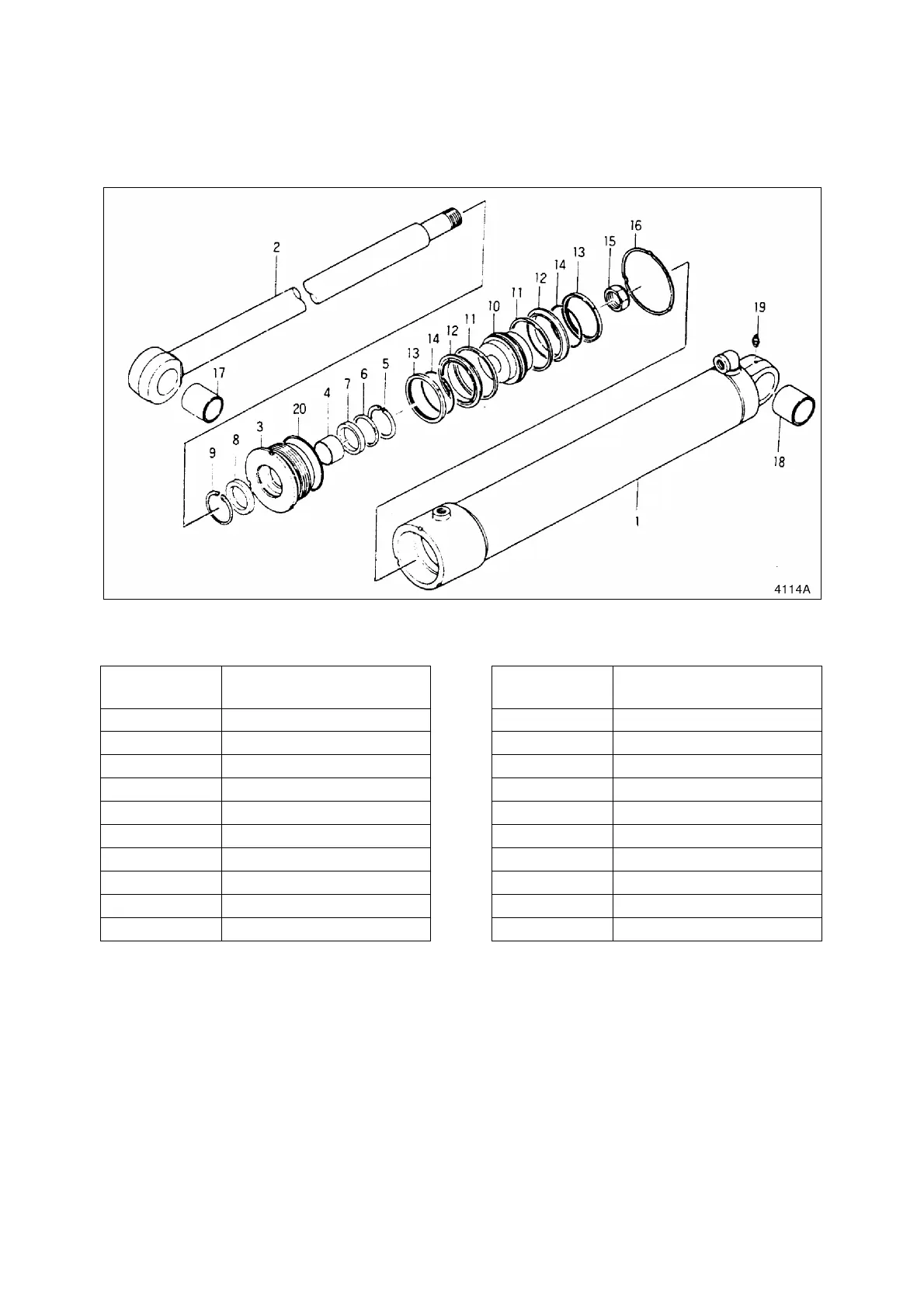

Figure 5
Reference
Number
Description
1 Cylinder Tube
2 Cylinder Rod
3 Cylinder Head
4 Bushing
5 Snap Ring
6 Packing Header
7 U-Ring
8 Wiper Ring
9 Snap Ring
10 Piston
11 Piston Ring
12 U-Ring
13 U-Ring Holder
14 Stopper
15 U-nut
16 Lock Washer
17 Pin Bushing
18 Pin Bushing
19 Grease Flitting
20 O-ring
Reference
Number
Description
