Specifications for Mega 500-V
WORKING RANGE AND DIMENSIONS

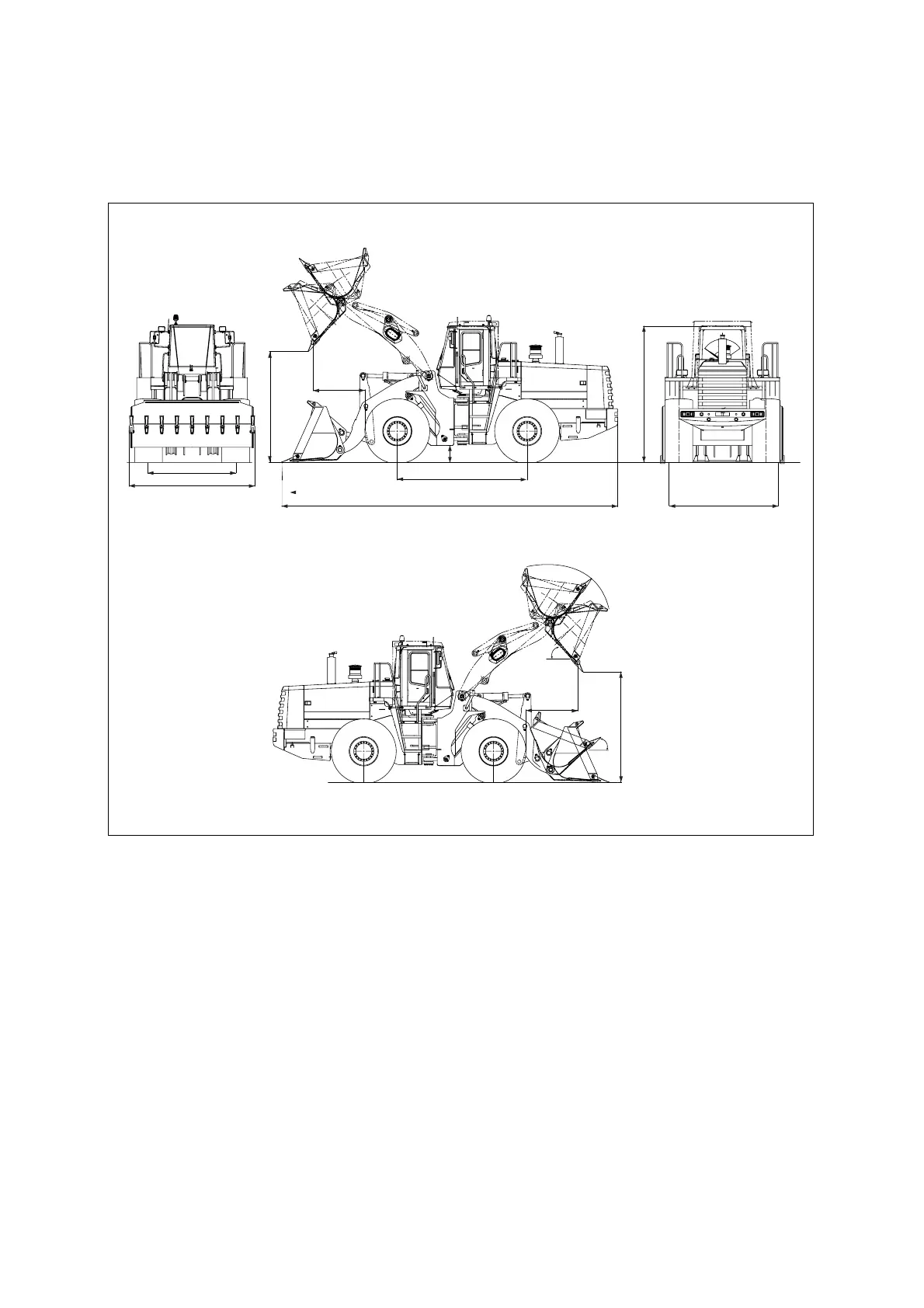

Figure 3, illustrates exterior machine dimensions and working range of machine when it is equipped with a
standard bucket.
A
E
G
I
H
D
F
C
I
H
B
a
b
AHO0830L
Figure 3
