Daewoo RD-430 - Location of User Controls; Front Panel Controls; Front Panel Display Indicators

Location of Users Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

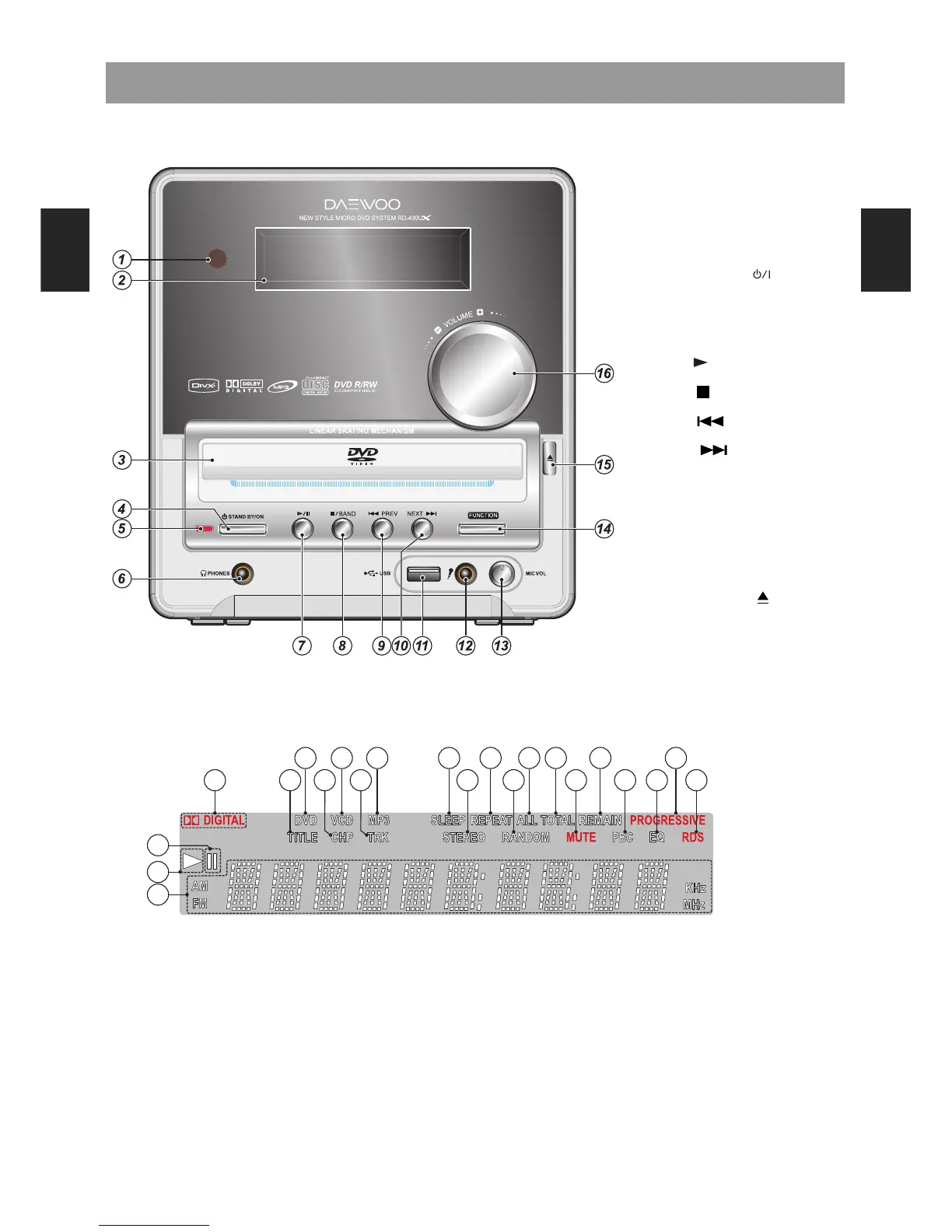

1. Remote Control Sensor
2. Display
3. DISC TRAY
4. STANDBY/ON
()
button
5. STANDBY/ON LED lamp
6. PHONES jack
7. PLAY
()
button
8. STOP
()
button
9. PREV
()
button
10. NEXT
()
button
11. USB jack(Option)
12. Microphone jack
13. Mic. VOLUME Control
14. FUNCTION button
15. OPEN/CLOSE
()
button
16. MASTER VOLUME Control
●
Front Panel
1 2 9 11 14 16 17 194 6
3 5 7 8 10 12 13 15 18
21
20
22
1. DOLBY DIGITAL indicator
2. TITLE indicator
3. DVD indicator
4. CHAPTER indicator
5. VCD indicator
6. TRACK indicator
7. MP3 indicator
8. SLEEP indicator
9. STEREO indicator
10. REPEAT indicator
11. RANDOM indicator
12. ALL indicator
13. TOTAL indicator
14. MUTE indicator
15. REMAIN indicator
16. PBC(Playback Control) indicator
17. EQ indicator
18. PROGRESSIVE indicator
19. RDS indicator
20. PAUSE indicator
21. PLAY indicator
22. Multi-Function Information Displaying Area
●
Display
