(02) Injector data
Select sensor data LID
DV11 STEP3 engine ECU
[01] Engine start data
[02] Injector data
[03] Voltage data
[04] Fuel pressure data
[05] Engine brake data
[06] CAN communication data
[07] Fan clutch data
[08] Data logging
[09] Switch data
[10] Sensor data

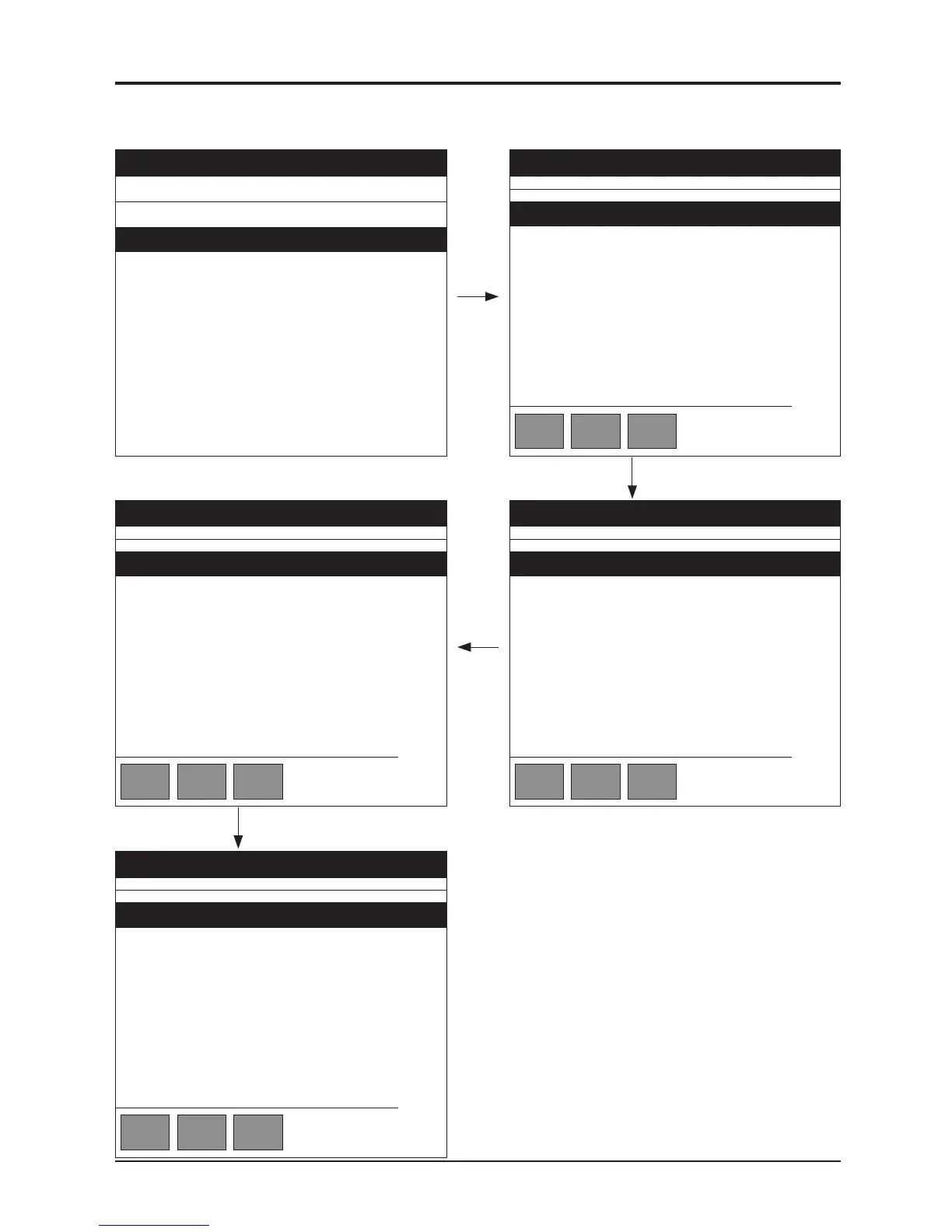

Check sensor data
01. Accelerator pedal depression ······ 0.0 [%]
02. Battery voltage ····························24.1 [V]
03. ECU condenser #1 voltage ·········81.0 [V]
04. Faulty condenser #1 voltage status ······ 0
05. ECU condenser #2 voltage ·········81.1 [V]
06. Faulty condenser #2 voltage status ······ 0
07. Engine RPM ································0 [rpm]
08. Fuel supply pressure ···············0.3 [MPa]
09. Vehicle speed ························· 0.0 [km/h]
10. Faulty fuel high-pressure generator ······ 0
Fix Un Main
▲,▼
Press
[Enter]
key
Check sensor data
11. Fuel supply amount ··············· 0.0 [mg/st]
12. Limited fuel supply amount · · 87.2 [mg/st]
13. Faulty injector 1 (DV11:1) ····················· 0
14. Faulty injector 2 (DV11:4) ····················· 0
15. Faulty injector 3 (DV11:2) ····················· 0
16. Faulty injector 4 (DV11:5) ····················· 0
17. Faulty injector 5 (DV11:3) ····················· 0
18. Faulty injector 6 (DV11:6) ····················· 0
19.
#1 Cyl Dynamic compensation fuel amount ······0.0[mg/st]
20.
#2 Cyl Dynamic compensation fuel amount ······0.0[mg/st]
Fix Un Main
▲,▼
Press
[PgDn] key
Check sensor data
21.
#3 Cyl Dynamic compensation fuel amount ·······0.0[mg/st]
22.
#4 Cyl Dynamic compensation fuel amount ·······0.0[mg/st]
23.
#5 Cyl Dynamic compensation fuel amount ·······0.0[mg/st]
24.
#6 Cyl Dynamic compensation fuel amount ·······0.0[mg/st]
25.
A class static compensation fuel amount ···0.0[mg/st]
26.
B class static compensation fuel amount ···0.0[mg/st]
27.
C class static compensation fuel amount ···0.0[mg/st]
28.
D class static compensation fuel amount ···0.0[mg/st]
29.
D class static compensation fuel amount ···0.0[mg/st]
30.
F class static compensation fuel amount ····0.0[mg/st]
Fix Un Main
▲,▼
Press
[PgDn]
key
Check sensor data
31.
G class static compensation fuel amount ····0.0[mg/st]
32.
H class static compensation fuel amount ···0.0[mg/st]
······································································
01. Accelerator pedal depression ······ 0.0 [%]
02. Battery voltage ····························24.1 [V]
03. ECU condenser #1 voltage ·········81.0 [V]
04. Faulty condenser #1 voltage status ······ 0
05. ECU condenser #2 voltage ·········81.1 [V]
06. Faulty condenser #2 voltage status ······ 0
07. Engine RPM ································0 [rpm]
Fix Un Main
▲,▼
Press
[PgDn] key
To Next Page
