10
1. Removal of the FRONT LOADING Ass’y
(Fig. 3.1)
a. Unscrew the 2 screw holding the F/L.
b. Separate the F/L Ass’y from the MAINBASE settling
down point by lifting the rear part of F/L (Screw Hole).
2. Deassembly of FRONT LOADING Ass’y
(FIg. 3.2~3.5)
a. Remove the 1 washer for holding the door opener and
separate F/L Assembly by moving the DOOR OPENER
in the direction of arrow.
b. Remove the 2 screw holding the TOP PLATE and sepa-
rate the CASSETTE HOLDER Ass’y by moving the FL
BRKT L and FL BRKT R in the direction of arrow. (Fig.
3.2)
c. Separate the FL LIFT SPRING by twisting and dragging
from FL BRKT R. (Fig. 3.3)
DEASSEMBLY AND REPLACEMENT
NOTE:
Remove the FRONT LOADING Ass’y in eject mode.

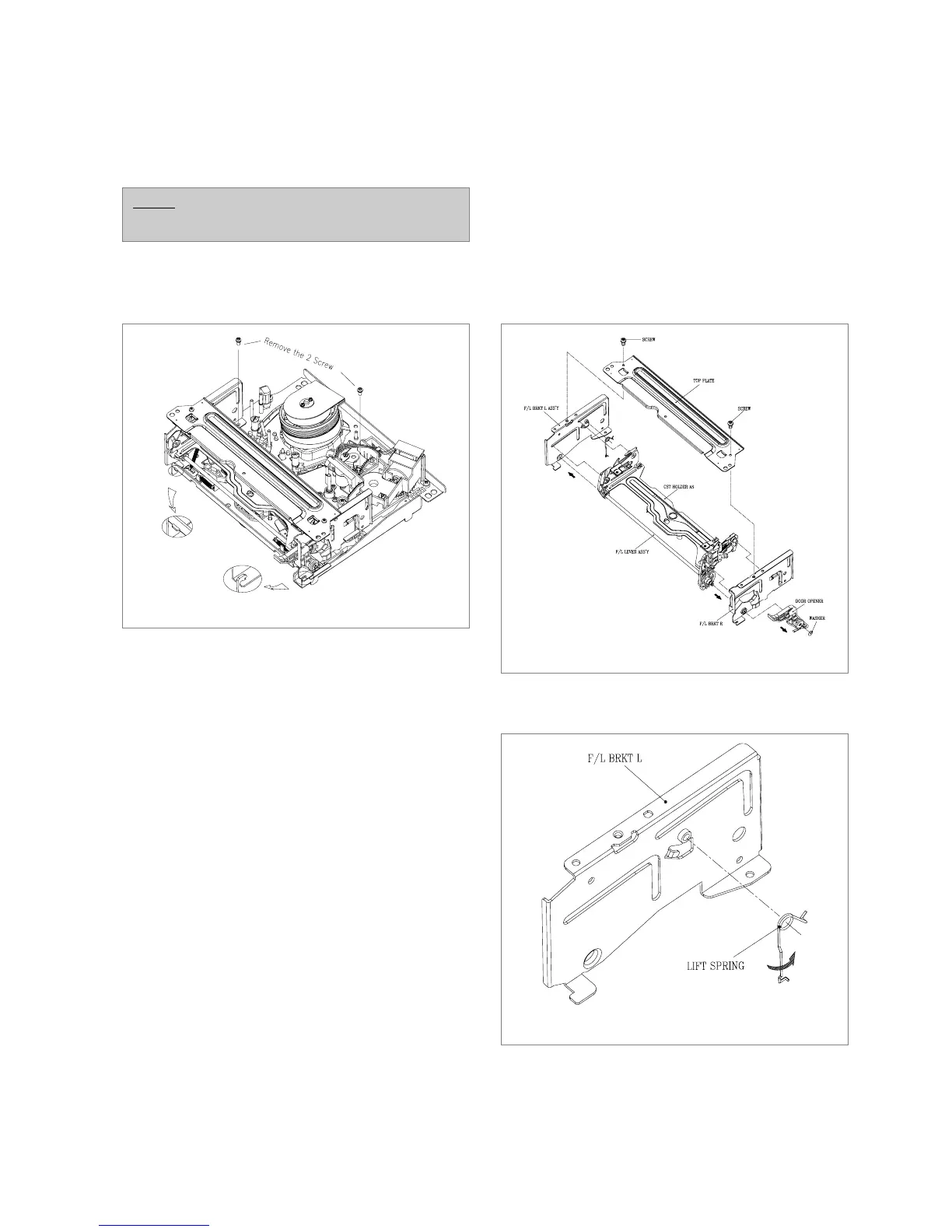

Fig. 3.1 Removal of the FRONT LOADING Ass’y
FIg. 3.2 Deassembly of the FRONT LOADING Ass’y
FIg. 3.3 Deassembly of the FL BRKT Ass’y
