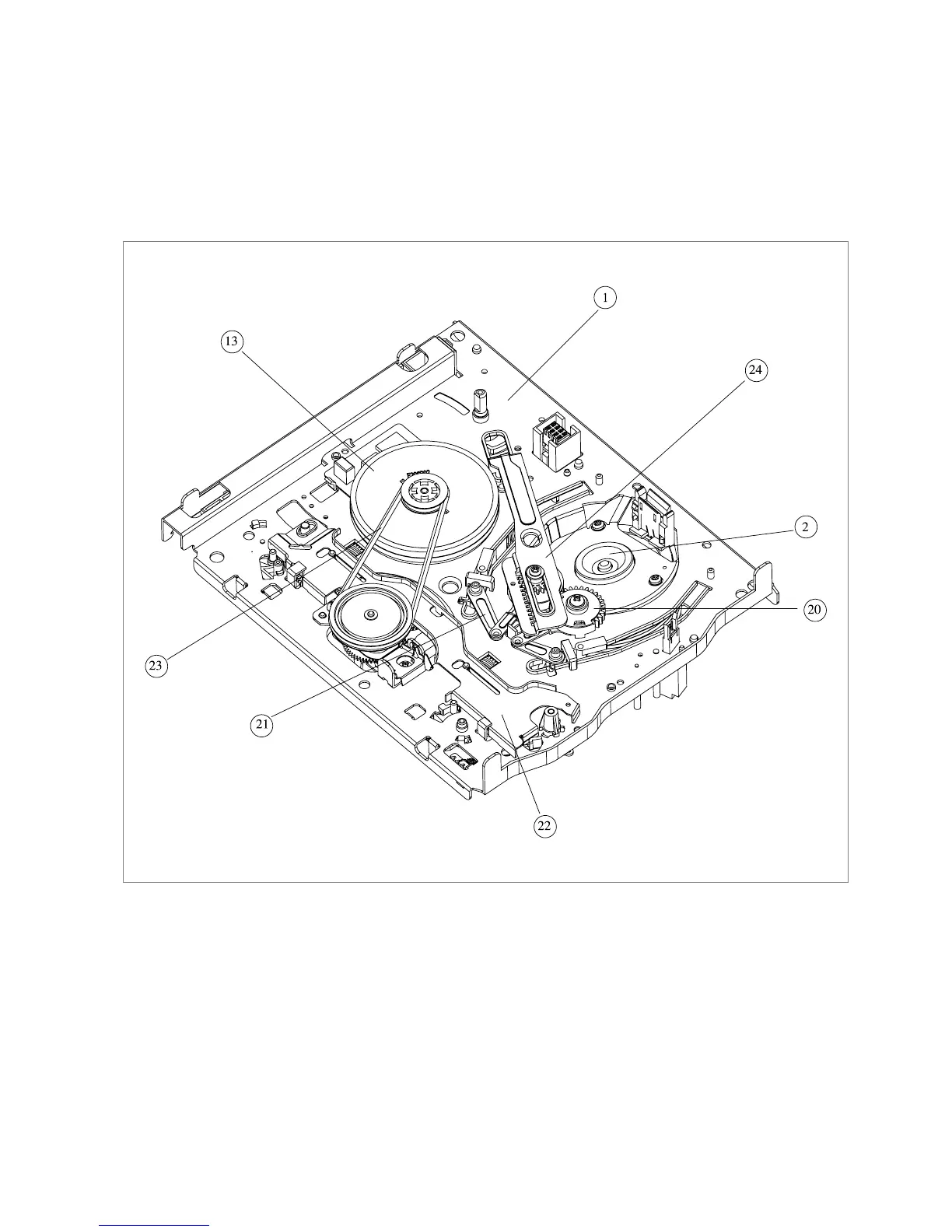

ASSEMBLY DIAGRAM AND A/S (CONTINUED)
B. Lower View
20 L LOADING ASS’Y
21 R LOADING ASS’Y
22 CONNECT PLATE
23 REEL BELT
24 LOADING RACK
fig1-2
