Inspection and adjustment
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
ΛΦ45/55 series
5

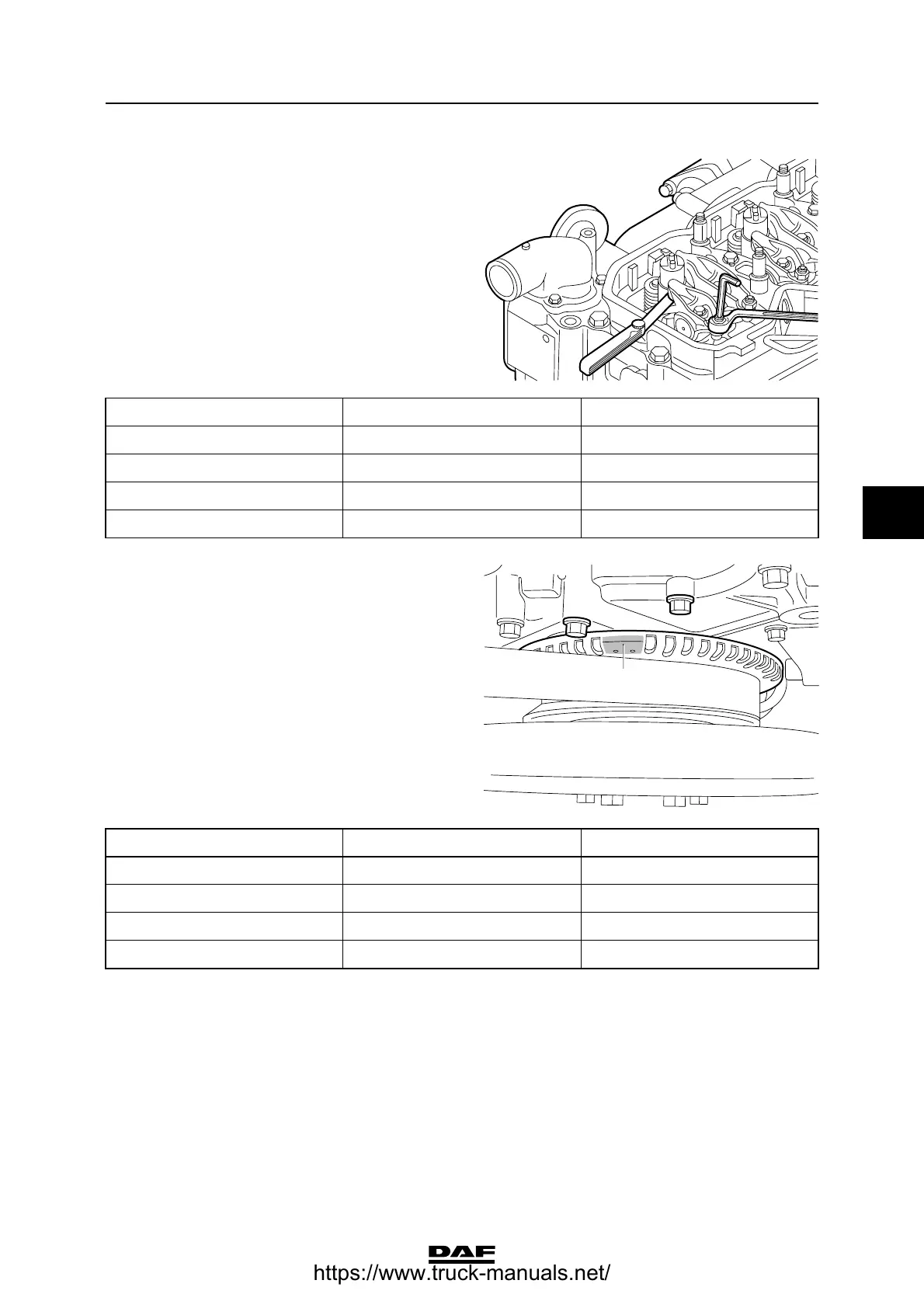

3. Check/correct the valve clearance of the
specified inlet and exhaust valves. Set the
correct valve clearance by loosening the lock
nut and rotating the adjusting screw in the
correct direction; see "Technical data" for the
correct valve clearance.
4. Using an open-end spanner on the fan shaft,
turn the crankshaft one rotation further so
that the mark (A) is once again between the
bolts (B) and the valves of cylinder 4 overlap.
5. Check/correct the valve clearance of the
specified inlet and exhaust valves. Set the
correct valve clearance by loosening the lock
nut and rotating the adjusting screw in the
correct direction; see "Technical data" for the
correct valve clearance.
6. Fit the valve cover. See "Removing and
installing".
7. Fit the flexible pipe, air inlet pipe and bracket.
M201064
Cylinder Inlet valve Exhaust valve
1
2X
3X
4XX
M201065
A
B
B
Cylinder Inlet valve Exhaust valve
1X X
2X
3X
4
