Inspection and adjustment
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
ΛΦ45/55 series
5
3.24 CHECKING THE BRAKE PAD THICKNESS AND BRAKE DISC
Version: Knorr SB 7000

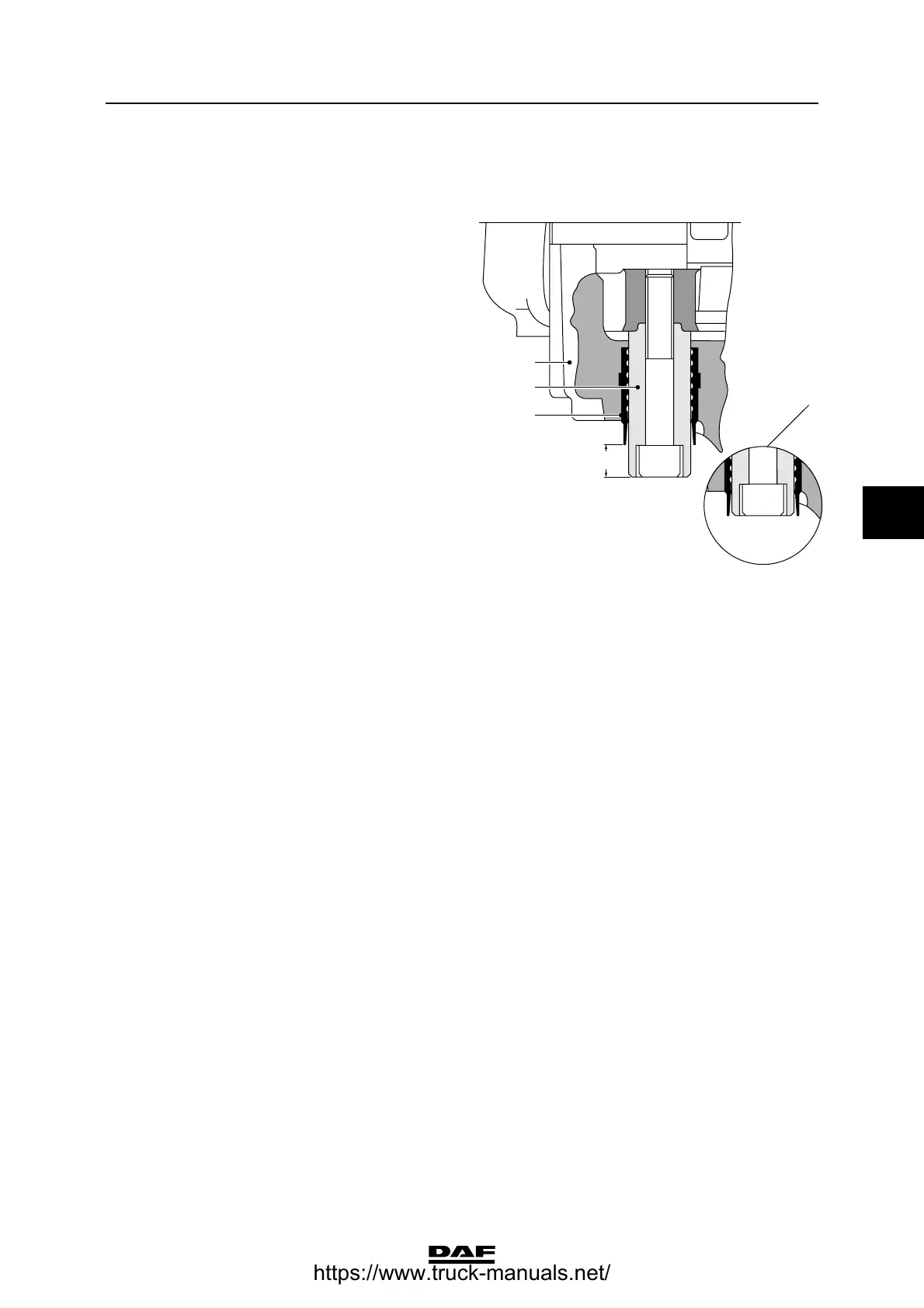

1. Check whether guide bush (4) protrudes
from guide sleeve (6) (C).
If the guide bush (4) is level with the guide
sleeve (6) (see detail A) the brake pad and
brake disc thicknesses should be checked.
C
1
4
6
R600481
A
