EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
3-22
©
200515
Inspection and adjustment
5
ΛΦ45/55 series

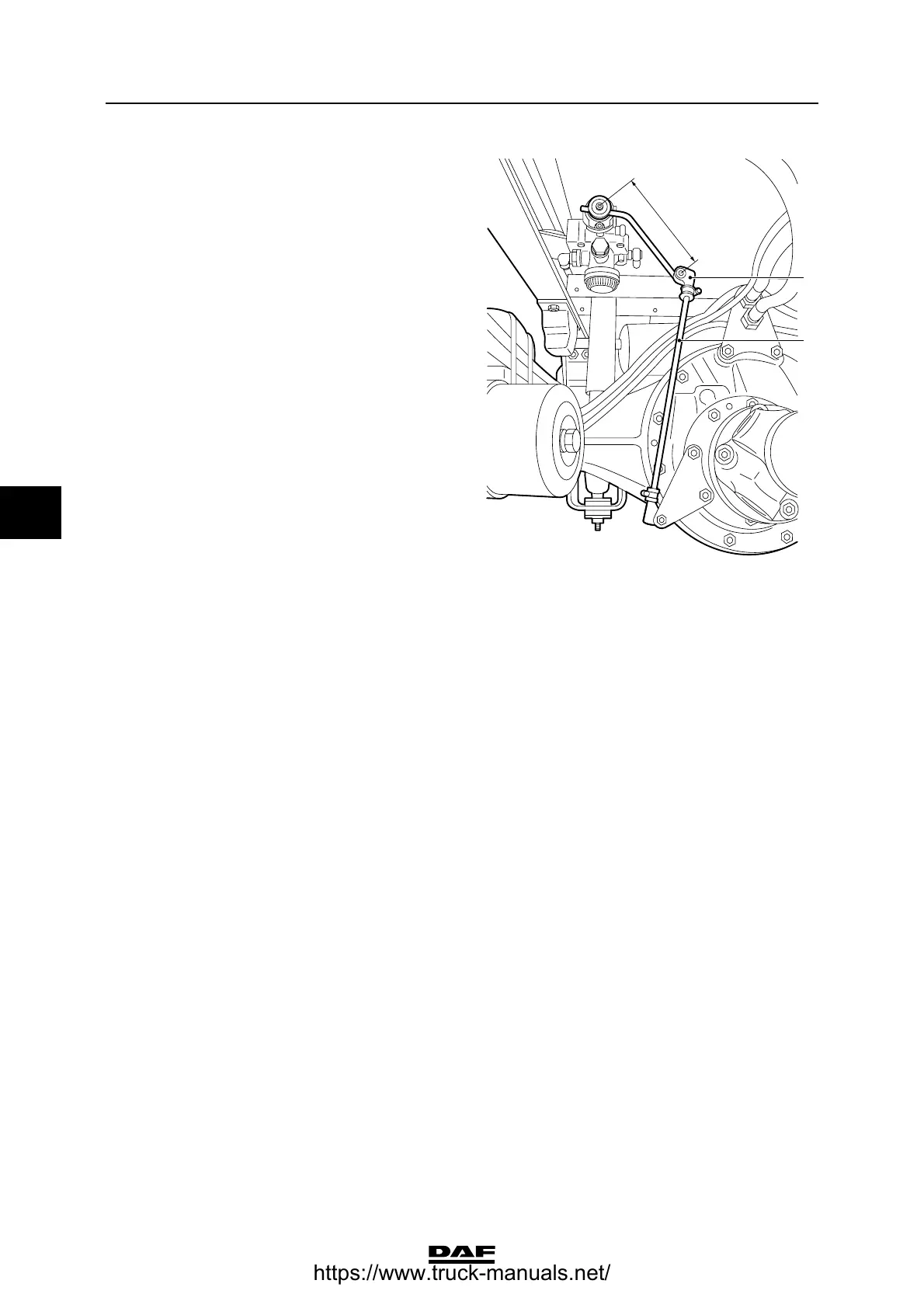

10. If necessary, correct the brake pressure by
adjusting the length of the vertical
connecting rod (2). Never attempt to alter the
length L of the (horizontal) control lever.
11. Remove the ball coupling (1) and raise the
control lever. Check that the output pressure
is now allowed through (almost) without
reduction.
Note:
The small socket head screw in the centre of
the valve must not be adjusted.
Drive and chas sis
1
2
R6 00 568
L
