User's Manual
6
5 Installation
Prior to installation, connect the door detector to the hub and check the signal level at the
installation location. We recommend installing the door detector in a place with the signal strength
of at least 2 bars.
We recommend installing the door detector with expansion screws.

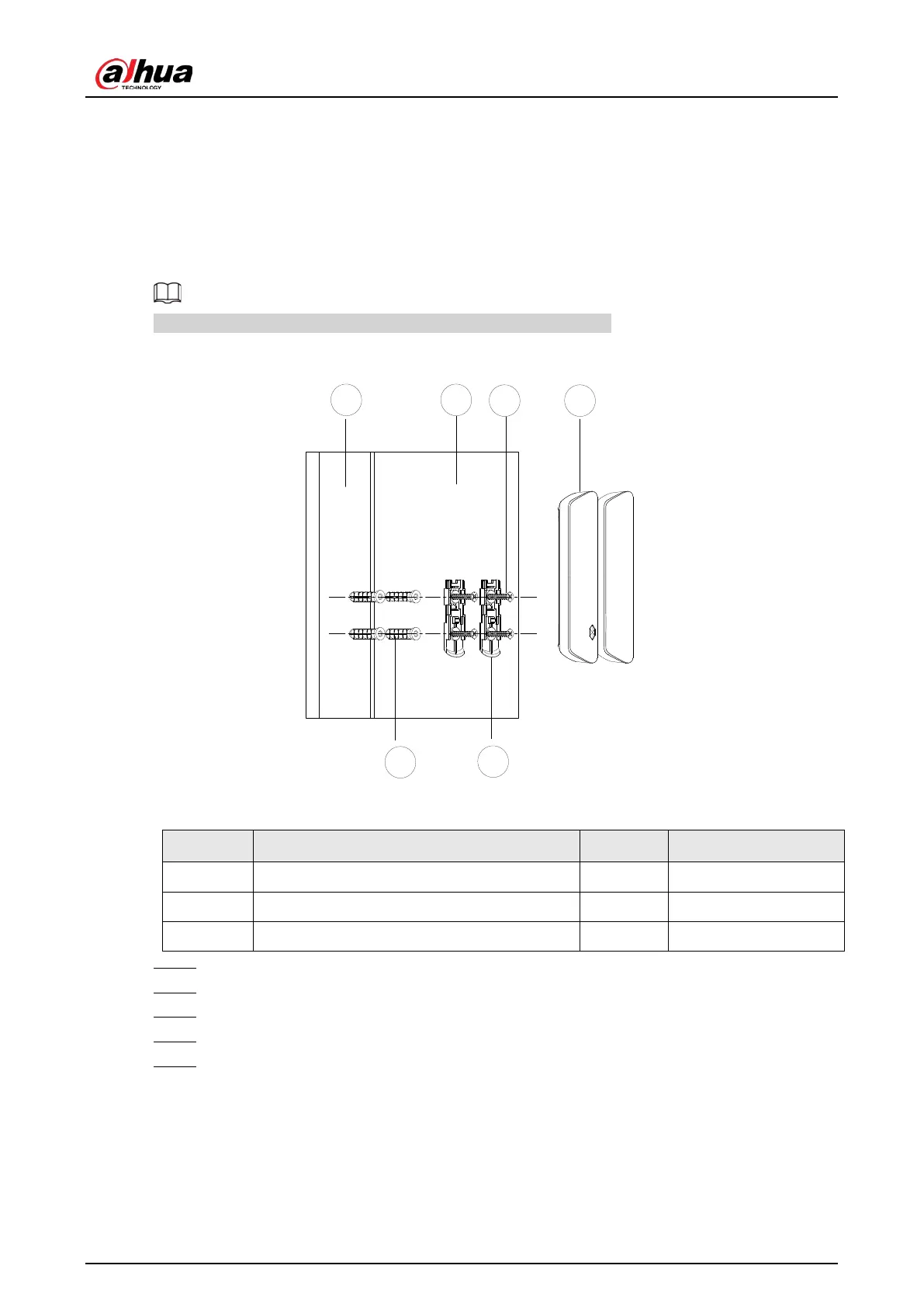

Figure 5-1 Installation
Table 5-1 Installation items
No. Item name No. Item name
1 Door 1 4 Expansion bolt
2 Door 2 5 Attachment panel
3 ST3 × 18 mm self-tapping screw 6 Magnet
Step 1 Drill 4 holes in door 1 and door 2 according to the hole positions of the attachment panels.
Step 2 Put the expansion bolts into the holes.
Step 3 Align the screw holes on the plate with the expansion bolts.
Step 4 Fix the attachment panels with ST3 × 18 mm self-tapping screws.
Step 5 Put the door detector into the attachment panel from top to bottom.
1 2
3
4
5
6
