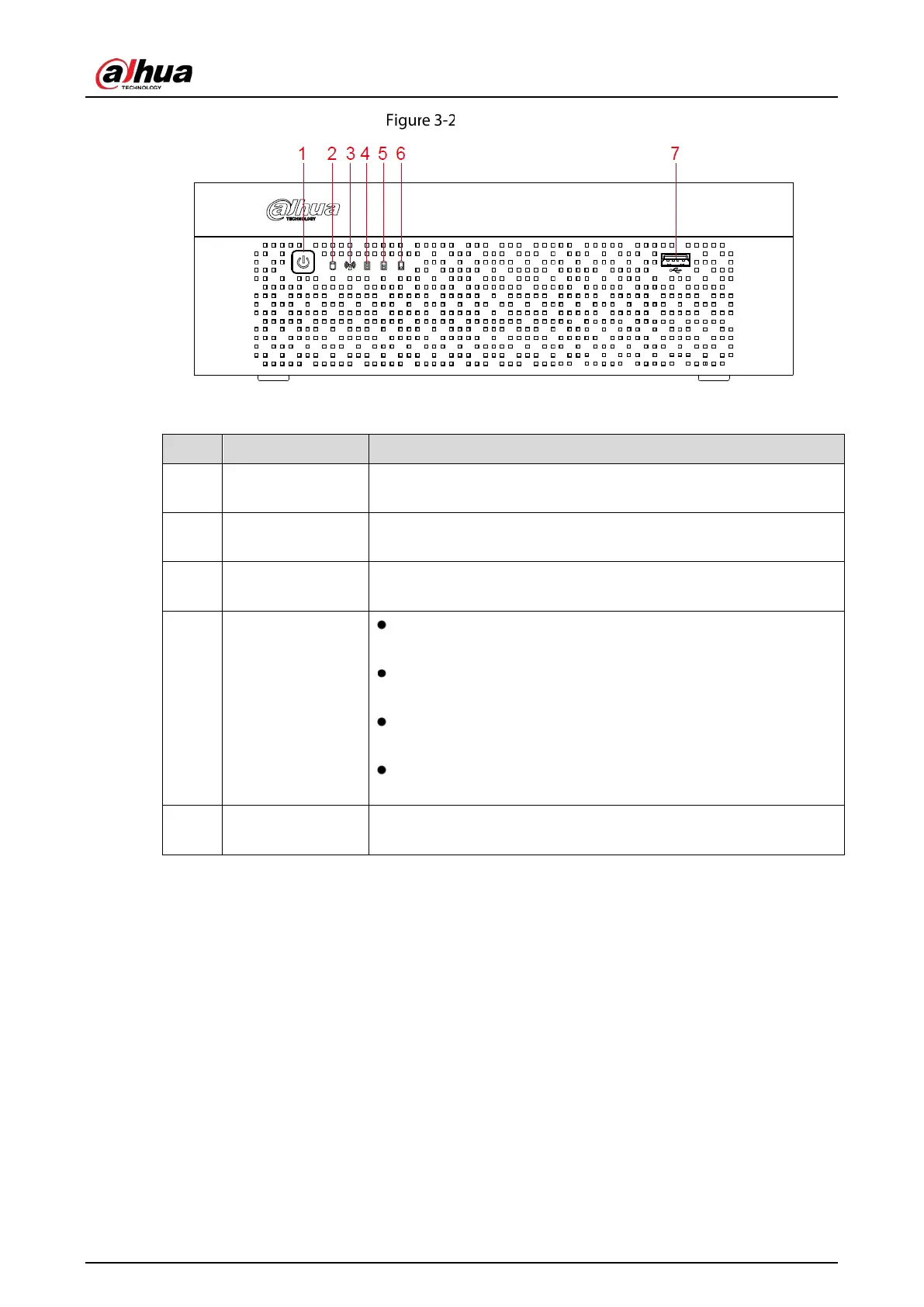

Front panel
Table 3-2 Front panel description
1 Power
Turns on/off the DVR. The indicator glows blue when the DVR is
turned on.
2
indicator
The indicator glows blue when the HDD is in malfunction.
3
indicator
The indicator glows blue when the network connection is
abnormal.
4, 5, 6
indicator
When the battery remains full or no less than sixty percent, the
No.4 indicator is on, and the No.5 and No.6 are out.
When the battery remains between thirty percent and sixty
percent, the No.5 indicator is on and the others are out.
When the battery remains between one percent and thirty
percent, the No.6 indicator is on and the others are out.
When the battery is exhausted, the DVR is turned off, or there is
no battery attached to the DVR, all the three indicators are out.
7 USB port
Connects to external devices such as USB storage device, keyboard,
and mouse.
