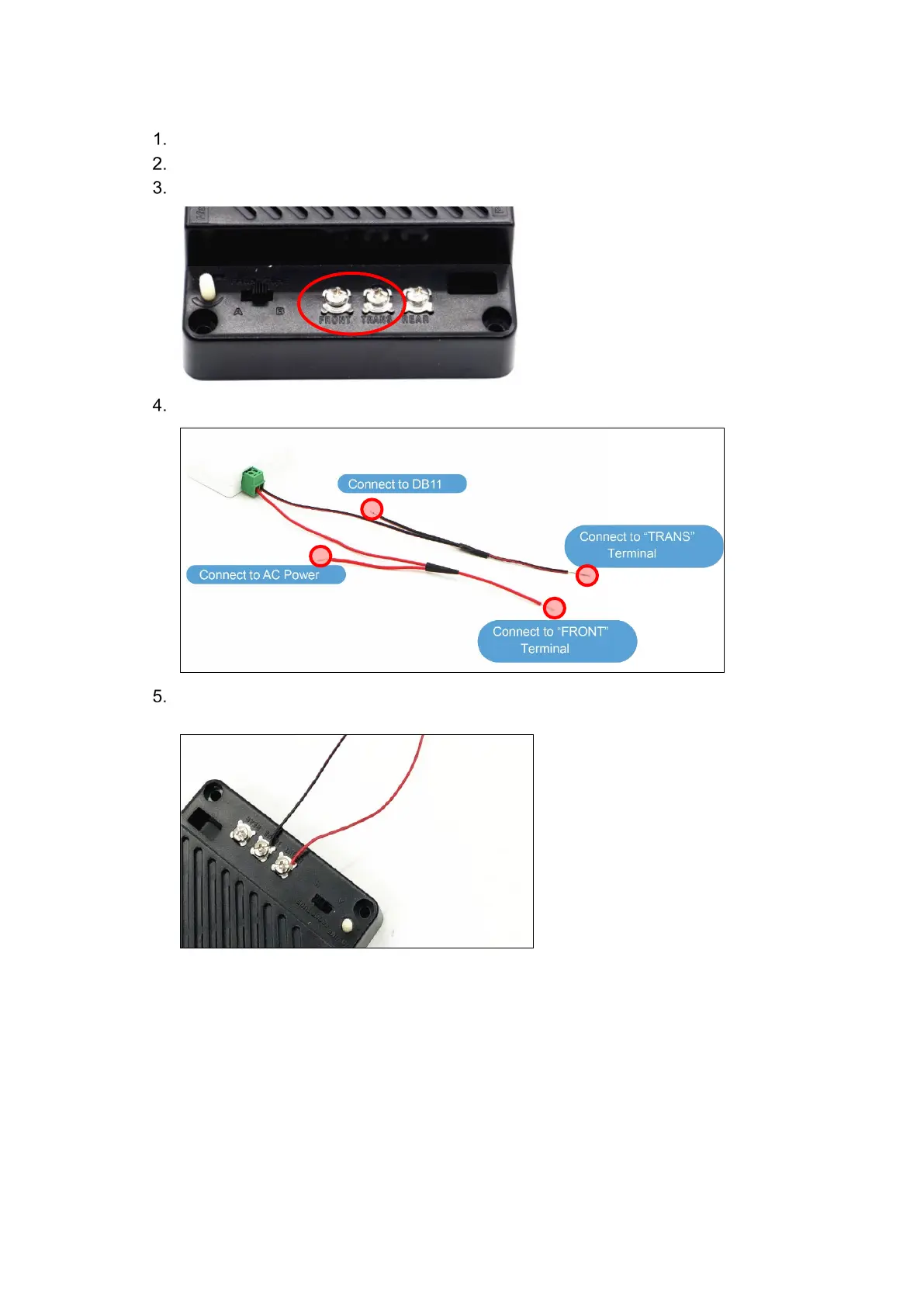

2.5.2 Wiring an Electrical Chime
Cut the power to the electrical door chime.
Remove the back cover from the electrical chime to expose the electrical terminals.
Disconnect the existing wires from the FRONT and the TRANS terminals.
Connect the wire harness to the input port on the Chime Kit.
Attach the end of the live wire to the TRANS terminal on the electric chime. Attach the
other wire to the FRONT terminal.
