6
Main Menu
Main Menu
To activate, press the menu button on the bottom left of the bezel. The sub-menus of the main
menu are: PC Menu, Picture menu, Audio menu, OSD menu, Function menu and Geometry menu.
Press the menu button to select the sub-menu item. The selected menu item will show a bordered
wireframe. Press the ▲▼ button to move among the secondary menu items of the sub-menu.

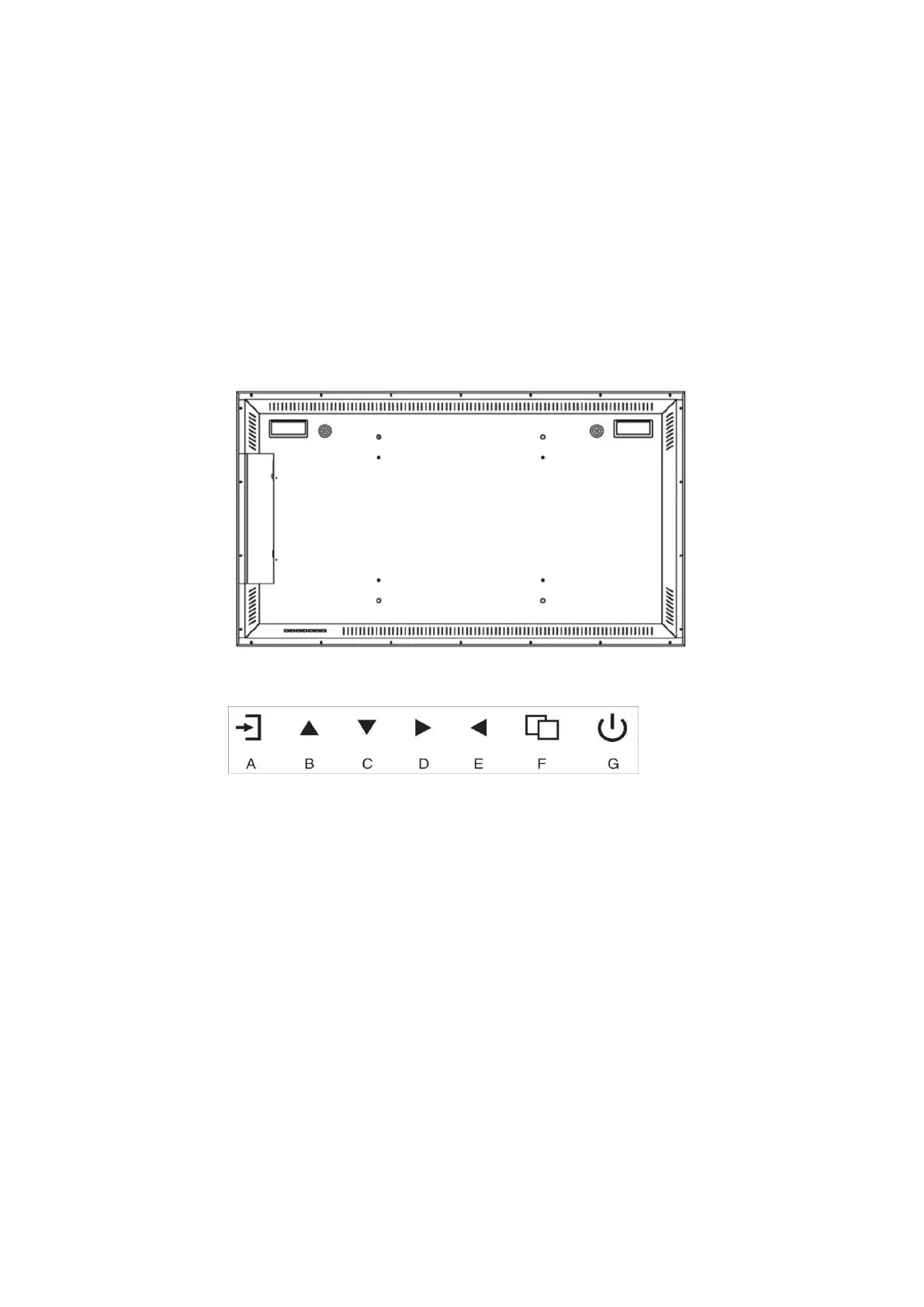

(7Key)
A. “Sourcebutton
Press the button to display all the signal channel menus.
B. “Upwardbutton
Press the button to move the cursor to the needed function.
Press the button to change the selected function in OSD menu item.
C. “Downwardbutton
Press the button to move the cursor to the needed function.
Press the button to change the selected function in OSD menu item.
D. “Rightwardbutton
Press the button to move the cursor to the needed function.
Press the button to change the selected function in OSD menu item.
E. “Leftwardbutton
Press the button to move the cursor to the needed function.
