Dahua DHI-KTA01 User Manual

Installation and Wiring 6

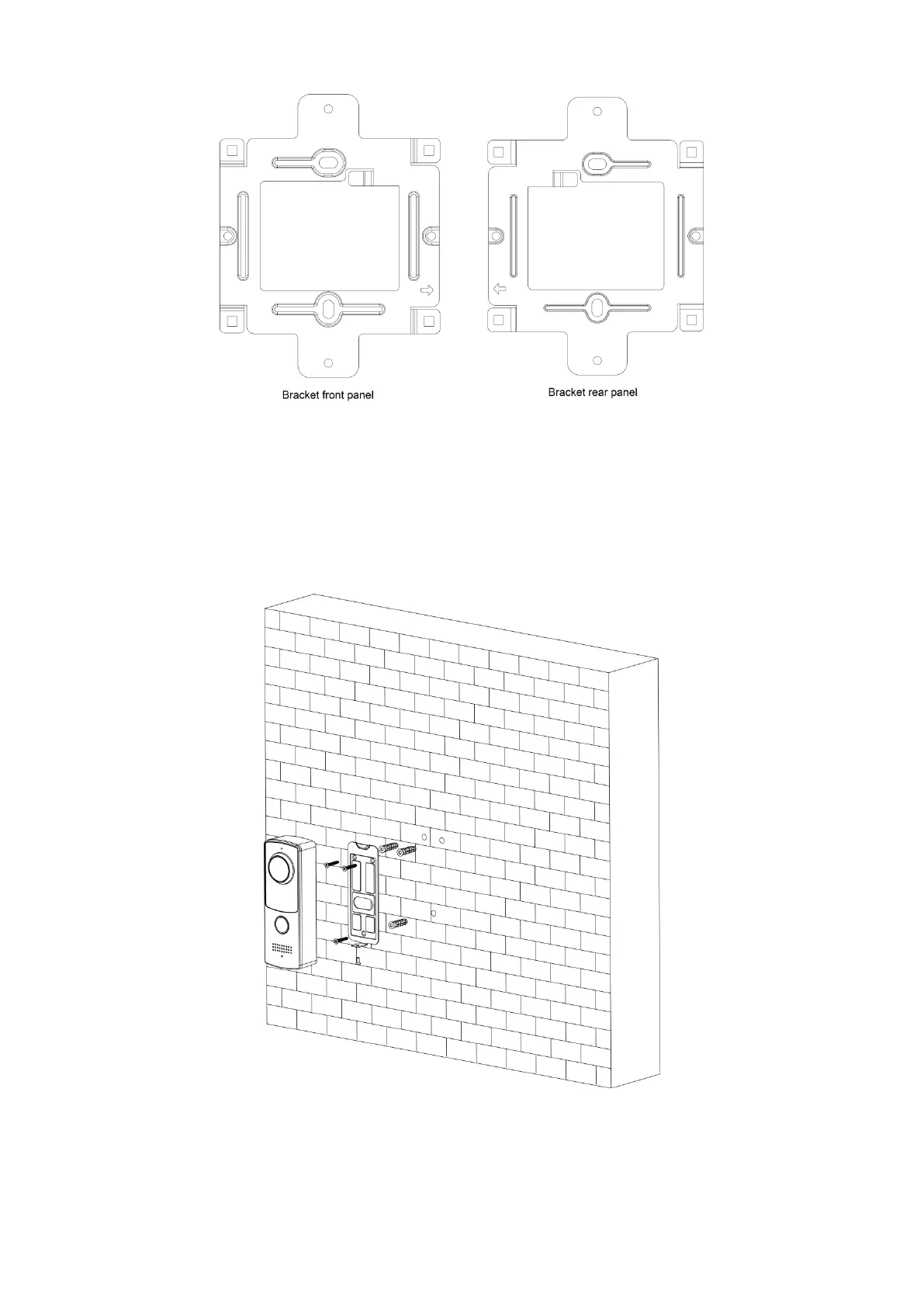

Bracket Figure 2-2
2.1.2 Installation of the Voice Intercom
You can install the voice intercom bracket on the wall, and then hang the voice intercom on the
bracket; you can also install the voice intercom cover on the wall, and then hang the voice
intercom on the cover. See Figure 2-3 and Figure 2-4.
Figure 2-3

Dahua DHI-KTA01 Specifications

General

Brand	Dahua
Model	DHI-KTA01
Category	Intercom System
Language	English
