Dahua DHI-KTA01 User Manual

Structure 3
No.
Icon
Description
can see the person at the voice intercom and talk to him/her.
Press the button, and you can view real-time video of one voice

intercom; press the button again, and you can view video of the second
intercom; press the button for the third time, and you can view video of
the analog camera.
5
If you hear the video intercom ringing, press the button, and the door near
which the voice intercom is installed will be opened.
6
–
LCD screen.
7
Power indicator.
8
Silent indicator. During communication, press – button until the silent
indicator turns off, the video intercom will be silent.
9
–
Microphone.
10
–
Microphone.
11
–
Built-in camera.
12
–
Call button.
13
–
Speaker.
14
–
Water outlet. Liquid in the speaker can flow away through the outlet.
1.5 Rear Panel

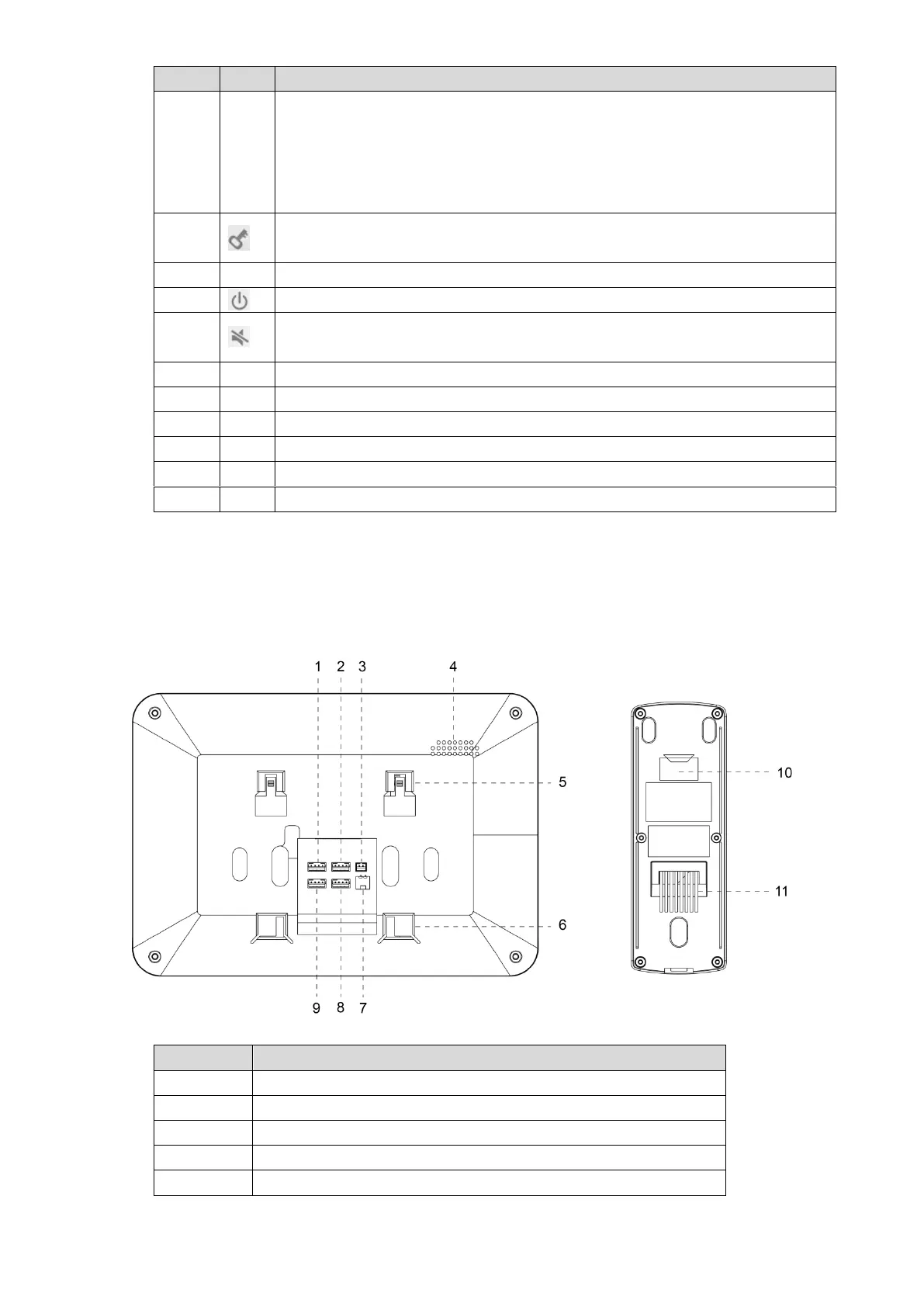

Rear panel Figure 1-3
Real panel description Table 1-2
No.
Description
1
From left to right: Power_1, VIDEO_1, AUDIO_1, and GND_1.
2
From left to right: Power_3, VIDEO_3, AUDIO_3, and GND_3.
3
From left to right: CAM_IN and GND.
4
Speaker.
5
Video intercom hanging slot.

Dahua DHI-KTA01 Specifications

General

Brand	Dahua
Model	DHI-KTA01
Category	Intercom System
Language	English
