Dahua DHI-KTP01(S) User Manual

7

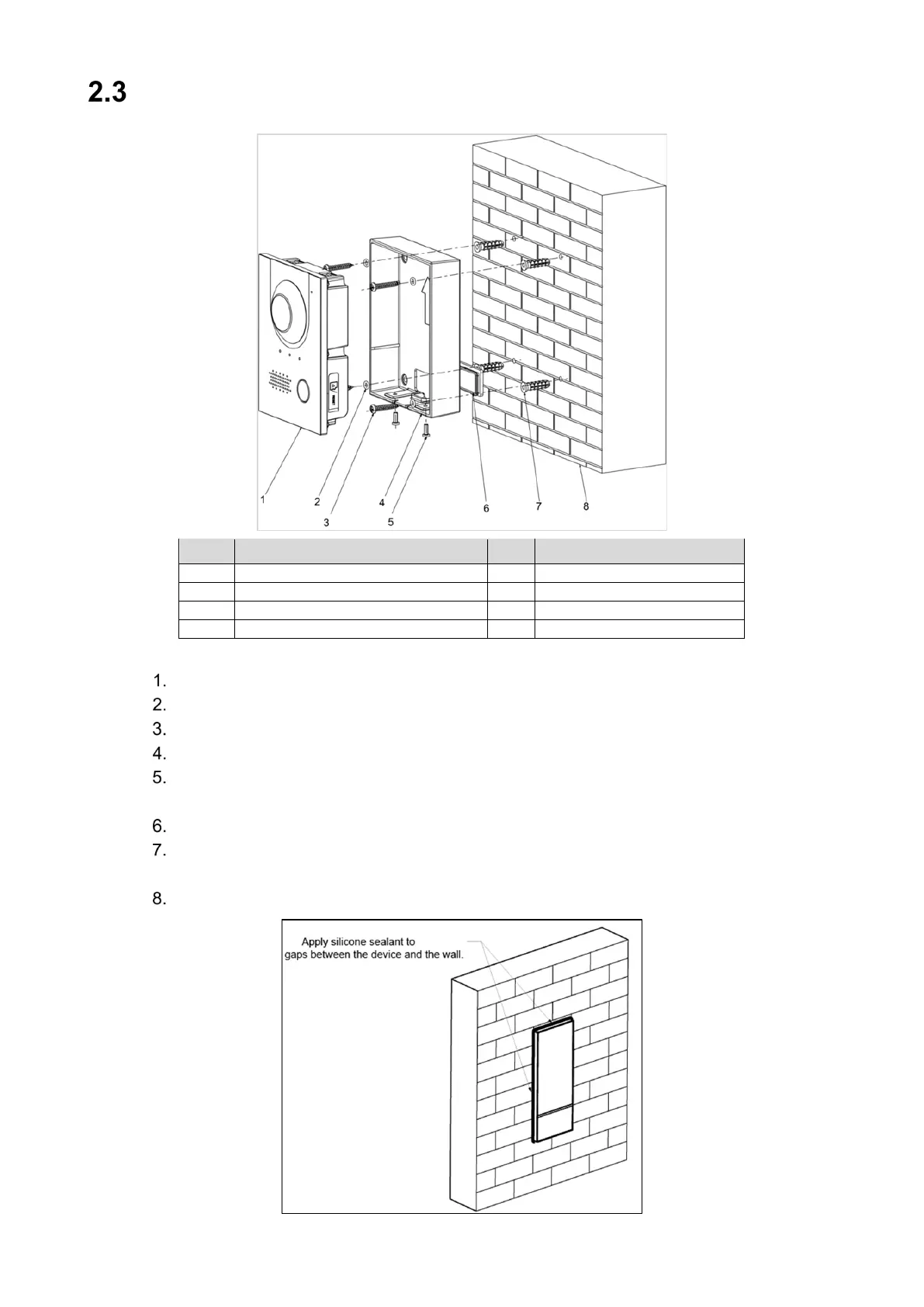

Surface-mount
Ref.
Name
Ref.
Name
1
VTO Outdoor Station
5
M3×8 Screws
2
Waterproof O-ring
6
Waterproof Pad
3
ST4×25 Self-tapping Screw
7
Expansion Screw
4
Surface-mount Box
8
Wall
Use the Surface-mount box as a guide and drill four holes into the installation medium.
Place the four expansion screws into the pre-drilled holes.
Install the waterproof pad to the rear of the surface mount box.
Place a waterproof O-ring on each ST4×25 self-tapping screw.
Install the mounting box on the wall by screwing the four ST4×25 self-tapping screws into
the expansion screws.
Place the VTO outdoor station into the surface mount box.
Secure the VTO outdoor station to the surface mount box by screwing the two M3×8
screws from the bottom of the surface mount box.
Apply silicone sealant to the gaps between the device and the wall.
