Dahua IPC-HFW2300R-Z - Framework and Dimensions

2
1.2 Framework and Dimension
Please refer to the following figure for dimension information. The unit is mm. See Figure 1-2 and
Figure 1-3.

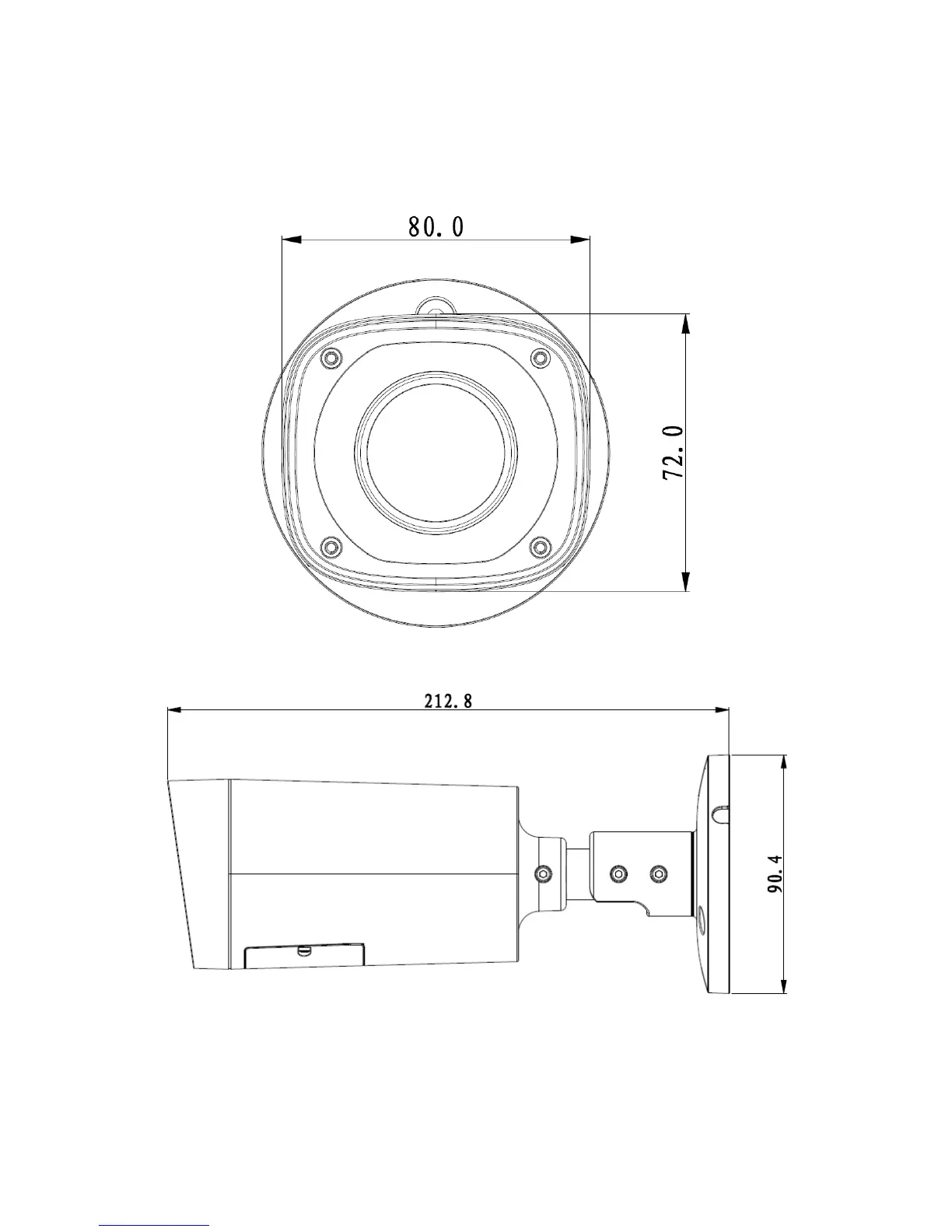

Figure 1-2 Dimension illustration 1
Figure 1-3 Dimension illustration 2
