Dahua IPC-HFW2300R-Z User Manual

3
2 Device Installation
Note:
Please make sure the installation surface can min support the 3X weight of the camera
and the bracket.
Step 1
Open accessories bag, take out installation position map and stick it to designated surface where
you will install the device (wall or ceiling).
Step 2
Dig a hole according to position of hole on installation position map.
Step 3
Open accessories bag, take out expansion bolts and insert them into the holes you just dug.
Step 4
Open accessories bag and take out the self-tapping screws. Aim the expansion bolts to the
installation holes on the device pedestal and fix the device on the installation surface (wall or
ceiling) with self-tapping screws.
Step 5
Plug external wiring of the device properly.

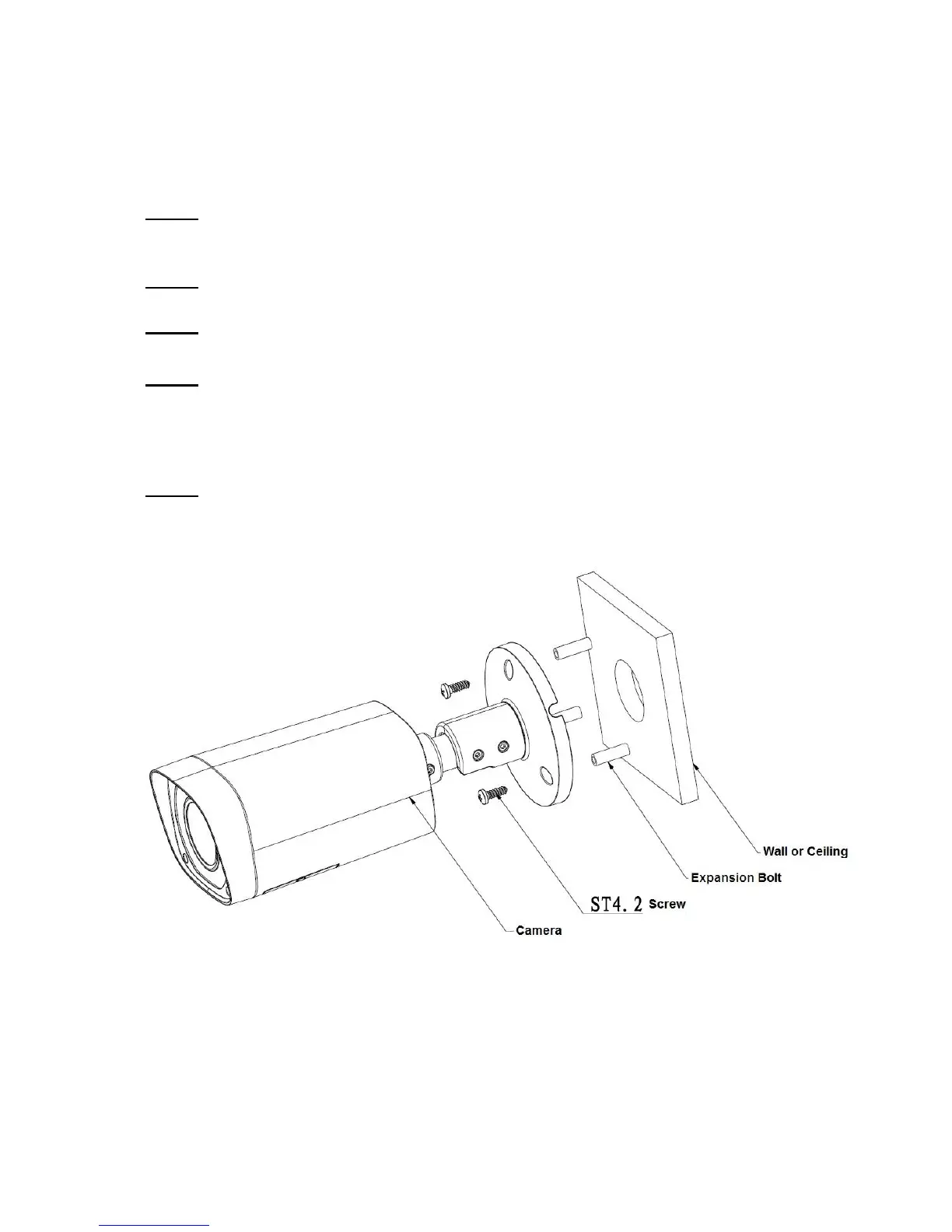

Figure 2-1
