Dahua IPC-HFW4100EP User Manual

4
2 Framework
2.1 Cable

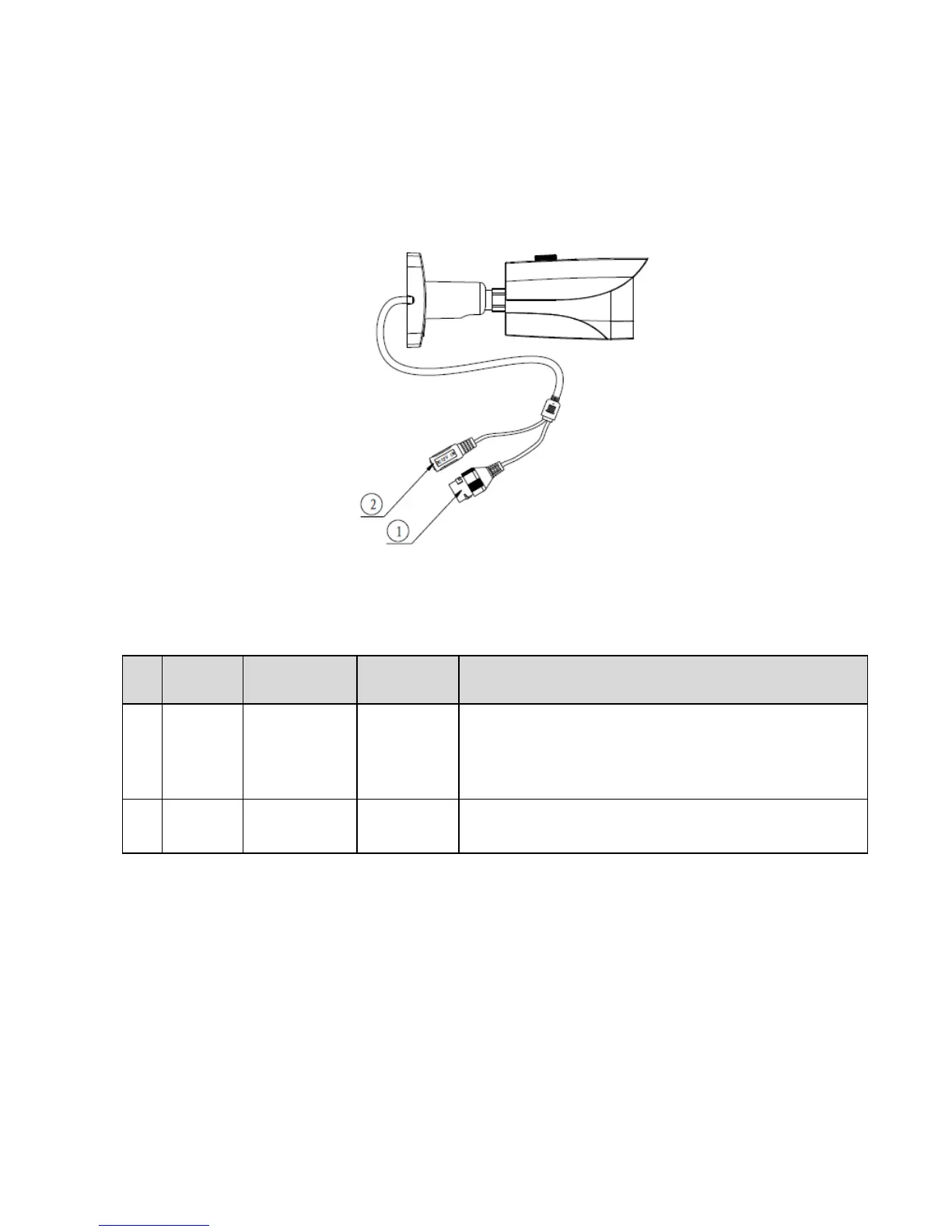

You can refer to the following figure for cable information. See Figure 2-1.
Figure 2-1 Cable
Please refer to the following sheet for detailed information.
No.
Port
Name
Function
Connection
Note
1
LAN
Network port
Ethernet
port
Connect to standard Ethernet cable.
Note:
Before making crystal head, pull the anti-dust cover
through network cable.
2
DC 12V
Power input
port
/
Power port. Input DC 12V.
2.2 Framework and Dimension
Please refer to the following figure for dimension information. The unit is mm. See Figure 2-2 and
Figure 2-3.

Dahua IPC-HFW4100EP Specifications

General

Brand	Dahua
Model	IPC-HFW4100EP
Category	Security Camera
Language	English
