User Manual of NVR2XXX(-P4-P8) Series NVR
117
9.1 Configuring General Settings
Purpose:
Network settings must be properly configured before you operate NVR over network.
Steps:
1. Enter the Network Settings interface.
Menu >Configuration>Network
2. Select the General tab.
NVR2104/NVR2208
NVR22XX-P

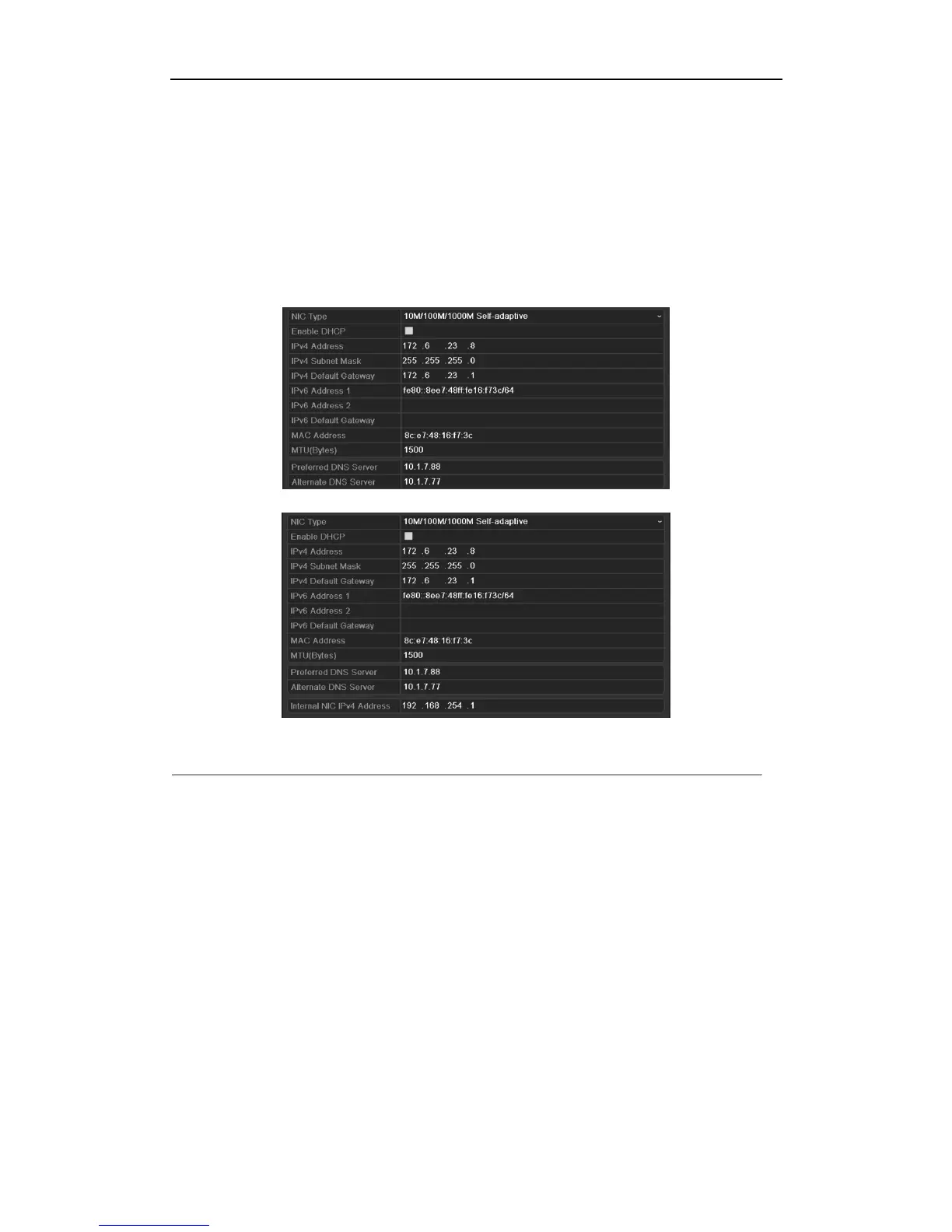

Figure 9. 1 Network Settings Interface
3. In the General Settings interface, you can configure the following settings: NIC Type, IPv4 Address, IPv4
Gateway, MTU and DNS Server.
If the DHCP server is available, you can click the checkbox of DHCP to automatically obtain an IP
address and other network settings from that server.
Note: For the NVR22XX-P series NVR, you need to configure the internal NIC address, so that IP
addresses are assigned to the cameras connected to the PoE or built-in switch interfaces.
Note: The valid value range of MTU is 500 ~ 9676.
4. After having configured the general settings, click Apply to save the settings.
