Figure 2. 17.

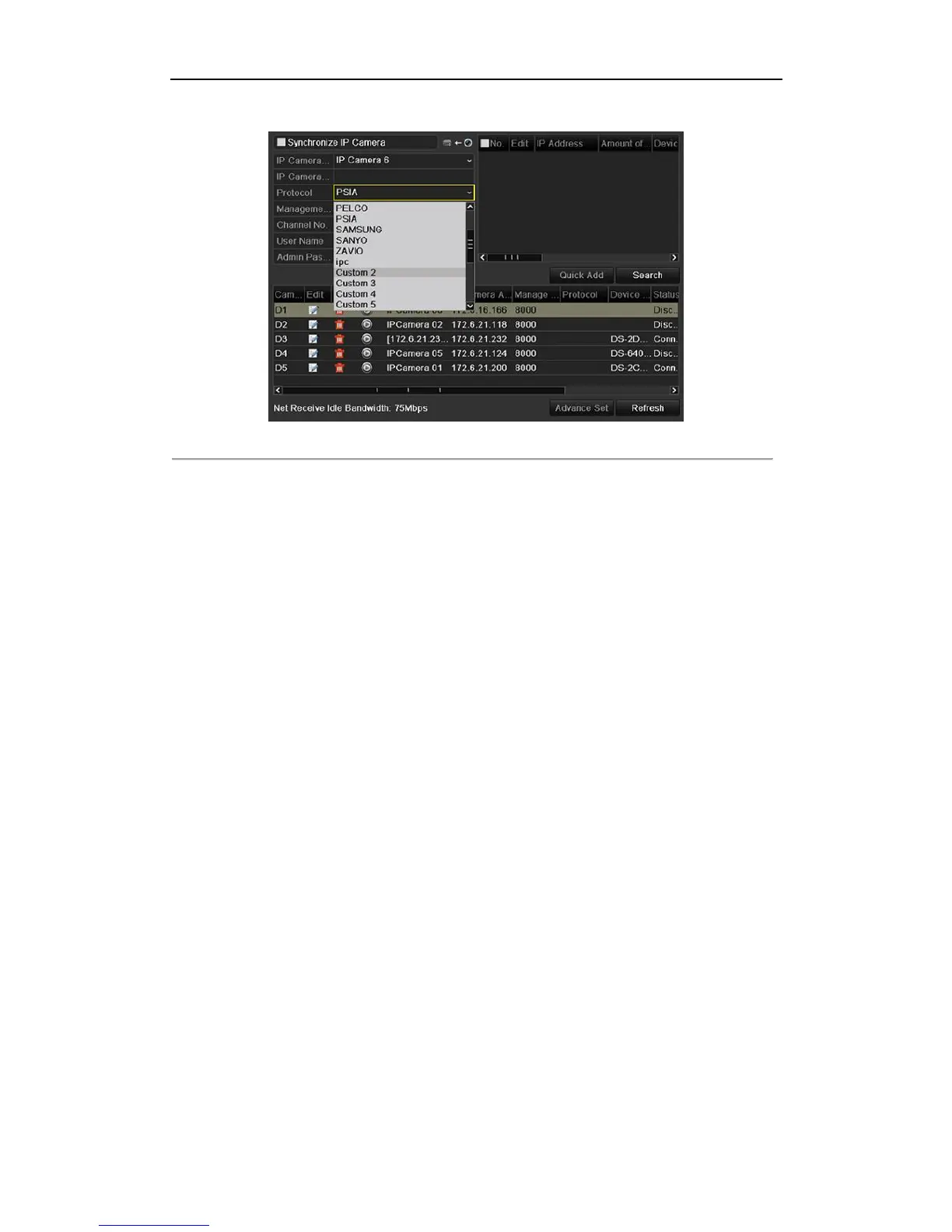

Figure 2. 17 Protocol Setting
3. Choose the protocols you just added to validate the connection of the network camera.
2.3.3 Editing IP cameras connected to the PoE interfaces
(Only for NVR2204-P4 & NVR2208-P8 & NVR2216-P8)
The PoE interfaces enables the NVR system to pass electrical power safely, along with data, on Ethernet cabling to
the connected network cameras.
The NVR2204-P4 & NVR2208-P8 & NVR2216-P8 provide 4 / 8 PoE interfaces which can connect to 4 / 8
network cameras directly; and if you disable the PoE interface, you can also connect to the online network cameras.
And the PoE interface supports the Plug-and-Play function.
Example:
As for NVR2204-P4 & NVR2208-P8 & NVR2216-P8 NVR, when you want to connect 1 online camera and
connect 3 network cameras via PoE interfaces, you must disable 1 PoE interface in the Edit IP camera panel.
To add Cameras for NVR supporting PoE function:
Before you start:
Connect the network cameras via the PoE interfaces.
Steps:
1. Enter the Camera Management interface.
Main menu> Camera
You can see the connected cameras are listed.
