Dahua NVR2 Series VR2104

User Manual of NVR2XXX(-P4-P8) Series NVR
12

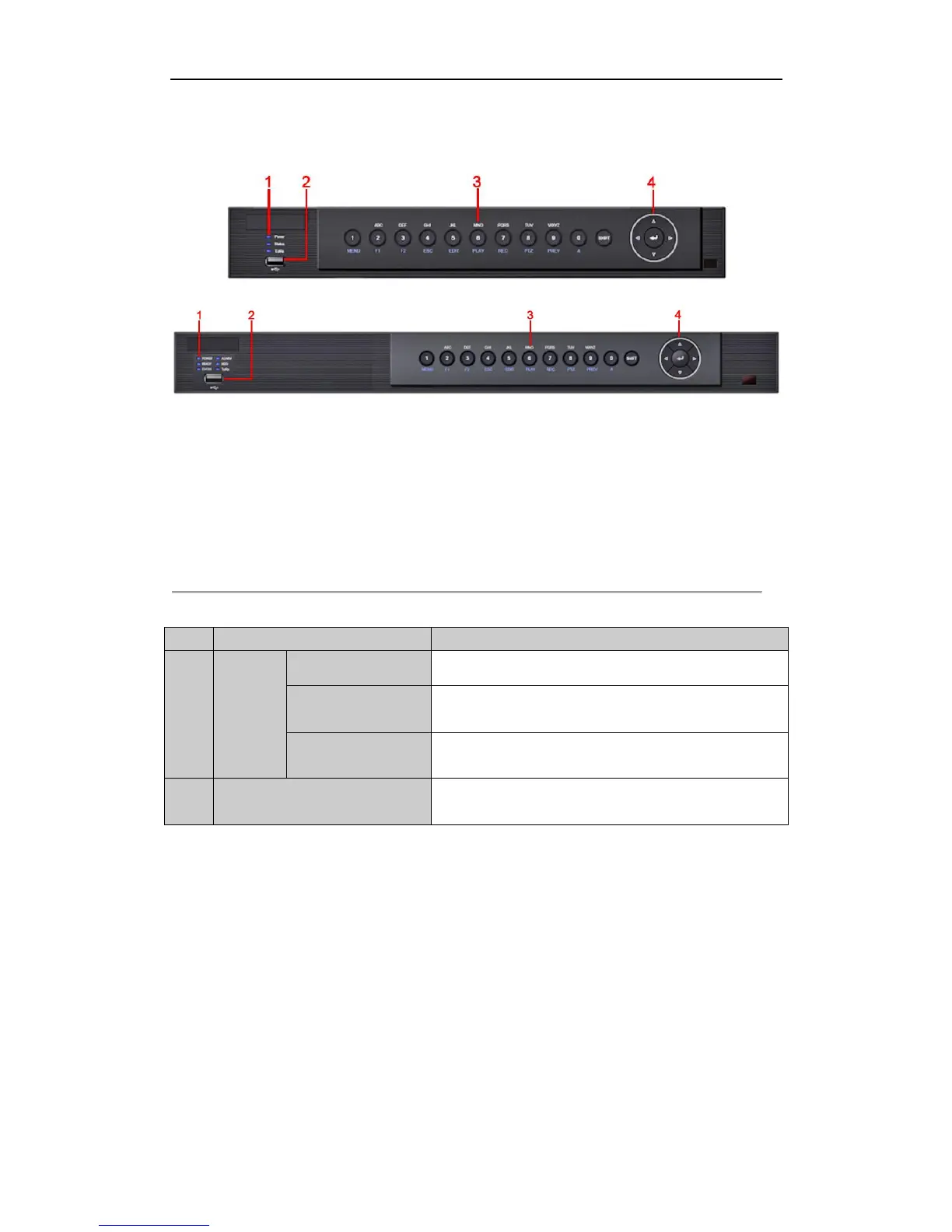

1.1 Front Panel
NVR2104
NVR2208 & NVR2204-P4 & NVR2208-P8
① Status Indicator(Power, Status, Tx/Rx)
② USB Interface
③ Digital panel
④ Operation panel
Figure 1. 1 and NVR22XX-P
Table 1. 1 Description of Front Panel
No.
Name
Description
1
Status
Indicator
Power
Power indicator turns yellow when system is running.
Status
Status indicator blinks red when data is being read from or
written to HDD.
Tx/Rx
TX/RX indictor blinks yellow when network connection is
functioning properly.
2
USB Interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
