Chapter 2 Installation
Here makes VTH1500AH as an example.
Step 1. Fix installation bracket on wall with four screws (ST3 x 18).

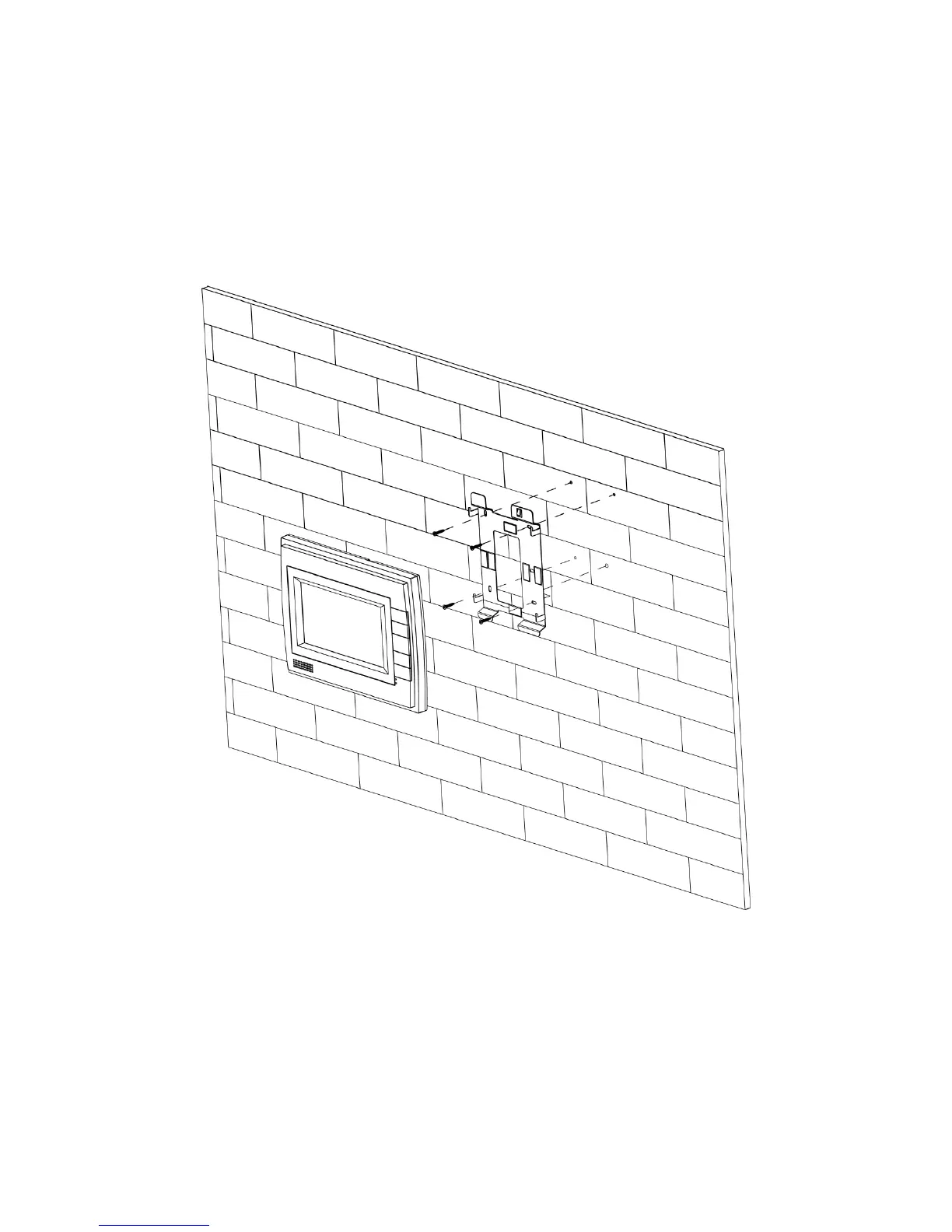

Step 2. Fix device onto bracket, with bucket. See Figure 2- 1.
Figure 2- 1
Note:
Device center to ground shall be 1400mm to 1600mm.
Try to avoid exposing VTH to bad environment, such as condensation, high temperature,
greasy dirt, dust, corrosion, direct sunlight and etc.
If there is abnormality after you plug in network cable, you should unplug it immediately
and unplug the device from power supply. You may plug in the device to power supply
after troubleshoot.
Device installation and test must be done by professional staff. If there is any malfunction
