Dahua VTO5110B

6

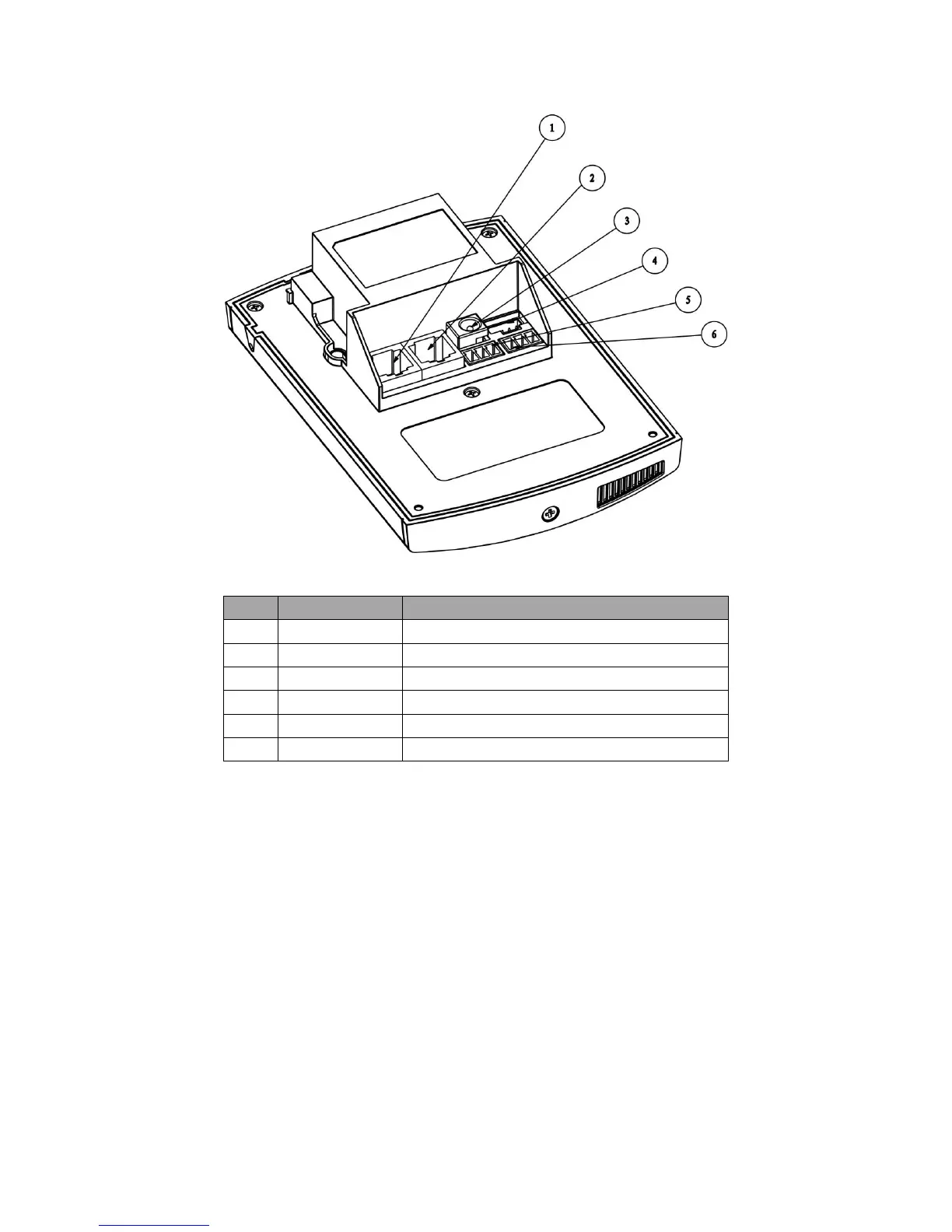

Figure 1- 5 VTO5x00Cx Series
No.
Port Name
Function
1
Network port 1
Connect to analog VTH.
2
Network port 2
Connect to analog VTH.
3
Power port
Connect to 24V DC power
4
Debugging port
For installation staff use
5
Green port 1
Connect to lock
6
Green port 2
Connect to door sensor and unlock button.
