2 Installation Guide

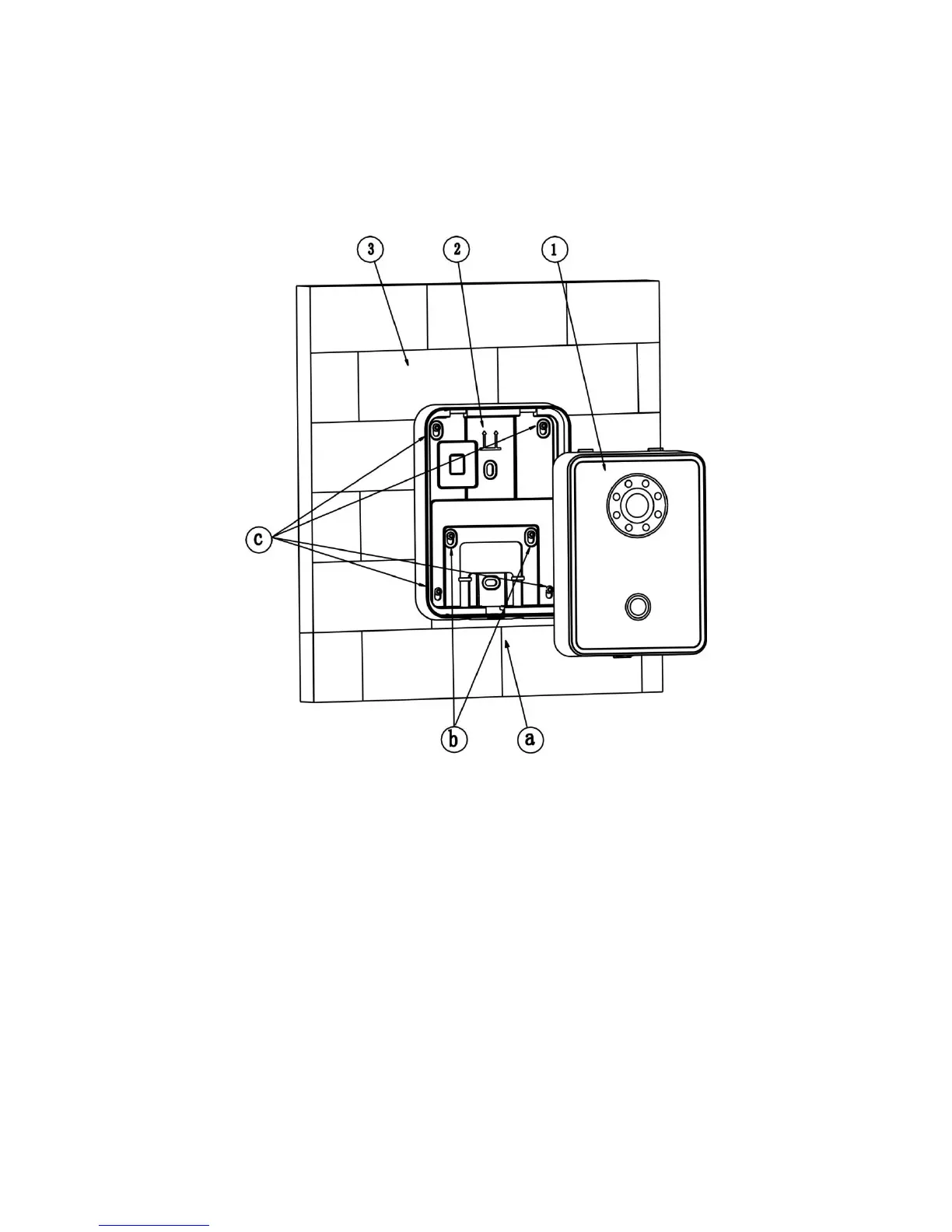

Installation guide of VTO is illustrated in Figure 2- 1 VTO5110B/BW.
Figure 2- 1 VTO5110B/BW
Installation step:
1. Fix installation holder onto wall:
a) Use the M4 screw accompanied with the VTO to fix holder onto the 86 box
(as b in Figure 2- 1 VTO5110B/BW);
b) In order to firm the VTO, use the ST3.0 screw accompanied with VTO to fix
the 86 box onto wall after locking the 86 box. (as c in Figure 2- 1
VTO5110B/BW);
2. Install 1 in Figure 2- 1 VTO5110B/BW onto the holder. Fasten edge and lightly push
its bottom edge.
3. After you complete the installation between VTO and holder, use the set screw
accompanied as a in Figure 2- 1 VTO5110B/BWto fix the VTO and its holder.
