Dahua VTO5110B User Manual

1

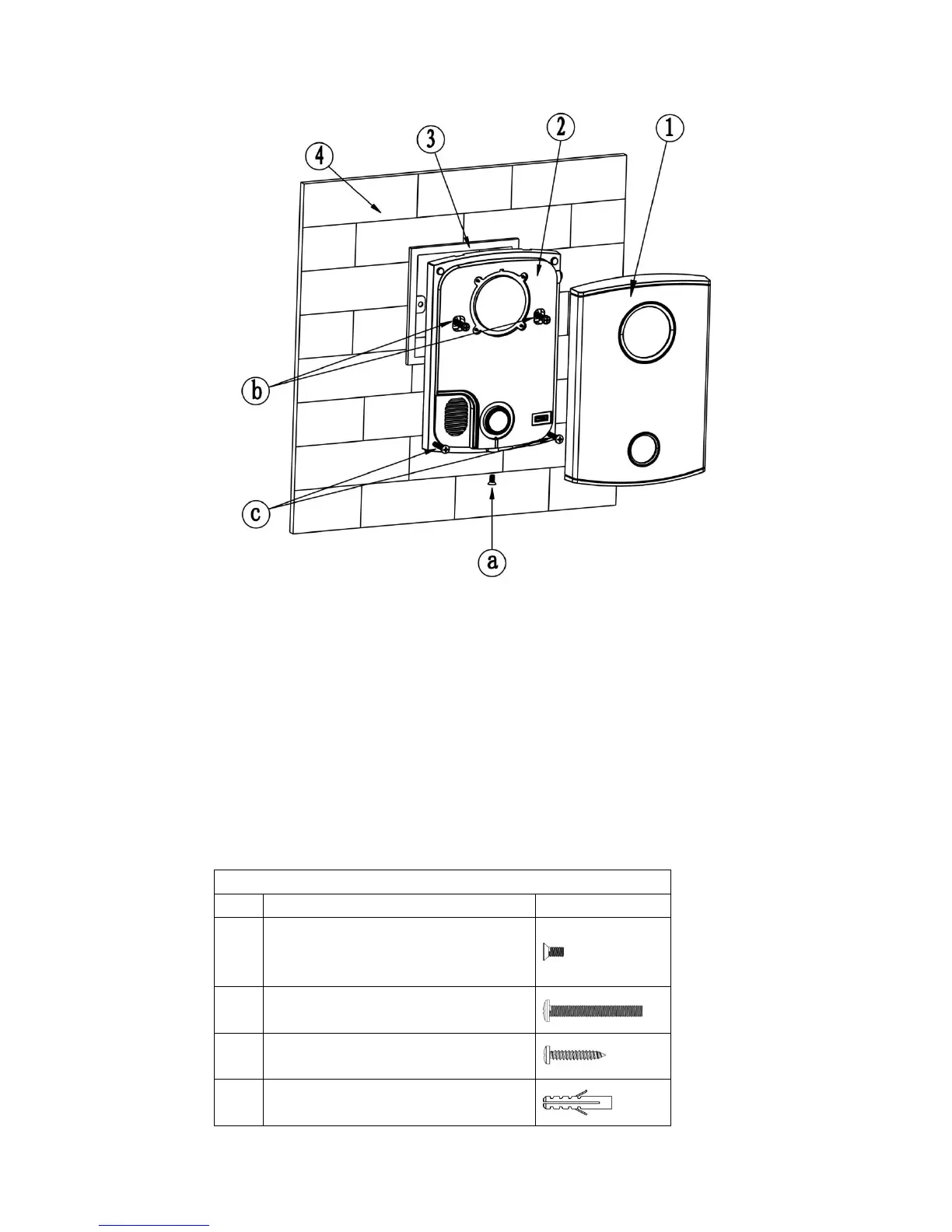

Figure 2- 2 VTO5x00Cx Series
Installation step:
1. Fix installation holder onto wall:
Use the M4 screw accompanied with the VTO to fix holder onto the 86 box (as 3
in Figure 2- 2 VTO5x00Cx Series);
2. B in Figure 2- 2 VTO5x00Cx Series is to strengthen firmness of VTO, use the ST3.0
screw accompanied with VTO to fix the 86 box onto wall after locking the 86 box.
(as c in Figure 2- 2 VTO5x00Cx Series);
3. Install decoration cover (as 1 in Figure 2- 2 VTO5x00Cx Series) onto 2, secure with
screw a.
Screw Illustration
No.
Name
Symbol
a
M3×8 cross recessed countersunk
head horizontal screw - galvanized
black
b
M4×30 cross recess head horizontal
screw
c
ST3×18 cross recess top
screw-nickel silver
d
Expansion pipe ￠6*30mm white
