Dahua XVR4108C User Manual

205
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
6
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
7
Network port
100M Ethernet port
8
A
RS485（ RS-485）
communication port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control devices
such as speed dome PTZ.
9
Power input port
Input 12V DC.
10
Power on-off button
Power on/off button.
11
GND
Ground end
2.2.9 HCVR5104H-V2/HCVR5108H-V2/HCVR5116H-V2 Series

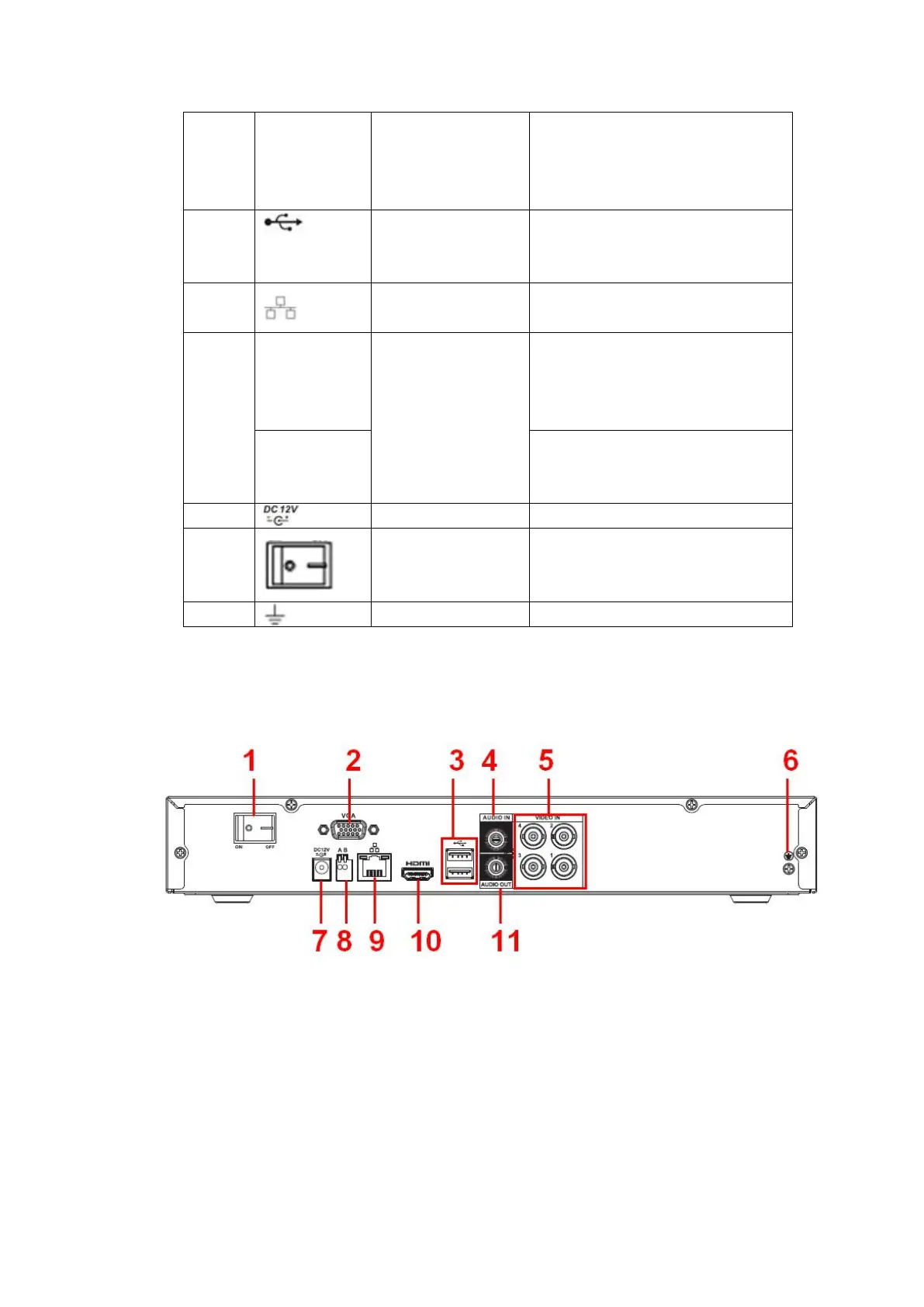

The HCVR5104H-V2 series rear panel is shown as below. See Figure 2- 23.
Figure 2- 23
The HCVR5108H-V2 series rear panel is shown as below. See Figure 2- 24.
