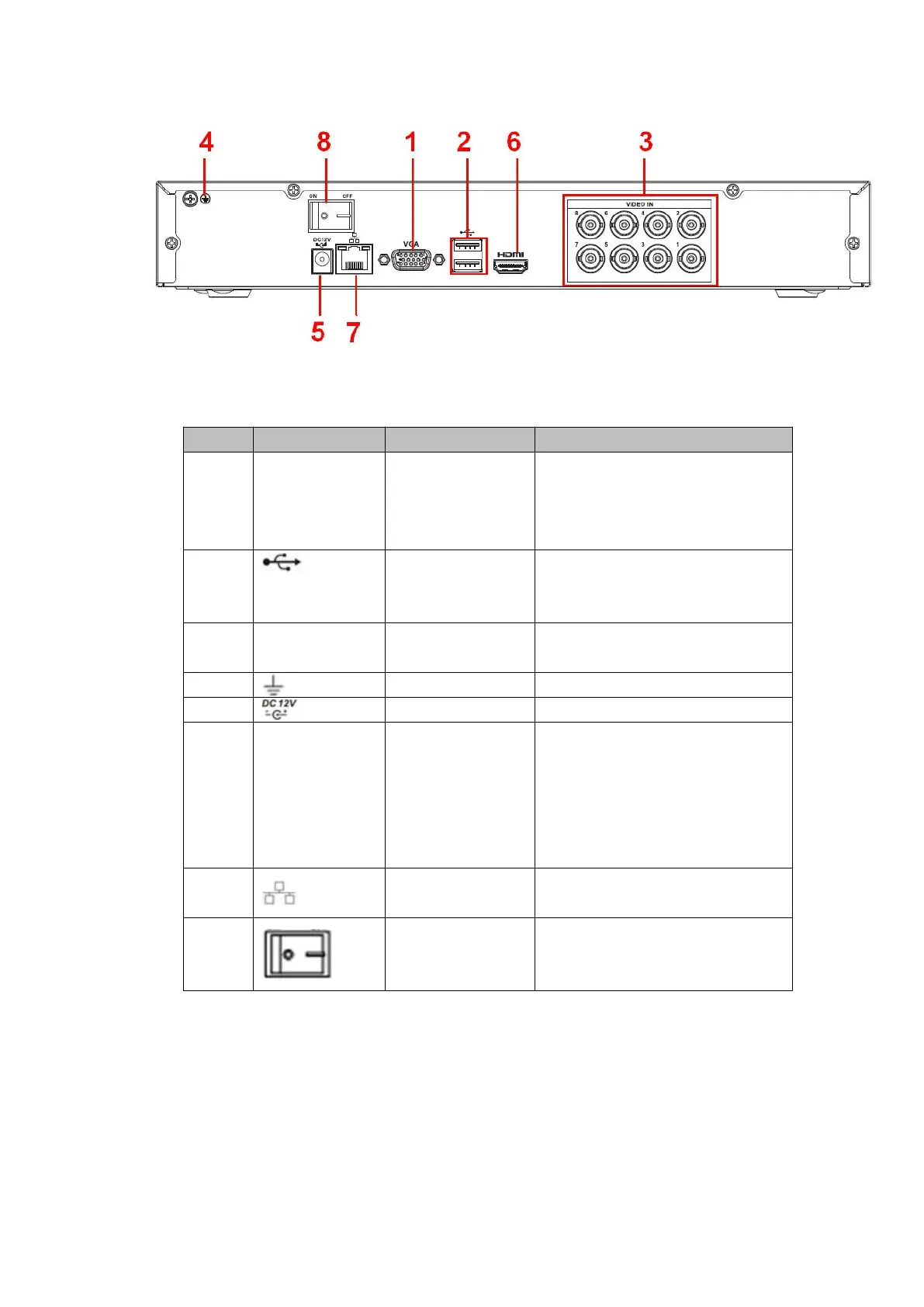

Figure 2- 39
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
2
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
3
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
4
GND
Ground end
5
Power input port
Input 12V DC.
6
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
7
Network port
100M Ethernet port
8
Power on-off
button
Power on/off button.
2.2.16 HCVR7104HE-V2/HCVR7108HE-V2 Series
The HCVR7104HE-V2 series rear panel is shown as below. See Figure 2- 40.
