Dahua XVR4108C User Manual

253
SN
Icon
Name
Function
6
VGA
VGA video
output port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
7
Power switch
Power on/off button.
8
GND
Ground port
9
AUDIO OUT
Audio output
port
Connect to sound box and etc to output audio signal.
10
A
RS485
communicatio
n port
RS485_A port. It is the cable A. You can connect to the
control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the control
devices such as speed dome PTZ.
11
Power socket
Power input port
2.2.35 HCVR72XXAN-4M Series

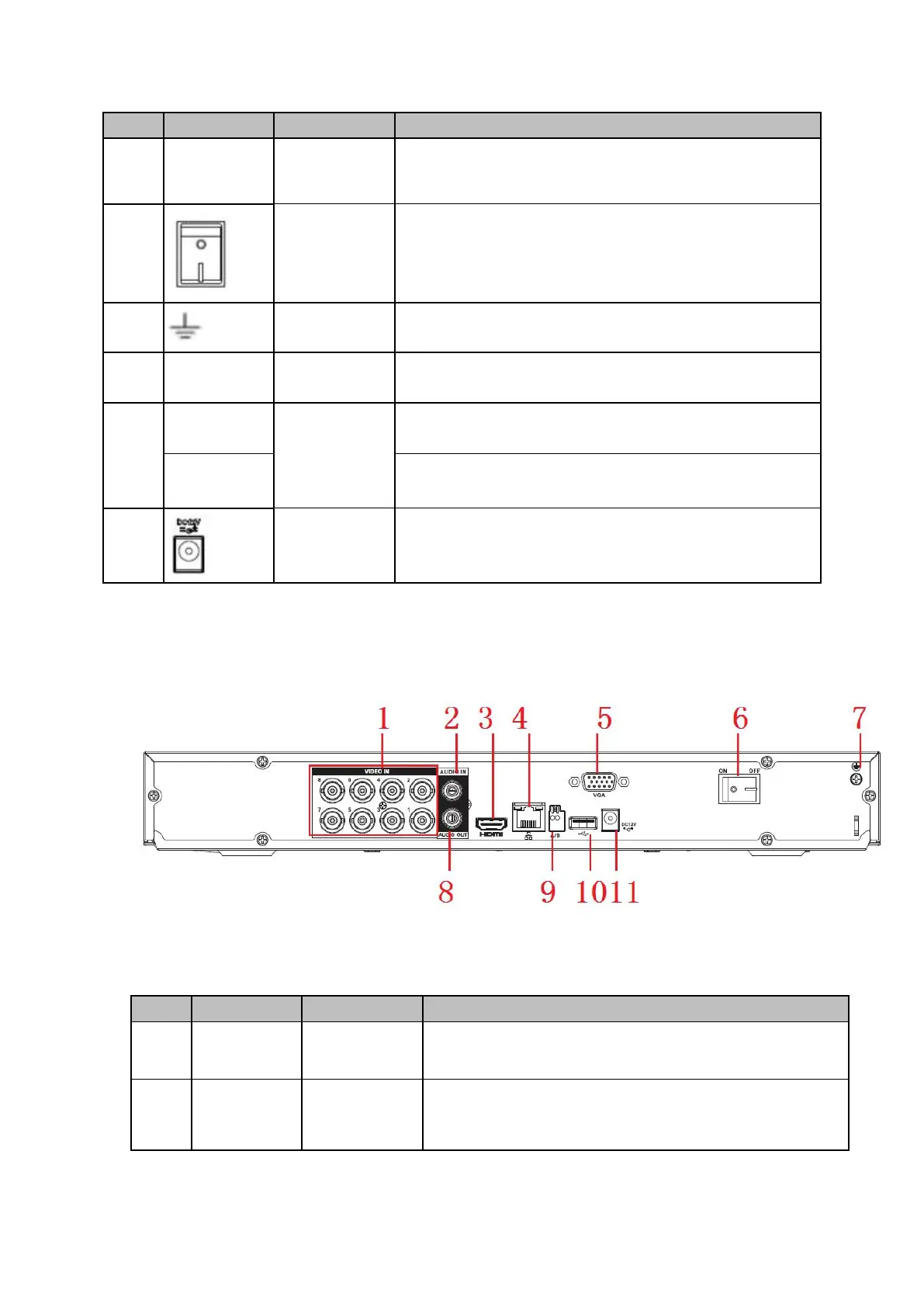

The rear panel is shown as in Figure 2- 83.
The following figure is based on the HCVR7208SAN-4M series product.
Figure 2- 83
Please refer to the following sheet for detailed information.
SN
Icon
Name
Function
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
AUDIO IN
Audio input
port
Connect to microphone and etc to input signal.
