7. Replacement Parts for Various Wire Diameters
7.1 Replacement Parts for Various Wire Diameters of Torch
Following parts shall be changed depending on
the wire diameter in use.
【Torch related】
(1) Tip
【Coaxial power cable】
(2) Coil liner
(3) Outlet guide
【Wire feeding unit】
(4) Feeding roll
(5) Inlet guide
Use the parts suitable for each wire diameter
when changing the welding wire.
The parts are listed as follows.

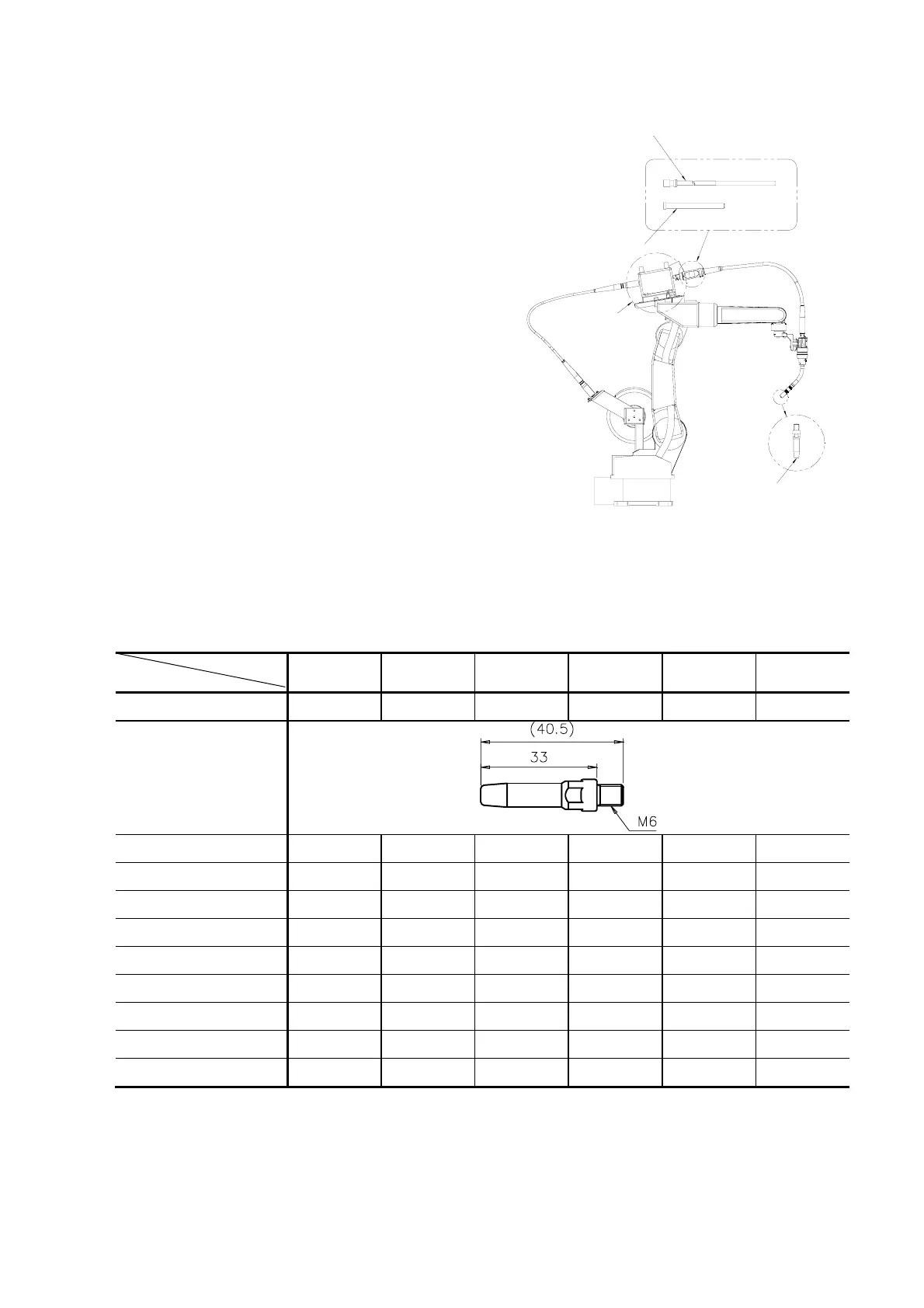

Fig.7.1 Replacement parts for various wire
diameters of torch
Note) For the feeding roll, see the instruction manual for wire feeding unit.
We provide options for the nozzle. See the Table 7.3 for more details.
Table 7.1 Combination of contact tip
Wire dia.
Torch model
φ0.8 φ0.9 φ1.0 φ1.2 φ1.4 φ1.6
Design No. L7250B01 L7250B02 L7250B03 L7250B04 L7250B05 L7250B06
Outline drawing
RT3500S
△ △ △ ● △ △
RT3500H
△ △ △ ● △ △
RT3500L
△ △ △ ● △ △
RT5000S
△ △ △ ● △ △
RT5000H
△ △ △ ● △ △
RT5000L
△ △ △ ● △ △
RTW5000S(*)
‐ ‐ ‐ △ △ △
RTW5000H(*)
‐ ‐ ‐ △ △ △
RTW5000L(*)
‐ ‐ ‐ △ △ △
(∗) Mounting of a M6 contact tip on the RTW5000 Series torch requires a M6 tip nut
(L10302C02) separately.
● Standard
△ Option
Outlet guide
Liner
Feeding roll
(Refer to Wire feeding unit manual)
Contact tip
