－36－
Table 7.2 Combination of contact tip (M8)
Wire dia.
Torch model
φ1.2 φ1.4 φ1.6
Design No. L10361B04 L10361B05 L10361B06

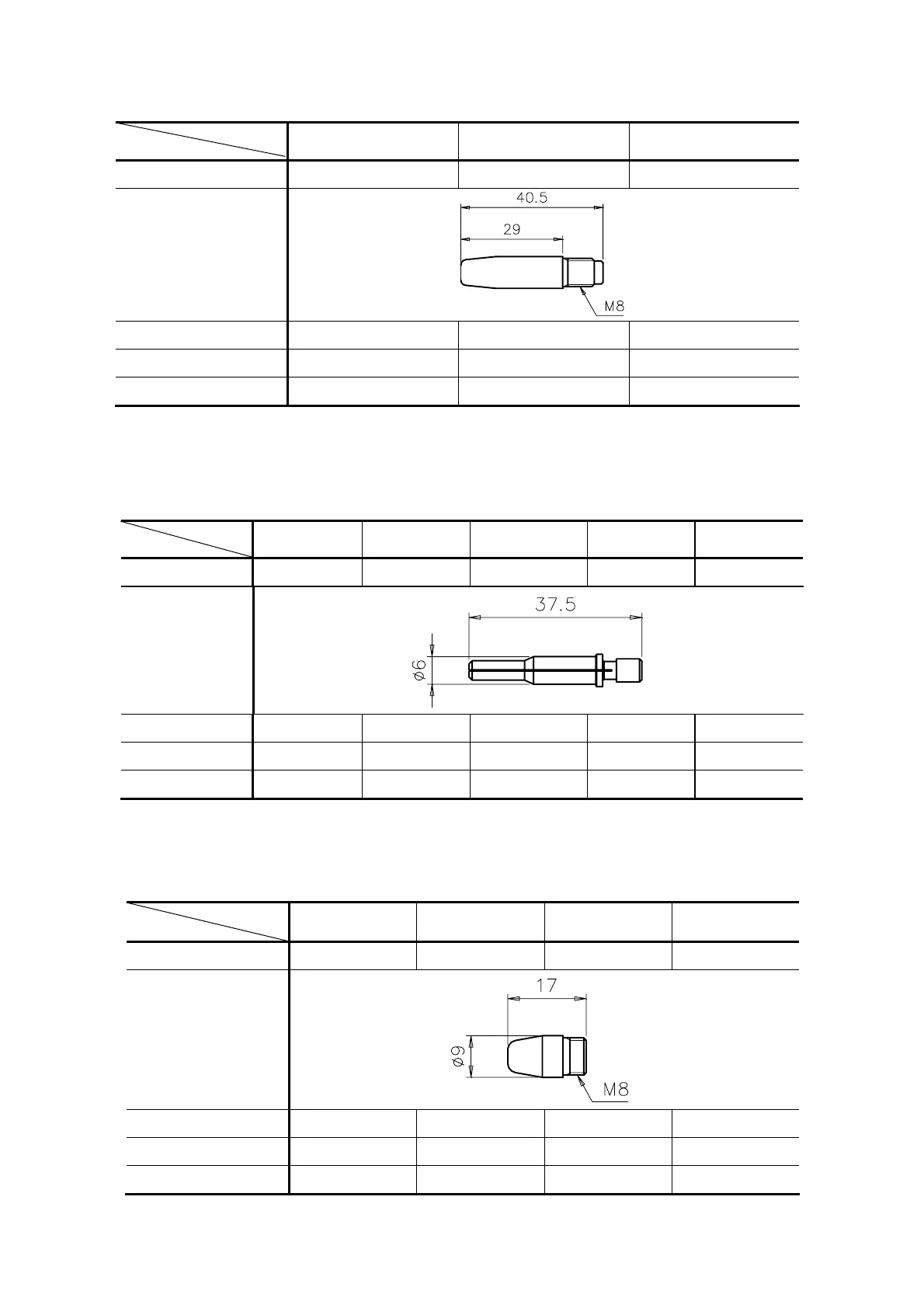

Outline drawing
RTW5000S
△ △ ●
RTW5000H
△ △ ●
RTW5000L
△ △ ●
Table 7.3 Combination of collet tip
Wire dia
Torch model
φ0.9 φ1.0 φ1.2 φ1.4 φ1.6
Design No. L10669C02 L10669C03 L106669C04 L10669C05 L10669C06
Outline drawing
RZ3500S
△ △ ● △ △
RZ3500H
△ △ ● △ △
RZ3500L
△ △ ● △ △
Table 7.4 Combination of tip holder
Wire dia
Torch model
φ0.9～1.0 φ1.2 φ1.4 φ1.6
Design No. L10669F01 L10669F02 L10669F03 L10669F04
Outline drawing
RZ3500S
△ ● △ △
RZ3500H
△ ● △ △
RZ3500L
△ ● △ △
● Standard
△ O
p
tion
● Standard
△ O
p
tion
● Standard
△ O
p
tion
